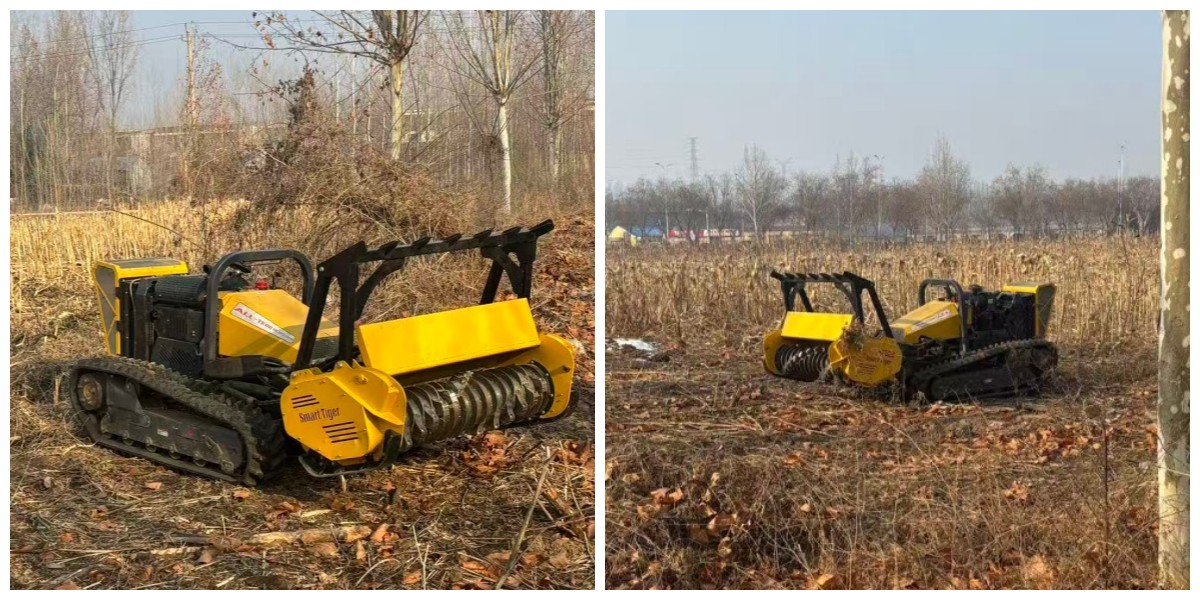

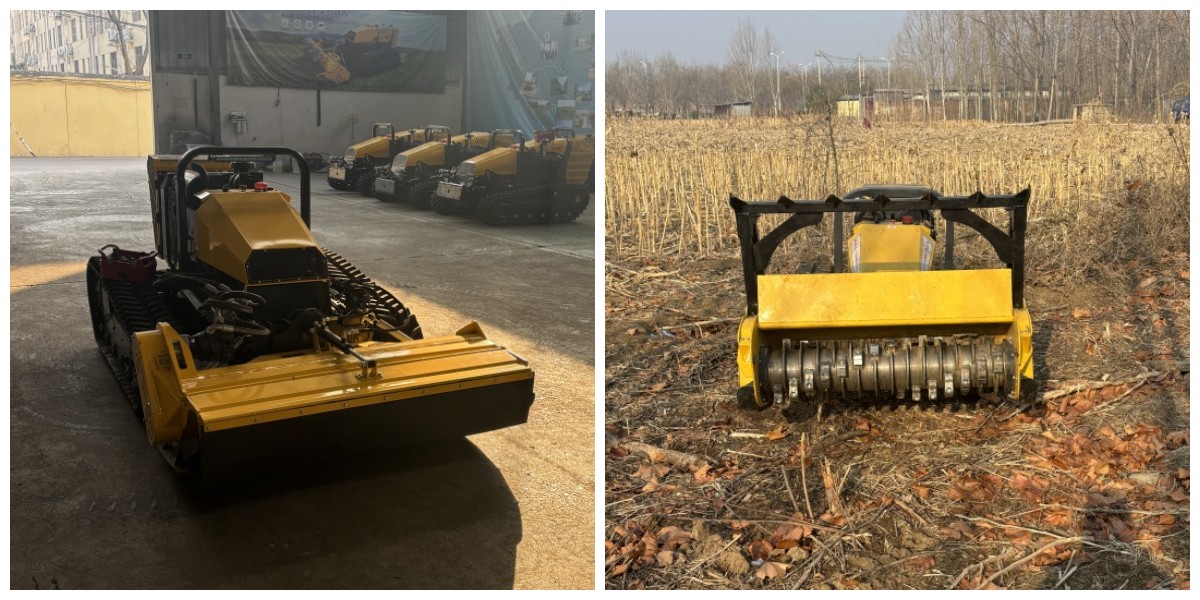

Remote-controlled robot suitable for forest clearing
Core Advantages Analysis of HYZH-40 Forest Shrub and Weed Clearing Machine
In the development and management of Russia's vast forest resources, efficient, durable, and complex terrain-adaptable shrub and weed clearing equipment is crucial for improving operational efficiency and reducing labor costs. The HYZH-40 Forest Shrub and Weed Clearing Machine, with its precise parameter configuration and comprehensive performance optimization, specifically addresses the core pain points of shrub and weed clearing in forest scenarios, providing international B2B buyers with a reliable and efficient operational solution. Below, combined with the core parameters of the equipment, the core advantages in forest shrub and weed clearing scenarios are elaborated in detail.
I. Powerful Power System for Efficient Continuous Operation
In forest scenarios, shrubs have a high degree of lignification and weeds are dense, placing strict requirements on the stability and continuity of the equipment's power output. The HYZH-40 is equipped with a well-known YANMAR engine, adopting a diesel direct injection fuel supply method, with a rated power of up to 28.2Kw and a maximum torque of 107.1Nm. It can easily cut shrub branches with a diameter of up to 100mm, efficiently breaking through the operational resistance of high-density weeds.
The equipment is equipped with a 28L large-capacity fuel tank. Combined with the energy-saving characteristics of the diesel engine, it can achieve long-term continuous operation, greatly reducing the time cost of frequent refueling in the forest and adapting to the large-scale operation needs of Russia's vast forests. At the same time, it adopts an oil-air hybrid cooling system, which can effectively balance the operating temperature of the engine and hydraulic system. Even in high-temperature summer or long-term high-load operation scenarios, it can ensure stable operation of the equipment and avoid fault shutdown caused by overheating.
II. Precise Control and Flexible Steering for Complex Forest Terrain
Russia's forest terrain is complex, with many steep slopes, gullies, and irregular operation areas, placing extremely high requirements on the control precision and terrain adaptability of the equipment. The HYZH-40 adopts a hydrostatic precision control system and skid steering design, supporting in-place steering function. Cooperating with stepless speed regulation of 0-4Km/h operation speed and 0-10.2Km/h transfer speed, it can flexibly adjust the operation rhythm, shuttle freely in narrow forest passages, and accurately avoid obstacles such as trees and rocks.
The equipment is equipped with a 2.4G remote control system, with an effective operating distance of more than 150m. Operators can remotely control the equipment in a safe area, avoiding threats to personal safety from the complex forest environment. The remote control function also covers the opening and closing of the attachment front cover and parking operation. Combined with the knob-type on-site parking and electronic handbrake functions, it achieves dual convenience of operation and safety control. In addition, the proportional joystick supports direction switching, which can flexibly switch the front and rear operation directions of the equipment according to operation needs, realizing forward and backward operations without U-turn, and greatly improving the efficiency of forest operations.
III. Super Strong Terrain Adaptability to Break Through Complex Operation Limitations
Targeting the characteristics of Russia's forests with many steep slopes and wetlands, the HYZH-40 has been specially optimized for passability and stability. The equipment is equipped with high-tooth rubber tracks, whose tooth height is twice that of ordinary tracks on the market. It has extremely strong grip and friction, can stably adapt to 55° steep slope operation scenarios, and effectively prevent slipping on wetland and muddy roads, taking into account the protection of forest vegetation and the traffic capacity of the equipment.
In terms of terrain adaptability parameters, the equipment's vertical obstacle crossing height reaches 500mm, wading depth is 500mm, and ground clearance is 170mm, which can easily cross forest gullies, raised rocks, and waterlogged areas. It allows an operating inclination angle of 60° in any direction (after engine optimization), and the hydraulic system optimization achieves an allowable operating inclination angle of ≥80° in any direction. Cooperating with the attachment's ±10° terrain undulation adaptive function, it can closely fit irregular terrains such as slopes and depressions for operation, ensuring no dead corners in shrub and weed clearing. The compact size of 3230mm × 1450mm × 1420mm and self-weight of 1840kg further improve the flexibility and stability of the equipment in complex terrain, avoiding excessive compaction of forest soil.
IV. Efficient Operation Device and Intelligent Configuration to Improve Cleaning Quality and Convenience
The HYZH-40 is equipped with 27 tungsten steel operation tools. The high hardness and wear resistance of tungsten steel can effectively extend the service life of the tools, cope with the wear of hard shrubs and weeds in the forest, and reduce the cost of later accessory replacement. The tool rotation speed can reach 2500rpm, supporting 0-100% stepless adjustable forward and reverse functions. It can flexibly adjust the operation intensity according to the thickness of shrubs and density of weeds, not only efficiently cutting thick branches but also finely cleaning surface weeds. Combined with a 1200mm working width, it achieves dual improvement of operation efficiency and cleaning quality.
The forearm lifting height range of the equipment is -200mm to 500mm, which can accurately adjust the operation height to adapt to the cleaning needs of shrubs and weeds of different heights. At the same time, it supports a topsoil backfilling depth of 20mm, which can quickly level the ground after cleaning, laying a foundation for subsequent forest tending, afforestation and other operations. The hydraulic system adopts a combined design of piston pump + gear pump, with a hydraulic flow rate of 84L/min, providing sufficient power for the operation device, ensuring stable operation and strong cutting of the tools, and further enhancing operation stability.
V. Comprehensive Safety Guarantee and Durable Design to Reduce Long-Term Operation Costs
For international B2B operation scenarios, the safety and durability of equipment directly affect long-term operation benefits. The HYZH-40 adopts multiple safety designs. The dual guarantee of electronic handbrake and parking switch effectively prevents the equipment from sliding during operation on steep slopes and inclined planes, avoiding safety accidents caused by misoperation. The LED headlight design can meet the operation needs in low-light environments in the forest in the morning and evening, expanding the operation time window.
The equipment adopts an overall high-strength structure design, combined with durable accessories such as tungsten steel tools and high-tooth rubber tracks, which can resist the impact and wear of the complex forest environment and extend the service life of the equipment. Each unit is equipped with 2 built-in rechargeable lithium batteries, supporting self-charging function, ensuring the continuous and stable operation of the remote control system and electronic components without frequent battery replacement. The perfect performance configuration and durable design greatly reduce the frequency of later equipment maintenance and accessory replacement, providing Russian customers with long-term and stable operation guarantee and improving return on investment.
In summary, the HYZH-40 Forest Shrub and Weed Clearing Machine perfectly meets the large-scale shrub and weed clearing needs in Russia's complex forest scenarios through its core advantages of strong power, precise control, super strong terrain adaptability and comprehensive safety guarantee. In terms of operation efficiency, operational safety and long-term operation costs, it can provide international B2B buyers with a cost-effective solution, helping to improve the quality and efficiency of Russia's forest resource management work.
