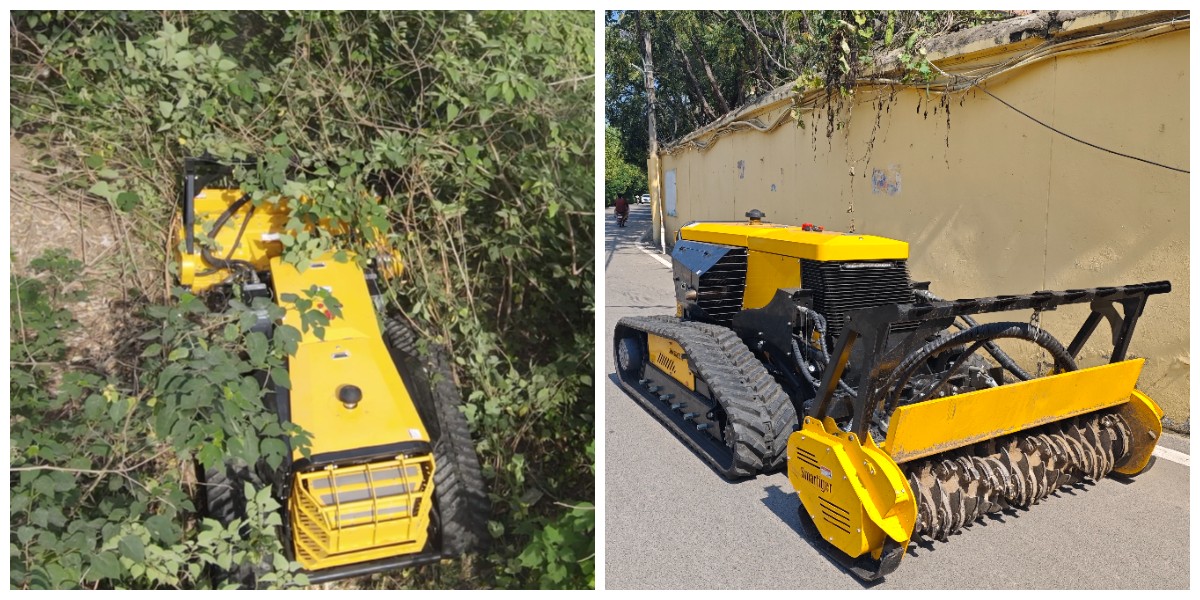

Remote-Controlled Fire Isolation Zone Opener

Remote-Controlled Fire Isolation Zone Opener: Advanced Technology for Forest Fire Prevention and Emergency Rescue

Executive Summary: Technological Innovation in Forest Fire Prevention

In the global context of increasing forest fire risks and the modernization of emergency response systems, the demand for efficient, safe, and intelligent firefighting equipment has reached unprecedented levels. This document presents a comprehensive overview of a state-of-the-art Remote-Controlled Fire Isolation Zone Opener, a specialized piece of machinery designed to revolutionize wildfire suppression and prevention. Engineered for international B2B procurement, this equipment integrates a robust Yanmar diesel powerplant with sophisticated hydraulic robotics to perform high-risk vegetation clearing tasks without endangering human operators. By combining the capabilities of a heavy-duty forestry mulcher with the versatility of a multi-functional carrier—capable of accepting attachments like snow plows and buckets—this machine stands as a pivotal asset for modern fire departments and land management agencies.

1. Industry Background and Market Dynamics

The escalating frequency of wildfires worldwide has necessitated a paradigm shift in firefighting strategies. Traditional methods of creating firebreaks—often involving chainsaws and manual labor or heavy excavators operated in close proximity to danger—are fraught with safety risks and logistical inefficiencies. The market is currently witnessing a decisive transition from "human defense" to "technological defense," where remote-controlled land clearing robots play a central role.

International buyers and government agencies are prioritizing equipment that offers "force multiplication"—machines that can work faster, longer, and safer than human crews. The forest fire prevention robot market is expanding, driven by the need for rapid response units that can traverse difficult terrain to isolate fires before they spread. This equipment addresses that need by offering a dual-capability solution: it acts as a proactive tool for creating fuel-free zones (isolation belts) and a reactive tool for clearing paths for firefighters in active emergency scenarios.

2. Core Engineering and Powertrain Specifications

At the heart of this heavy-duty mulcher lies a high-performance engineering architecture designed for reliability in extreme environments.

Yanmar Diesel Powerplant
The machine is powered by a genuine Yanmar diesel engine, a globally recognized standard for durability. With a rated power output of 53.7Kw and a massive torque range of 269-291Nm at 1625rpm, the engine provides the necessary low-end grunt to process heavy biomass. The direct injection fuel system ensures efficient combustion, while the specialized oil-air hybrid cooling system allows the unit to operate continuously in high-temperature conditions typical of fire zones without overheating.

Hydraulic Transmission and Control
Power is delivered to the ground via a hydrostatic transmission system, offering precision control over the machine's movements. This system allows for stepless speed control, enabling the operator to select the optimal speed for the task at hand:

Working Speed: 0-4 Km/h for high-torque mulching and clearing.

Transfer Speed: 0-9 Km/h for rapid deployment between sites.

The hydraulic system is equally impressive, utilizing a combination piston and gear pump configuration to deliver a high flow rate of 140L/min at a pressure of 380bar. This ensures that the cutting attachment maintains constant torque, even when encountering variable resistance from thick timber.

3. The Isolation Zone Attachment: Precision and Durability

The primary function of this fire isolation zone opener is executed through its advanced forestry mulching attachment. This component is designed to pulverize vegetation, effectively removing the fuel load required to sustain a wildfire.

Cutting Mechanism
The attachment features a substantial working width of 1500mm, equipped with 47 high-grade tungsten steel tools. Tungsten is selected for its exceptional hardness and resistance to abrasion, ensuring a long service life even when processing mineral-rich soil or rocky terrain often found in fire belts. The rotor spins at 2400rpm, capable of crushing timber up to 300mm in diameter in a single pass.

Operational Versatility
A key technical advantage is the bidirectional rotation of the tools (0-100% stepless adjustment). This feature allows the operator to reverse the rotor direction to clear jams or process specific types of brush more effectively. Furthermore, the attachment features a side-shift capability of -250mm to +250mm and a forearm lifting angle of -10° to 45°. This range of motion allows the machine to cut flush against obstacles, such as tree trunks or walls, and adapt to uneven ground contours, ensuring a clean firebreak with no residual fuel left behind.

4. Advanced Mobility and Remote Safety Systems

The defining characteristic of this equipment is its ability to separate the operator from the hazard.

Remote Control and Safety
The machine is operated via a sophisticated remote-control system with a range of >150m. This allows the operator to position themselves in a safe zone, far removed from falling trees, flying debris, or extreme heat. The remote interface provides full control over the engine throttle, drive motors, and attachment articulation.

Chassis and Stability
To navigate the rugged terrain typical of forest fire zones, the machine features a retractable chassis. The track width can be hydraulically adjusted from 1690mm to 2090mm. A narrower width facilitates transport and movement through tight trails, while the expanded width provides a stable base for operating on steep inclines. The undercarriage is engineered to withstand extreme angles, with an allowed operating inclination of 80° in any direction (with engine optimization) and a standard suitability for 55° slope operation. This ensures the machine can access remote ridges and valleys where fires often start.

5. Multi-Functional Versatility and Interchangeability

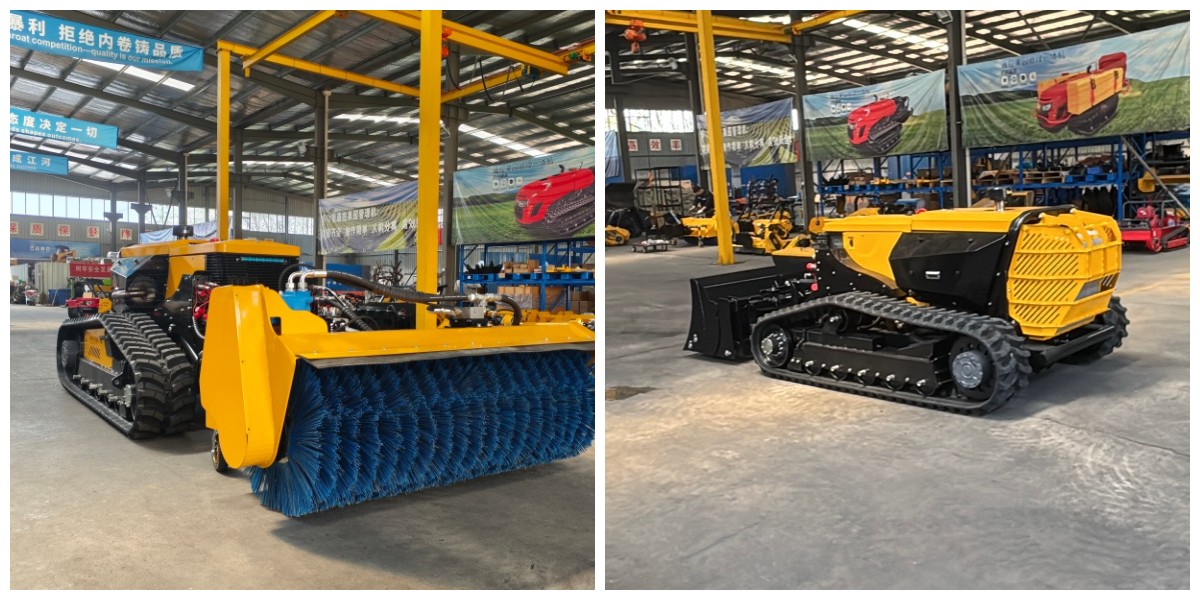

While primarily marketed as a fire isolation zone opener, the machine’s robust hydraulic architecture allows it to serve as a multi-purpose emergency response carrier. The high-flow hydraulic system (140L/min) supports the interchangeability of various attachments, maximizing the return on investment for municipal and industrial buyers.

Versatile Applications

Snow Removal: By swapping the mulching head for a snow plow or snow blower, the machine becomes a remote-controlled winter maintenance vehicle, capable of clearing snow from dangerous roads or bridges without risking a driver.

Excavation and Debris Removal: The system can accommodate a bucket or grapple, allowing it to clear debris after a fire or perform light excavation tasks for drainage and fire lines.

General Maintenance: The versatility extends to roadside maintenance, clearing drainage ditches, and managing vegetation in hazardous areas.

6. Manufacturing Quality and Application Process

The manufacturing process of this remote-controlled robot emphasizes structural integrity and component quality. The chassis is fabricated from high-tensile steel to resist torsional stress, and the integration of the Yanmar engine and piston pumps ensures that the powertrain meets global service standards.

In a typical application scenario, the machine is transported to a fire zone or prevention site via a flatbed trailer. Upon arrival, the operator deploys the unit and retreats to a safe distance. Using the remote control, the operator engages the hydrostatic drive to traverse the terrain. As the machine advances, the tungsten-tipped rotor engages the vegetation, pulverizing trees and brush into fine mulch. This mulch is deposited back onto the forest floor, creating a protective layer that prevents soil erosion—a critical consideration in post-fire landscapes. If the mission changes, the quick-coupler system allows for the rapid exchange of the mulching head for a bucket or plow, demonstrating the machine's adaptability to dynamic emergency situations.
