Hydraulic Mower

The Hydraulic Lawn Mower (hydraulic-driven for smooth performance) and slope-ready mowers share these core strengths:

Slope-Ready Design: Works on slopes up to 55° with advanced lubrication;

Stable Tracks: Anti-slip tracks + oil pan ensure safe slope operation;

Remote Control: Wireless operation keeps operators safe;

High Efficiency: Covers large areas quickly, runs continuously for hours;

Contact Now WhatsApp

Product Details

Product Introduction

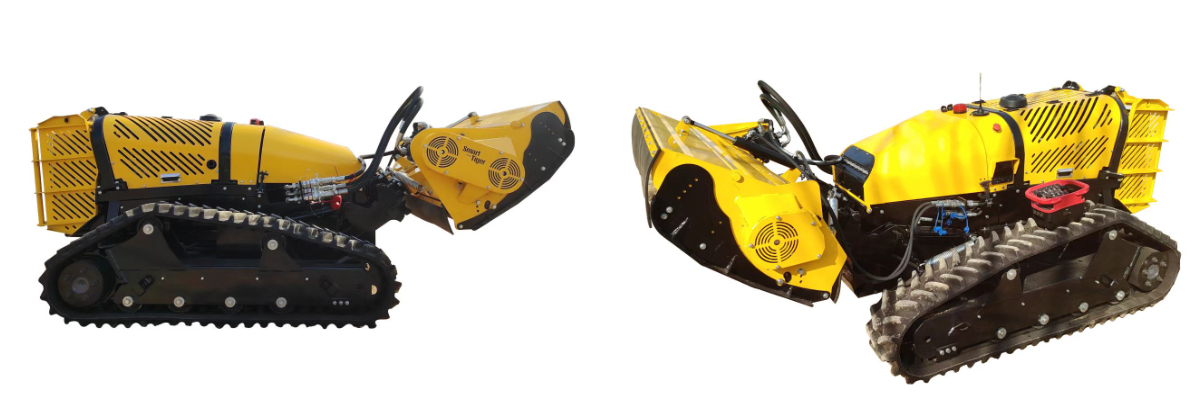

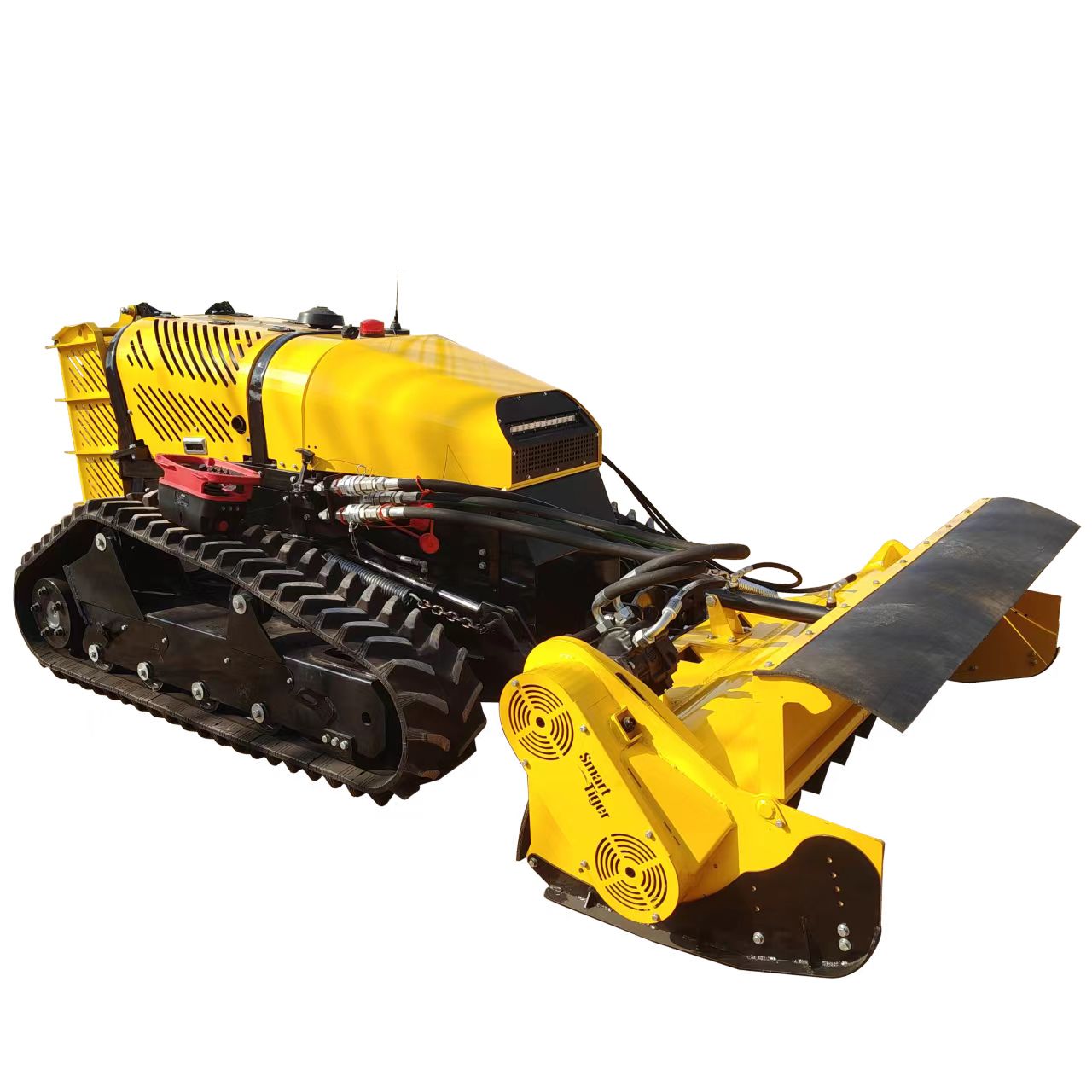

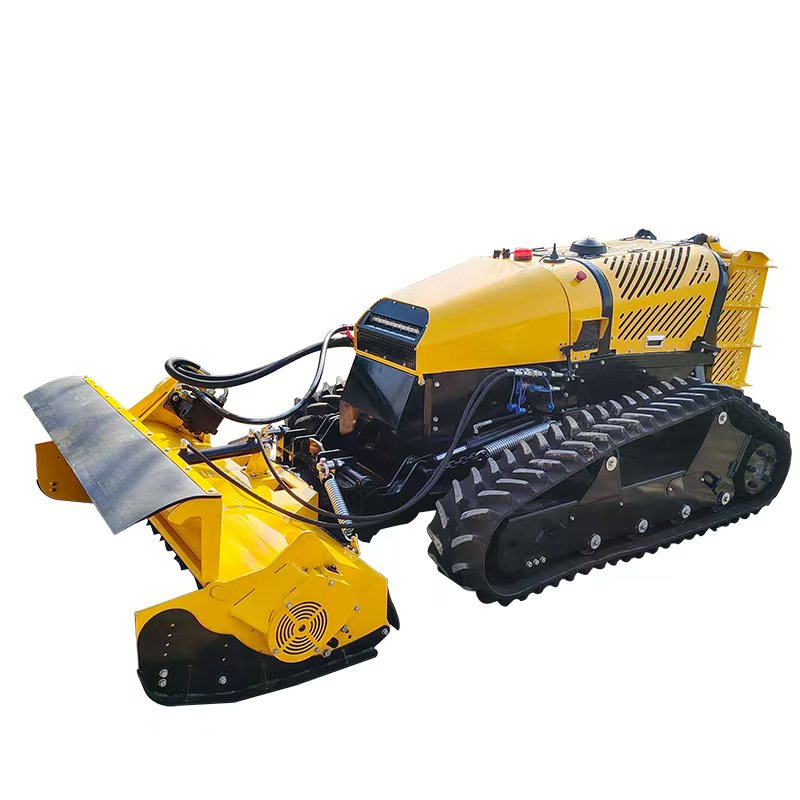

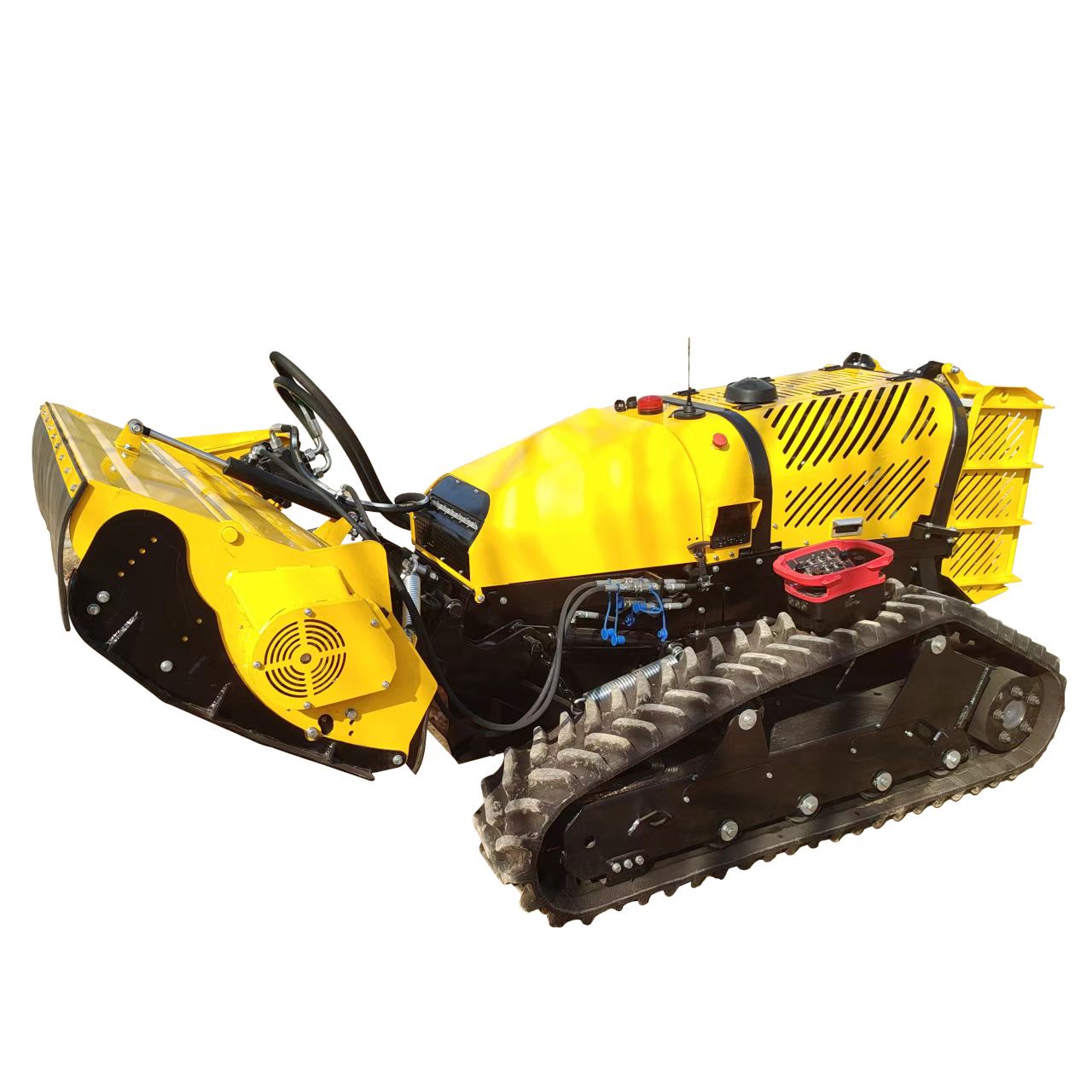

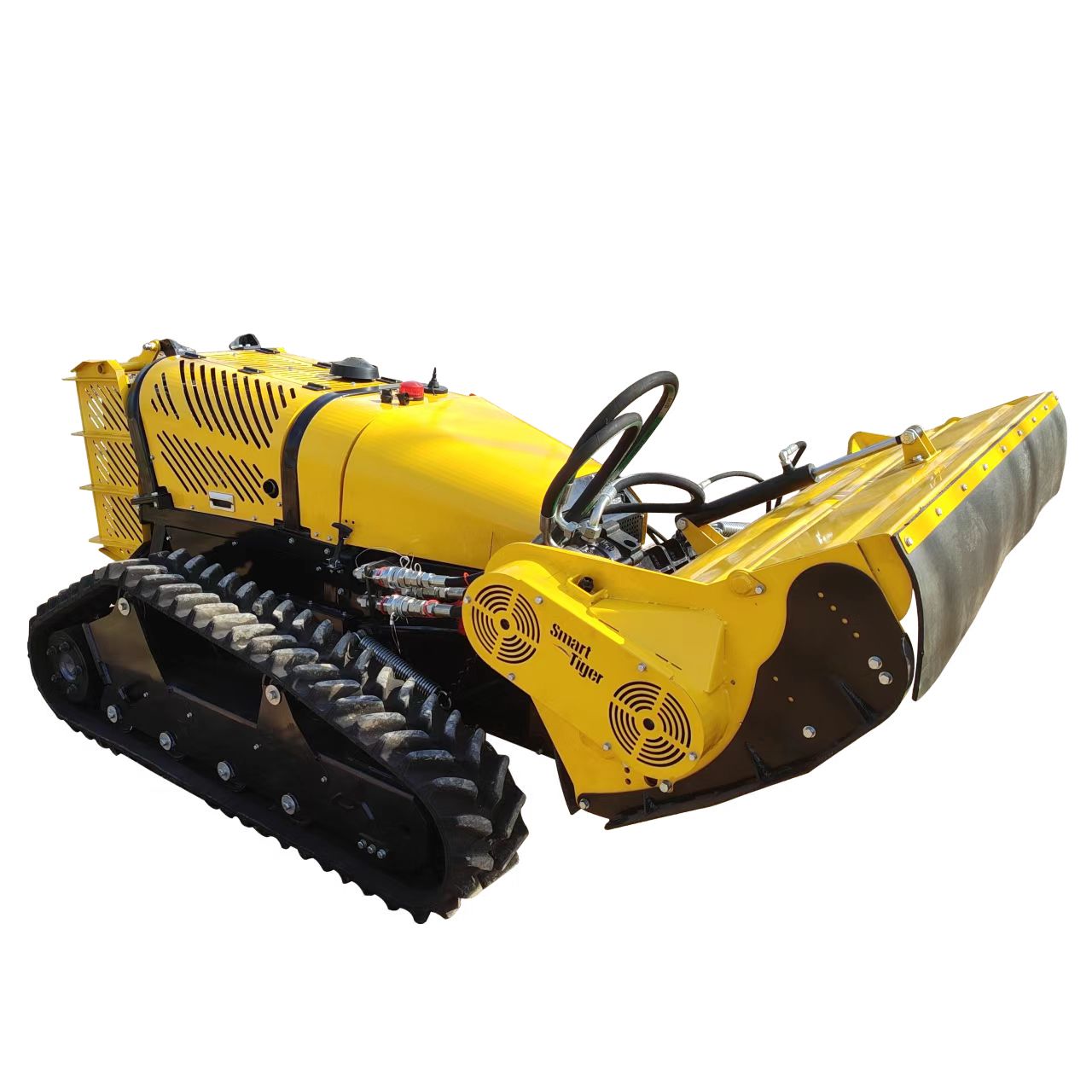

The Hydraulic Mower and Hydraulic Lawn Mower (hydraulic-driven for turf care precision) are durable, high-performance machines for safe, efficient vegetation management.

Both are powered by a YANMAR diesel engine and sophisticated hydraulic system, delivering precise control over movement, cutting attachments, and tracks. They feature reinforced heightened-tooth rubber tracks (stable on slopes up to 55°), adjustable rotor speeds, and versatile tools—efficiently handling grass, shrubs, and 100mm-diameter small branches.

With full safety protections and a >150m-range remote control, both excel at lawns, orchards, roadside greenery, and steep/challenging terrains.

Technical Parameters

Parameter	Specification	Parameter	Specification
Model	HHZH-40	Independent Oil Circuit for Mowing Platform	Yes
Engine Cylinders	3-cylinder	Independent Drive Oil Circuit	Yes
Engine Type	4-stroke in-line water-cooled diesel engine	Independent Action Oil Circuit	Yes
Torque	107.7Nm	Hydraulic Tank Capacity	26L (40L in the system)
Fuel	Diesel	Forearm Lifting Capacity	750Kg
Fuel Tank Capacity	28L	Allowed System Tilt Angle	80° in any direction (after hydraulic system optimization)
Fuel Injection Method	Direct injection	Remote Control Distance	>150m
Rated Power	28.2KW (38.3HP) / 3000rpm	Frequency	2.4G
Transmission Mode	Hydrostatic precision control	Allowed Engine Tilt Angle	60° in any direction (after engine optimization)
Cooling Method	Oil-air hybrid cooling	Headlight	LED
Cooler Self-Cleaning (Optional)	Automatic + manual control (optional)	Battery	2 built-in rechargeable lithium batteries per unit, supporting self-charging
Rubber Track (Standard)	High-tooth rubber track (supports 55° slope operation). The tooth height is twice that of ordinary/common tracks on the market, achieving strong grip and friction to handle various terrains.	Proportional Joystick	Yes (supports direction switching for front/rear driving; forward/reverse switching via knob without U-turn)
Hydraulic Pump	Piston pump + gear pump	Engine Start/Stop	Remote control
Drive Motor	High-torque motor	Engine Speed Adjustment	Remote control
Mowing Platform Motor	High-speed motor	Headlight Control	Remote control
Action Control	Remote control	Horn Control	Remote control
Main Machine Weight	1250kg	Mowing Platform Weight	200kg
Supported Slope	Suitable for 55° slope operation (alarm via horn + warning light at 50°; automatic shutdown at 55° for over-angle protection to prevent rollover. An angle sensor is added to automatically alarm if the terrain causes excessive tilt, avoiding rollover due to misoperation.)	Parking System	Remote parking switch ensures stable parking. The parking knob enables on-site parking and electronic handbrake function, effectively ensuring safety and preventing accidents caused by sliding or misoperation.
Cruise Control	Yes (one-key release)	Emergency Stop	One-key stop
Over-tilt Protection	Alarm (horn + warning light) and automatic shutdown	Signal Loss Protection	Automatic shutdown
Other Protections	Automatic shutdown in case of abnormal hydraulic or lubricating oil pressure	Attachment Hydraulic Flow	84L/min
Pressure	250bar	Overload Pressure Cutoff	Yes
Tool Rotation Speed	3000rpm	Tool Rotation Direction	Forward/reverse (bidirectional 0-100% stepless adjustable)
Attachment Front/Rear Curtains	Front and rear rubber pads	Attachment Front Cover Control	Remote control
Working Width	1350mm	Cutting Height Adjustment	30mm-90mm (3 gears)
Forearm Lifting Range	-200mm to 500mm	Stepless Spe

Optional Attachments

Hydraulic Mower

Application Scenarios

Urban Greening: Maintains parks, greenways, and roadside slopes;

River & Flood Dike Maintenance: Removes vegetation to protect embankments and ensure flood safety;

Highway & Railway Slope Clearing: Manages slopes along transport corridors;

Agricultural Slope Maintenance: Clears farmland and orchard edges;

Mountain & Forest Land Management: Cuts grass and reclaims land in rugged terrain;

Power Line & Hazard Zone Control: Enables safe clearing in restricted or dangerous areas.

Hydraulic Mower

Packaging & Shipping

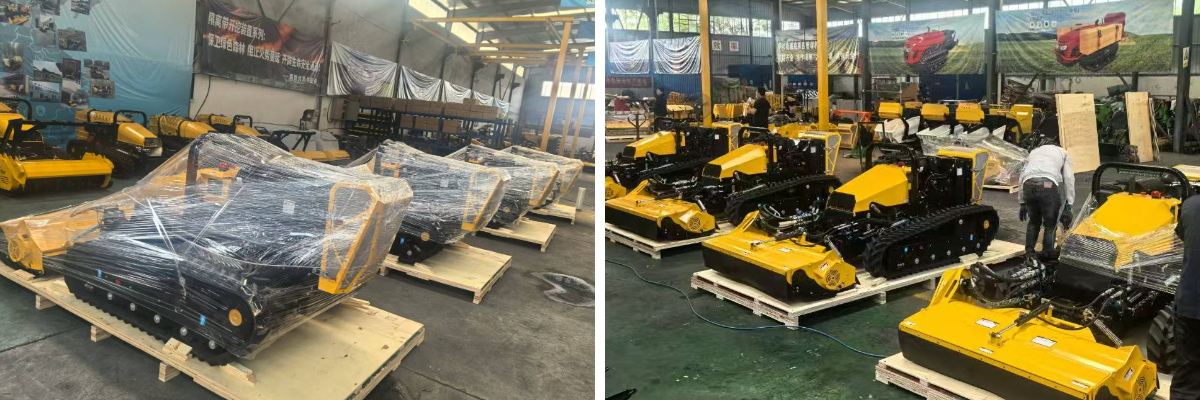

To ensure the Hydraulic Mower and two units of Remote Control Lawn Mower with Tracks (all track-enhanced for terrain stability) reach destinations in perfect working order, we use a meticulous multi-layered packaging process:

Dust & Moisture Protection: All 3 machines are tightly wrapped in transparent film to shield against dust, moisture, and minor transit surface damage;

Palletized Base: All are mounted on durable wooden pallets for safe forklift operation and smooth loading/unloading at ports, warehouses, or job sites;

Reinforced Wooden Crates: For long-distance/international shipping, all palletized machines are enclosed in heavy-duty wooden crates to resist impacts, compression, and transport stresses.

This approach guarantees all machines arrive fully protected, in perfect condition, and ready for immediate operation.

Hydraulic Mower

Company Profile

Qingdao Huaying Intelligent Equipment Co., Ltd., a subsidiary of Shandong Hongchuan Machinery Manufacturing Co., Ltd., focuses on the R&D, production, and sales of small- to medium-sized intelligent machinery. Leveraging strong technical capabilities and the strengths of a well-established regional industrial base, we provide efficient, versatile, and easy-to-use solutions for gardens, roads, orchards, and other applications. Committed to quality and innovation, our equipment is designed to enhance productivity, support sustainability, and deliver reliable performance in real-world operations.

Hydraulic Mower

Why Choose Us?

At Qingdao Huaying Intelligent Equipment, we blend industry expertise with advanced engineering to create two high-performance machines: the Remote Forestry Mulcher (for rugged terrains/steep slopes) and Remote-Controlled Lawn Mower (for precision turf care)—both fully remote-controlled for top safety and efficiency.

Rooted in reliable manufacturing, innovation, and field insight, both offer:

Dual safety systems + automatic shutdown (stable performance on extreme inclines);

Specialized cutting (mulcher: high-efficiency tungsten blades; lawn mower: turf-friendly cuts), with strong landscape adaptability;

Tool-free quick attachment changes (no workflow interruptions);

Smart diagnostics + real-time monitoring (dependable, hassle-free use);

Low-maintenance, transport-ready design (minimized downtime, maximized productivity).

The mulcher excels at land clearing/vegetation control/ecological restoration; the lawn mower suits turf care tasks—both deliver max output with minimal risk.

Note: Prices of The price of a remote-controlled lawn mower-controlled lawn mowers are available upon inquiry, tailored to your specific requirements.
