Slope Mowers
Slope-Ready Design: These Slope Mowers work on slopes up to 55° with advanced lubrication.
Stable & Reliable: Slope Mowers feature anti-slip tracks and a custom oil pan for steady performance.
Safe Remote Control: Slope Mowers operate in dangerous or hard-to-reach areas.
High Efficiency: With strong climbing ability, Slope Mowers cover large areas quickly.
Versatile Functions: Slope Mowers support over 16 attachments for varied tasks.
Fast Changeover: Slope Mowers let you swap attachments in under 10 minutes.
Product Introduction

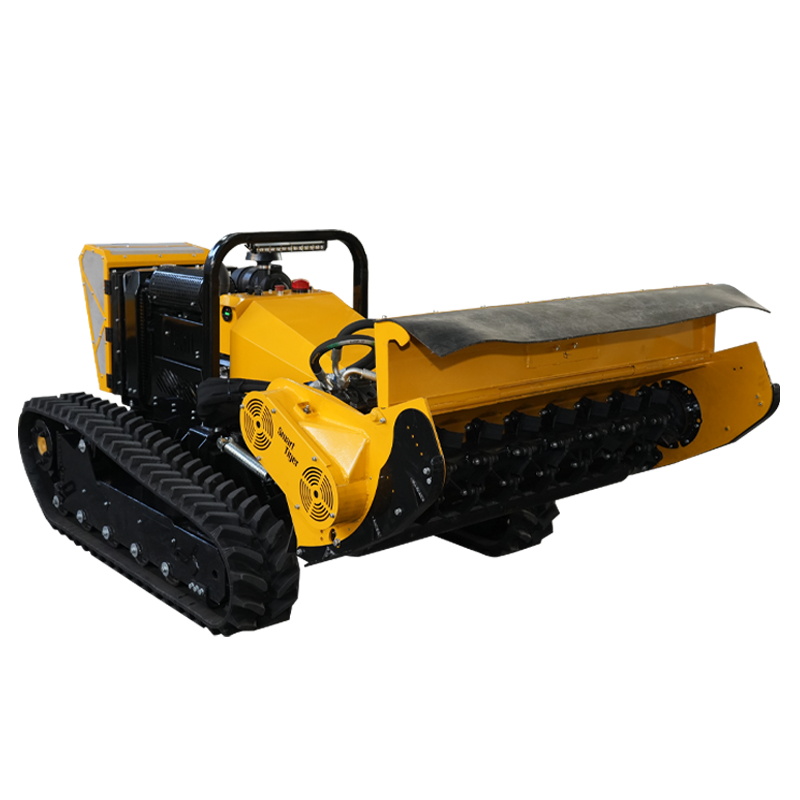

Slope Mowers—including the Robot Lawn Mower Steep Hill—are specialized machines for challenging terrains (slopes, embankments, riverbanks). Equipped with advanced engine lubrication, track-based anti-slip systems, and wireless remote control, they enable efficient, safe operation on steep, hazardous areas. Their quick-change attachment system supports diverse tools for versatile, multi-functional performance.
Product Details
The high-speed slope mowing robot—also a Robot Lawn Mower Steep Hill—covers thousands of square meters per hour and works continuously for hours daily, enabling efficient large-area green space maintenance. It boasts excellent climbing ability and high mowing efficiency.
It supports switching attachments (mowing/reclamation/branch crushing/ditching) and has ≥16 available functions (with new ones under development) for multi-functional operations.
Quick attachment replacement: <10 minutes (pure operation time) via imported quick connectors, which greatly extends service life.
The mowing platform runs at <3000rpm for better quality (max speed up to 3000rpm) to effectively handle grass clumps and small shrubs.
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
Mulcher attachment | 380kgs | |
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |

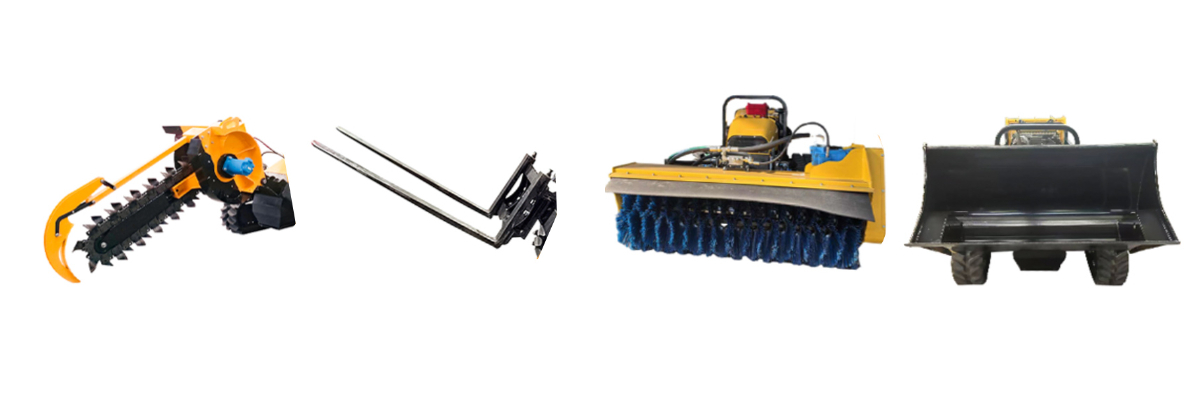

Optional Attachments
Application Scenarios
Urban Greening – Keeps parks, greenways, and roadside slopes neat and healthy.
River & Dike Protection – Removes vegetation to safeguard embankments and improve flood safety.
Transport Corridor Clearing – Clears slopes along highways and railways for safety and visibility.
Agricultural Slope Care – Maintains farmland and orchard edges for better land use.
Mountain & Forest Land Work – Cuts grass and reclaims rugged terrain.
Power Line & Hazard Zone Control – Safely clears vegetation in restricted or risky areas.
Packaging & Shipping
To ensure every Remote Control Lawn Mower—including Commercial Mowers For Steep Slopes—arrives in perfect working condition, we use a careful multi-layered packaging process:
Dustproof & Moisture-Resistant Wrapping: Each unit (including Commercial Mowers For Steep Slopes) is tightly sealed in transparent plastic film to shield against dust, moisture, and light scratches during transit.
Palletized Base for Easy Handling: The mower is secured on a durable wooden pallet for safe forklift use and efficient loading/unloading at ports, warehouses, or job sites.
Reinforced Wooden Crates: For long-distance/overseas shipping, the palletized mower is enclosed in a sturdy wooden crate to resist shocks, compression, and transport impacts.
This robust packaging minimizes transit risks, ensuring each mower (including Commercial Mowers For Steep Slopes) arrives protected, pristine, and ready for immediate operation.
Company Profile
Qingdao Huaying Intelligent Equipment Co., Ltd., a proud subsidiary of Shandong Hongchuan Machinery Manufacturing Co., Ltd., focuses on designing, developing, manufacturing, and selling high-performance small to medium-sized intelligent equipment. Leveraging strong technical expertise and the advantages of a thriving regional industrial base, we provide efficient, versatile, and easy-to-operate solutions for gardens, roads, orchards, and more. Committed to quality and innovation, our products are built to enhance productivity, support sustainability, and deliver reliable performance in real-world applications.
Why Choose Us?
At Qingdao Huaying Intelligent Equipment, we blend proven industry know-how with cutting-edge engineering to build machines that excel in tough, real-world environments.
Our Remote Forestry Mulcher is engineered for rugged terrain, steep slopes, and heavy workloads—fully remote-controlled for superior safety and efficiency.
Built on our dedication to precision manufacturing, ongoing innovation, and practical field insight, it offers:
Dual safety systems with automatic shutdown for stable performance on extreme inclines.
High-efficiency tungsten blade mulching that adapts to varied landscapes with ease.
Fast, tool-free attachment changes to switch tasks without disrupting workflow.
Smart diagnostics and live monitoring for reliable, low-stress operation.
Low-maintenance, transport-ready design to cut downtime and boost productivity.
From land clearing to vegetation control and ecological restoration, our intelligent solutions deliver maximum results with minimal risk—making every project safer, faster, and more effective
