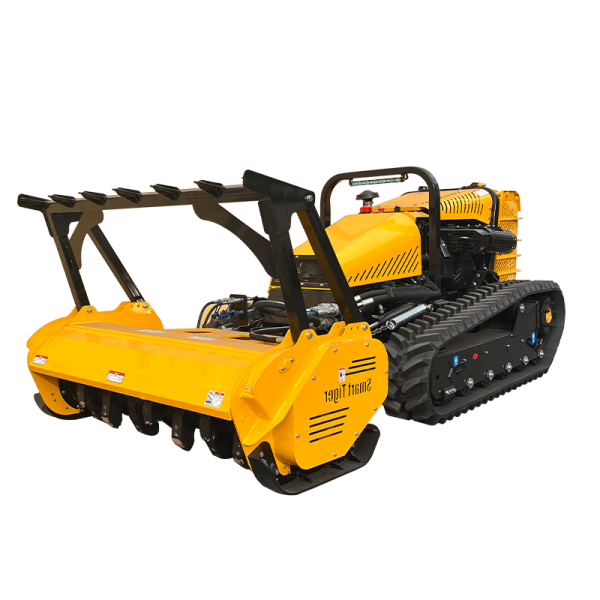

Radio Controlled Lawn Mower
High-Performance Specifications of Radio Controlled Lawn Mower As a professional outdoor maintenance equipment, the Radio Controlled Lawn Mower stands out with exceptional core performance, and also shares premium features with the Remote Forestry Mulcher and Multifunctional Wireless Remote Control Lawn Mower—all designed to meet tough work demands. Wireless Remote Operation: Safe & Precise Control Consistent with the other two models, the Radio Controlled Lawn Mower supports over 150m wireless control range. This long-distance operation capability allows operators to stay away from extreme environments (such as steep slopes, dense grass areas, or areas with potential obstacles) while achieving precise maneuvering.
Product Introduction
Robust Powertrain: Stable & Reliable Performance
Equipped with the same high-quality powertrain as the Remote Forestry Mulcher and Multifunctional Wireless Remote Control Lawn Mower, this Radio Controlled Lawn Mower features a 28.2kW Yanmar diesel engine paired with a hydrostatic transmission system. The diesel engine delivers strong torque output, ensuring smooth operation even under heavy loads (e.g., mowing thick grass or light wood). The hydrostatic transmission enables seamless speed adjustment without gear shifting, avoiding power interruptions during work and maintaining consistent cutting performance across various terrains.
Radio Controlled Lawn Mower：Flexible Speed Control: Adaptable to Different Tasks
The Radio Controlled Lawn Mower is equipped with a potentiometer speed control system (0 to 100%), supporting two gear ranges to match diverse work scenarios:
1st gear (low range): Forward and backward speed ranges from 0 to 4 Km/h, ideal for precise mowing in complex areas (e.g., around flower beds, trees, or narrow paths) where slow and steady movement is required.
2nd gear (high range): Forward and backward speed ranges from 0 to 10.2 Km/h, suitable for large-area open lawns, enabling efficient mowing and improving work efficiency significantly.
Product Details
Features high-performance hydraulic hoses from Continental (Germany) or Yokohama (Japan), ensuring outstanding durability and reliable operation under demanding conditions. |
| Fitted with heavy-duty rubber tracks that include reinforced anti-slip treads, delivering superior traction and reliable mobility. |
|
| The bi-directional cooling fan system maintains ideal operating temperatures while automatically clearing dust buildup for continuous performance. |
| The mulching head is fully remote-controlled and offers stepless speed adjustment along with smooth forward/reverse rotation. |
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
380kgs | ||
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Specification
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Optional Attachments
Application Scenarios
Standard Flail Head: Versatile Cutting Performance
The Radio Controlled slope mowers comes standard with a flail head, designed for grass cutting and light wood processing (up to 30mm diameter), with specifications that ensure cutting efficiency and quality:
Hydraulic performance: Oil flow of 84L/min and pressure of 250bar, providing sufficient power for the flail head to handle tough cutting tasks.
Rotor specifications: Rotor speed of 3000rpm, rotor width of 1400mm, and rotor diameter suitable for grass and shrubs ≤30mm—ensuring wide cutting coverage and fast processing speed.
Cutting height adjustment: Supports 3-position adjustment (30mm-90mm) via a roller; the flail can also be lifted to cut higher than 90mm, adapting to different lawn height requirements.
Hydraulic lift & auto-float: Hydraulic lift range from -200mm to 500mm, allowing flexible adjustment of the flail head height; the auto-float function enables the flail head to follow ground contours (up to 10° up and down), ensuring even cutting on uneven terrain.
Protective flaps: Front and rear flaps made of chain and rubber—preventing grass clippings and debris from splashing, protecting the operator and surrounding objects, and keeping the work area clean.
Flail type: Equipped with Y-Flails, which are durable and efficient for both grass cutting and light wood processing, extending the service life of the cutting parts.
Optional Attachments: Expanding Work Scope
In addition to the standard flail head, the Radio Controlled Lawn Mower can be equipped with optional attachments to meet more diverse outdoor maintenance needs, matching the versatility of the Remote Forestry Mulcher:
Mulcher attachment: Oil flow of 84L/min, pressure of 250bar, rotor speed of 2500rpm, and mulcher width of 1200mm—suitable for mulching materials with a diameter ≤100mm (e.g., small branches, fallen leaves), turning waste into organic matter for soil improvement. The front and rear chain flaps ensure safe and efficient mulching.
Branch Crusher attachment: Weighs 260kg, with a maximum crushing diameter of 120mm and dimensions of 1800 * 90 * 1300mm. It features intelligently allocated hydraulic flow with the host machine, ensuring stable power output during branch crushing. This attachment is ideal for processing pruning waste in gardens, parks, or forest edges, reducing waste volume and facilitating disposal.
Packaging & Shipping
To guarantee the safe and intact arrival of the Remote Forestry Mulcher, Radio Controlled Lawn Mower, and Remote Control Brush Cutter—especially the precision-engineered lawn mower—we’ve implemented a professional multi-layer packaging solution tailored to the rigors of international and long-haul shipping:
Dustproof & Moisture-Proof Primary Wrapping
Every unit, including the Radio Controlled Lawn Mower with its sensitive remote control components and mechanical parts, is first encased in thick transparent plastic film. This initial layer forms a tight barrier against transit dust, humid air, and minor surface scratches that could affect the lawn mower’s exterior finish or functional integrity.
Sturdy Palletized Foundation
All machines are securely fastened to heavy-duty wooden pallets. For the Radio Controlled Lawn Mower, we add anti-slip padding between the unit and pallet to prevent shifting during loading/unloading. This design not only facilitates easy forklift access at ports, warehouses, or job sites but also elevates the lawn mower off the ground to avoid moisture damage from wet shipping containers.
