Track Driven Lawn Mower

Multi-Function Versatility: Designed to handle diverse outdoor tasks—with the land management equipment covering reclamation, crushing, snow removal, rescue, and towing; and the track driven lawn mower extending functionality to professional turf care, ensuring adaptability to seasonal and scenario-specific needs.

High Performance Powertrain: Equipped with a 53.7 kW Yanmar diesel engine,  it ensures smooth power delivery and precise operation for heavy-duty tasks like crushing and land reclamation.


Contact Now WhatsApp
Product Details

Product Introduction

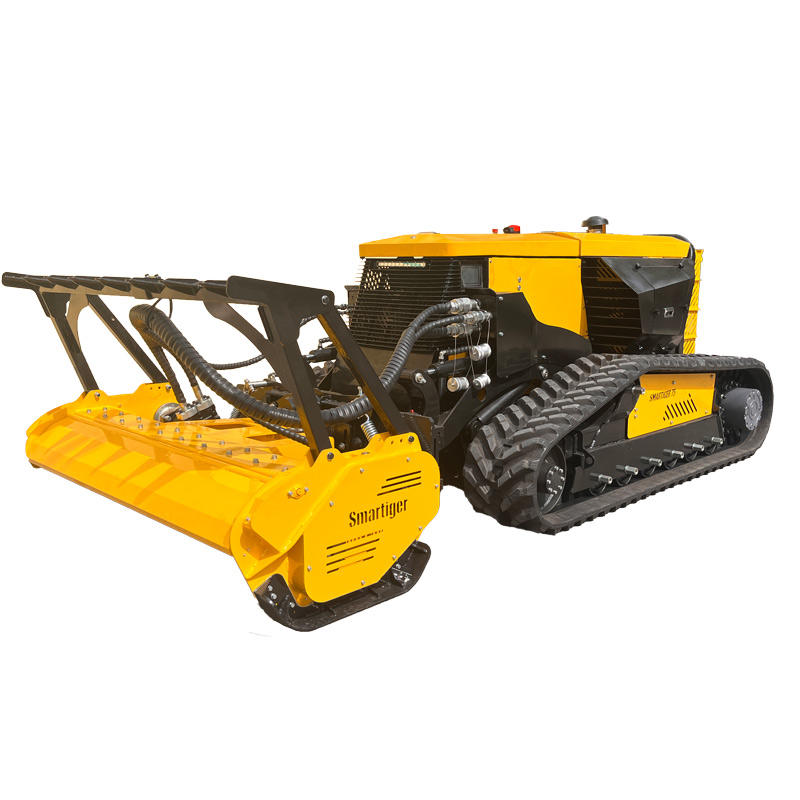

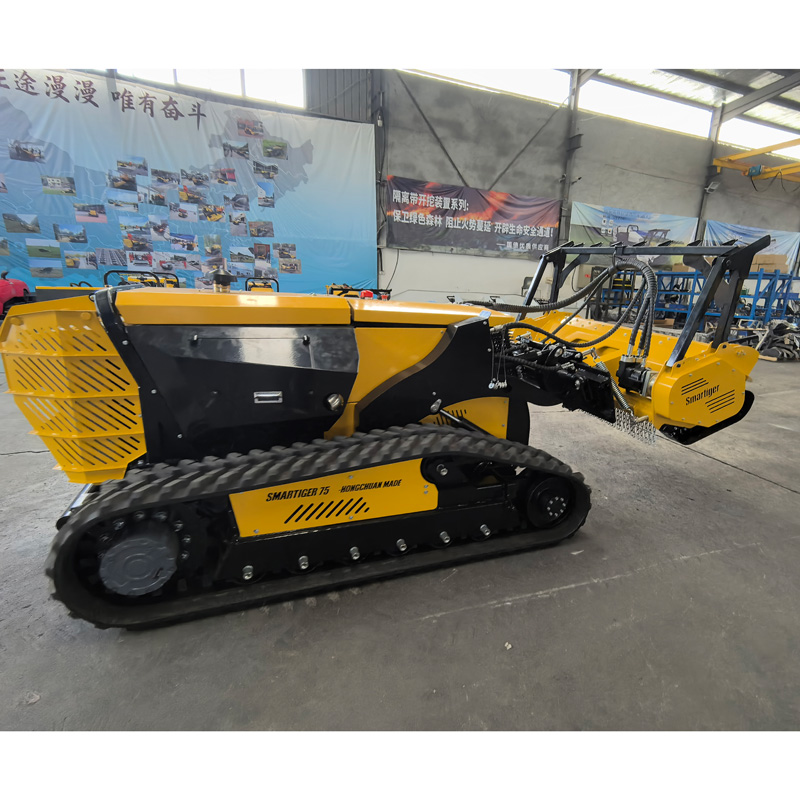

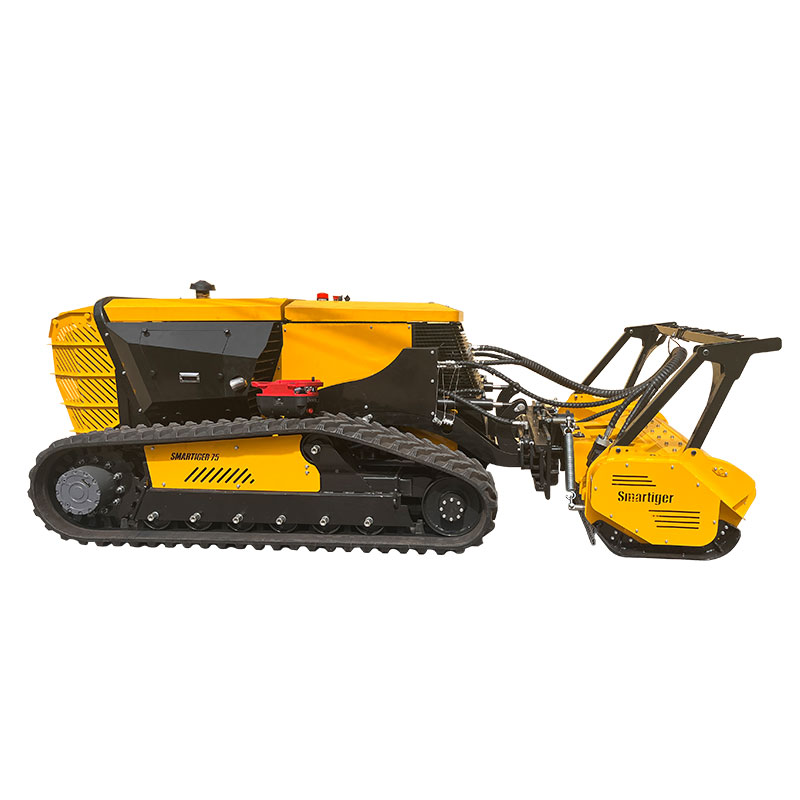

Forestry Mower & Track Driven Lawn Mower – Professional Remote-Controlled Outdoor Maintenance Solutions

We offer two high-performance remote-controlled machines tailored to diverse outdoor management needs: the Forestry Mower (for Sale) and the specialized Track Driven Lawn Mower, both engineered to deliver efficiency and reliability in demanding scenarios.

A versatile remote-controlled machine designed for rigorous vegetation management tasks across forests, grasslands, roadsides, and dykes. Powered by a 53.7 kW Yanmar engine—boasting high torque output and precision hydrostatic control—it excels in multi-functional operations, including shrub coppicing, heavy-duty mowing, vegetation crushing, snow removal, and more.


track driven lawn mower


Product Details

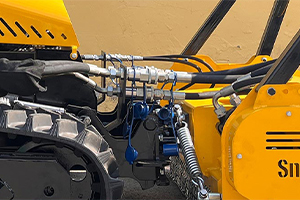

Hydraulic Hoses

track driven lawn mower

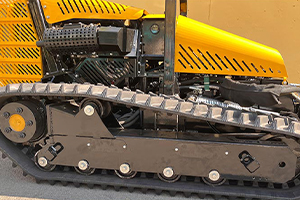

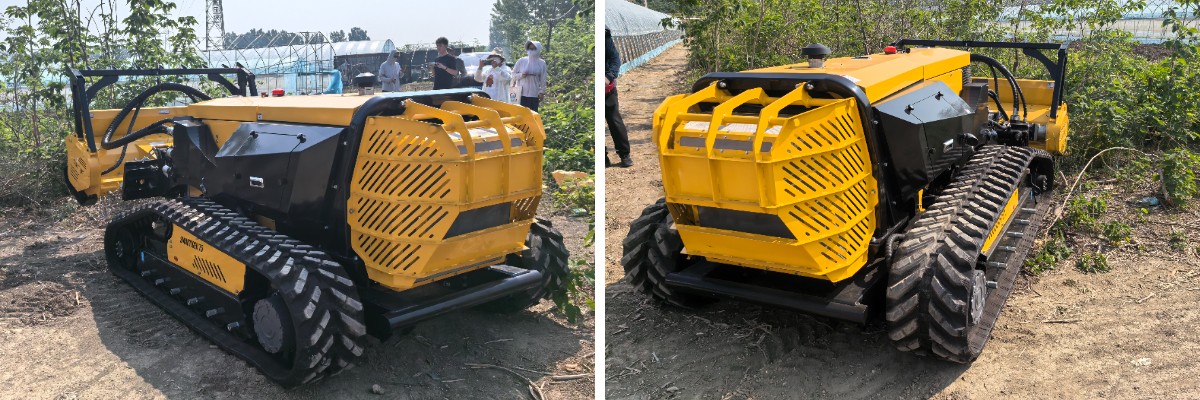

Fitted with heavy-duty rubber tracks featuring reinforced anti-slip treads for enhanced traction and stable mobility.

track driven lawn mower

track driven lawn mower

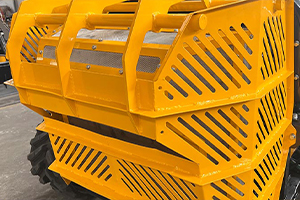

Dual-direction fan system with integrated cooling ensures optimal temperature control and automatic dust removal.

track driven lawn mower

Remote-controlled mulching head with stepless speed adjustment and seamless forward/reverse rotation switching.


Technical Parameters

Parameter

Specification

Parameter

Specification

Engine Brand

Yanmar

Tool Rotation Direction

Forward/Reverse (bidirectional 0-100% stepless adjustable)

Fuel

Diesel

Attachment Front Cover Control

Remote control

Fuel Tank Capacity

45L

Tool Material

Tungsten steel

Torque

269~291Nm/(1625±25rpm)

Working Width

1500mm

Fuel Injection Method

Direct injection

Number of Tools

47

Rated Power

53.7Kw

Crushing Diameter

150mm

Transmission Mode

Hydrostatic precision control

Forearm Lifting Angle

-10°~45°

Cooling Method

Oil-air hybrid cooling

Supported Slope

Suitable for 55° slope operation

Remote Control Range

>150m

Dimensions (Excluding Attachments)

Retractable chassis: main machine width 1690~2090mm; main machine length 2850mm; main machine height 1350mm

Allowed Operating Inclination

80° in any direction (after engine optimization)

Overall Machine Dimensions

3700mm×1820mm×1350mm

Hydraulic Pump

Piston pump + gear pump

Main Machine Weight

2900Kg (excluding attachments)

Drive Motor

High-speed motor + reducer

Attachment Weight

650Kg

Hydraulic Tank Capacity

40L (60L in the system)

Retractable Chassis

Yes (0~200mm on each side)

Hydraulic Flow of Reclamation Attachment

140L/min

Attachment Side Shift

Yes (-250~250mm)

Pressure

380bar

Tool Rotation Speed

2400rpm

Stepless Speed Control

Working speed: 0-4Km/h (forward/reverse); Transfer speed: 0-9Km/h (forward/reverse)

S



Optional Attachments

track driven lawn mower

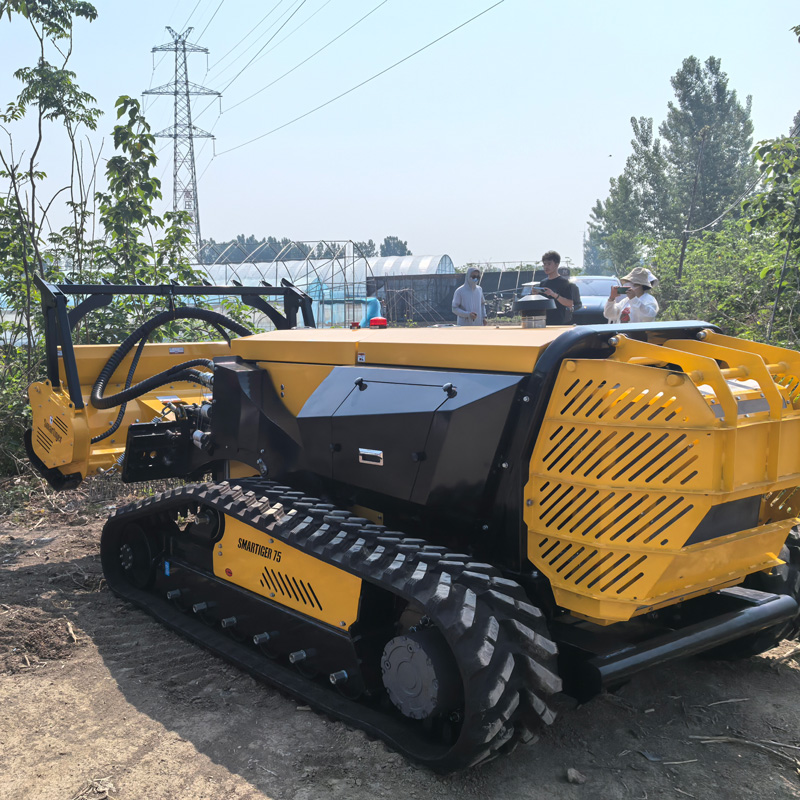

Application Scenarios

Application Scenarios of the Track Driven Lawn Mower

Urban Greening: The track driven lawn mower serves parks, greenways, and roadside slopes, with its tracks ensuring stable operation on mild slopes.

River & Flood Dike Maintenance: Uses the track driven lawn mower for vegetation removal, protecting embankments and ensuring flood safety (tracks prevent slipping near water).

Highway & Railway Slope Clearing: The track driven lawn mower supports slope management along transport corridors, handling mild slopes with reliable track-based traction.

Agricultural Slope Maintenance: Relies on the track driven lawn mower for farmland and orchard edge clearing, with tracks minimizing soil compaction.

Mountain & Forest Land Management: The track driven lawn mower excels at grass cutting and land reclamation in rugged terrain, thanks to its track system’s adaptability.

Power Line & Hazard Zone Control: The track driven lawn mower enables safe vegetation clearing in restricted/dangerous areas, with tracks ensuring stability on uneven ground.


track driven lawn mower


Packaging & Shipping

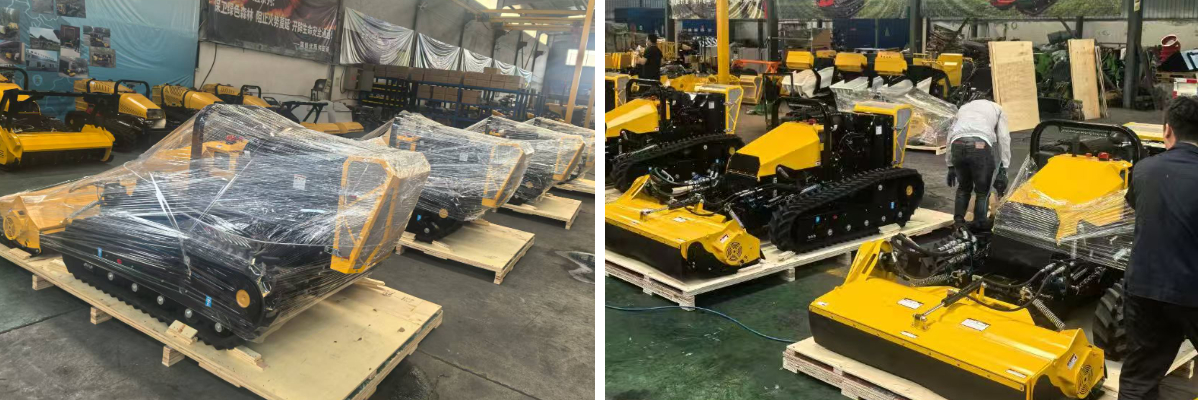

Packaging Process for the Track Driven Lawn Mower (Hydraulic)

To guarantee every track driven lawn mower (hydraulic type) reaches its destination in perfect working order, we follow a meticulous multi-layered packaging process:

Dust & Moisture Protection: Each track driven lawn mower is tightly wrapped in transparent film, shielding it from dust, moisture, and minor surface damage during transit.

Palletized Base for Easy Handling: The mower is mounted on a durable wooden pallet, enabling safe forklift operations and smooth loading/unloading at ports, warehouses, or job sites.

Reinforced Wooden Crates: For long-distance/international shipping, the palletized track driven lawn mower is enclosed in a heavy-duty wooden crate, providing strong resistance against impacts, compression, and transport stresses.

This packaging approach ensures the track driven lawn mower arrives in perfect condition, fully protected, and ready for immediate operation.


track driven lawn mower

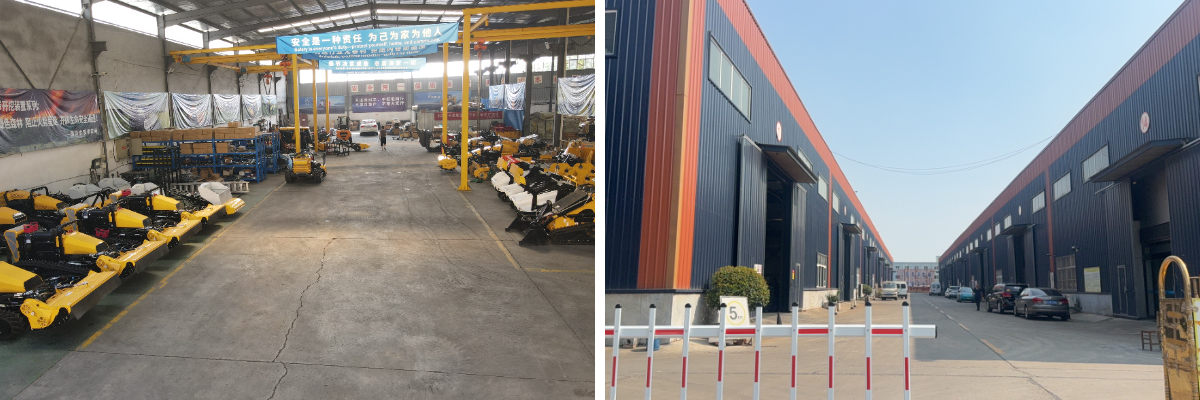

Company Profile

As a subsidiary of Shandong Hongchuan Machinery, Qingdao Huaying Intelligent Equipment Co., Ltd. is dedicated to the research, development, manufacturing, and sales of small to medium-sized intelligent machinery—with a specialized focus on turf care solutions, including the high-performance track driven lawn mower.

Headquartered in Jining, China, our product portfolio is engineered to provide efficient, easy-to-use solutions across diverse outdoor maintenance applications: landscaping, road maintenance, orchard management, and professional turf care. The track driven lawn mower, a key offering in our intelligent machinery line, stands out for its turf-friendly design: its robust rubber track undercarriage distributes weight evenly to minimize turf compaction, protects delicate grass surfaces from rutting, and ensures stable navigation across uneven lawns or gentle slopes. This makes it an ideal choice for scenarios like golf course upkeep, sports field maintenance, high-end residential lawn care, and public park grooming.

Backed by strong technical capabilities in hydraulic systems, remote-operation engineering, and track-driven mobility design, plus an unwavering focus on innovation, we ensure all our machinery—from orchard management equipment to track driven lawn mowers—delivers dependability and versatility. Every product is tailored to help customers address practical on-site challenges with confidence and efficiency, whether it’s streamlining road maintenance workflows or achieving precise, uniform turf cuts with our track driven lawn mower.


track driven lawn mower


Why Choose Us?

Qingdao Huaying Intelligent Equipment: Remote Forestry Mulcher & Track Driven Lawn Mower

At Qingdao Huaying Intelligent Equipment, we blend deep industry expertise with advanced engineering to design field-ready machines—including our Remote Forestry Mulcher and track driven lawn mower. The mulcher is built for rugged terrains/steep slopes, while the track driven lawn mower excels in stable, terrain-adaptable vegetation management; both prioritize safety and efficiency.

Backed by reliable manufacturing, continuous innovation, and field insight, our equipment (including the track driven lawn mower) delivers:

Dual safety systems + automatic shutdown for stable operation on extreme inclines;

High-efficiency mulching (mulcher) / precise cutting (track mower) with strong landscape adaptability;

Quick tool-free attachment changes to avoid workflow interruptions;

Smart diagnostics + real-time monitoring for hassle-free use;

Low-maintenance, transport-ready design to minimize downtime and maximize productivity.

For land clearing, vegetation control, or ecological restoration, our equipment—including the track driven lawn mower—achieves maximum output with minimal risk, making every job safer, faster, and more efficient.
