Remote Control Mower On Tracks

Comprehensive Safety – The remote control mower on tracks is equipped with high-sensitivity tilt sensors, over-limit alarms, and an automatic shutdown system. These features work in tandem to detect abnormal postures (e.g., excessive tilting on slopes) or potential hazards in real time, triggering timely alerts or immediate shutdown to prevent accidents during operation.



Contact Now WhatsApp
Product Details

Product Introduction

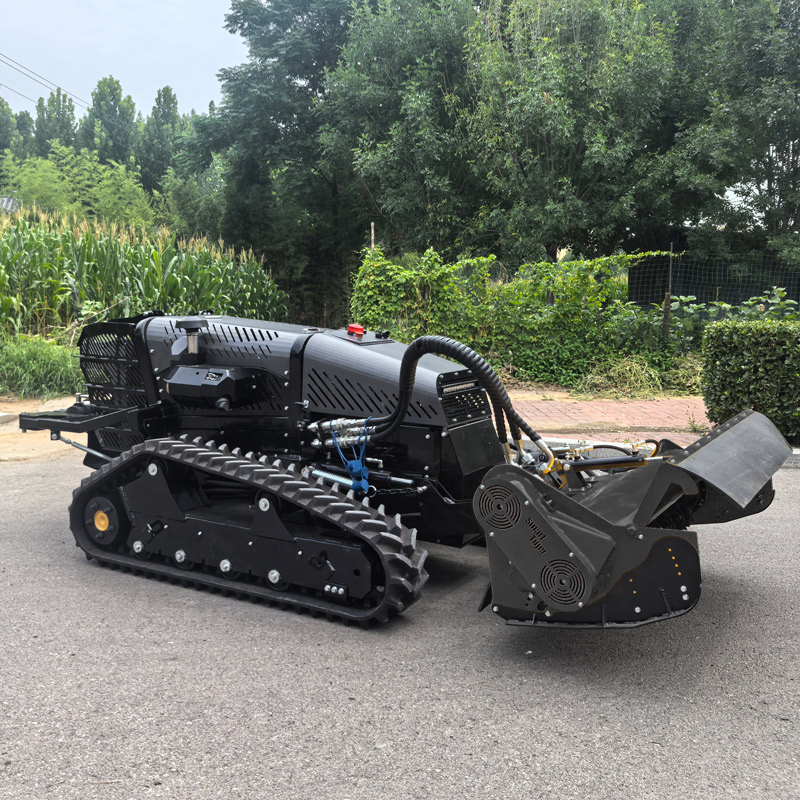

The Efficient Remote Control Lawn Mower EPA and Remote Control Track Mower on tracks are both versatile, high-performance vegetation management machines, specially designed to tackle challenging terrain and steep slopes—combining advanced safety features and operational efficiency to meet diverse outdoor maintenance needs.

Both machines prioritize maximum operational safety: the Efficient Remote Control Lawn Mower EPA is equipped with tilt sensors, over-angle alarms, and an automatic shutdown system, while the remote control mower on tracks integrates the same safety configuration. These features work in real time to detect excessive tilting or hazardous postures, triggering alerts or immediate shutdown to prevent accidents during operation.

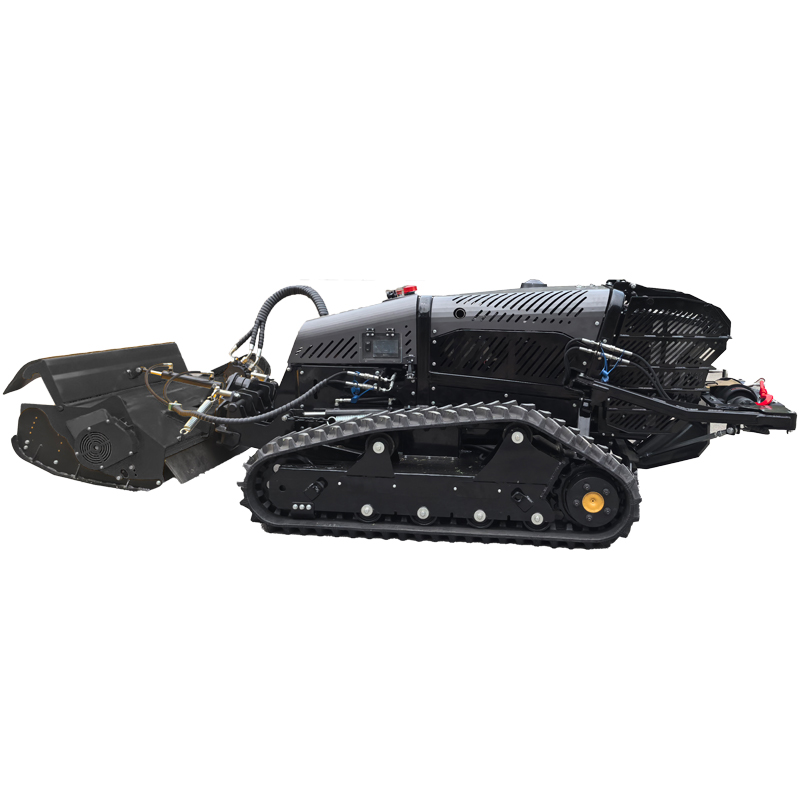

remote control mower on tracks

Product Details

The high-speed slope mowing robot and Tracked Remote Control Lawn Mower on tracks are both engineered to elevate green space maintenance efficiency, with the slope mowing robot excelling in high-speed, large-area operations and the remote control mower on tracks standing out for terrain adaptability—together covering diverse outdoor maintenance needs.

The high-speed slope mowing robot can cover thousands of square meters per hour and operate continuously for several hours, enabling efficient maintenance of large green spaces; the remote control mower on tracks, with its tracked undercarriage for stable traversal on uneven ground, complements this by handling medium-to-large area tasks that require precision (e.g., lawns with slopes or obstacles). Both machines boast excellent performance: the slope mowing robot delivers strong climbing capability for steep gradients, while the remote control mower on tracks leverages its tracks to maintain traction on loose or slippery terrain, paired with reliable mowing performance for consistent results.


Technical Parameters

Model

Smartiger


ENGINE

Maker

YANMAR 3-cylinder(European III emission standard)


Type

4-cycle, Inline, Water-cooled Diesel


Fuel tank capacity

28 litres


Gross output

28.2Kw (38.3Hp) @2600rpm


Self-cleaning(optional)

Standard manual and automatic (optional)

HYDRAULICS

Pumps

3-tandem piston pump + 2 gear pump

(Bondioli & Pavesi)

Driving motors

High torque motor

(Poclain)

Flail mower motor

High speed motor

(Danfoss)

Independent flail head circuit

Closed circuit piston


Independent track drive circuit

2x closed circuit piston


Independent motions circuit

Opend circuit gear


TRACKS

Rubber

Hieghtened teeth rubber track (max working angle 55°)

REMOTE CONTROL



Working range

>150m


Frequency

2.4G


Battery

Interchageable, rechargeable


Two with each unit charge on machine


Propotional Joysticks

Standard


DIMENSIONS

Overall width (with flail mower)

1500mm


Overall width (with flail mower)

2900mm


Overall height (with flail mower)

1300mm


WEIGHT

Smartiger

1250Kg


Mulcher attachment

380kgs


PERFORMANCE

Gradient

Working on slopes up to 55° in any direction

(alarm at 50° and automatic shut-off at 55°)

Potentiometer speed

1st gear (low range)

control (0 to 100%)

Forward and backward 0-4 Km/h

2nd gear (high range)

Forward and backward 0-10.2 Km/h

Parking

Yes

Steering

Skid-steering (support pivot-steering)

Travelling bias correction

Yes

Cruise Control System

Yes(One click release)

PROTECTION AND SAFETY

Emergency stop

One-touch shut-off switch

Over-slope

Automatic waring (Horn+Light) and shut-off

Headlamp

LED

Signal loss

Automatic shut-off

Others

Automatic shut-off if hydraulic oil and lube

pressure abnomaly

ATTACHMENT / FLAIL HEAD (STANDARD)

Standard attachment

Flail head

Oil flow

84L/min

Pressure

250bar

Rotor speed

3000rpm

Front and rear flap

Chain and rubber

Flails

Y-Flails for grass cutting and light wood

up to 30mm diameter

Rotor width

1400mm

Rotor diameter

Grass and shrubs ≤30mm

Cutting height range

30mm-90mm (3 positions)

(via roller adjustment)

flail can be lifted to cut higher than 90mm

Hydraulic lift

-200mm to 500mm

Auto-float capacity

Yes (follow ground contour up-down 10°)

ATTACHMENT / MULCHER

Oil flow

84L/min

Pressure

250bar

Rotor speed

2500rpm

Front and rear flap

Chain

Mulcher width

1200mm

Mulcher diameter

≤100mm

ATTACHMENT/BRANCH CRUSHER

Weight

260kg

Max.crushing diameter

120mm

Dimensions

1800 * 90 * 1300mm

Output power

intelligently allocated hydraulic flow with the host


Optional Attachments

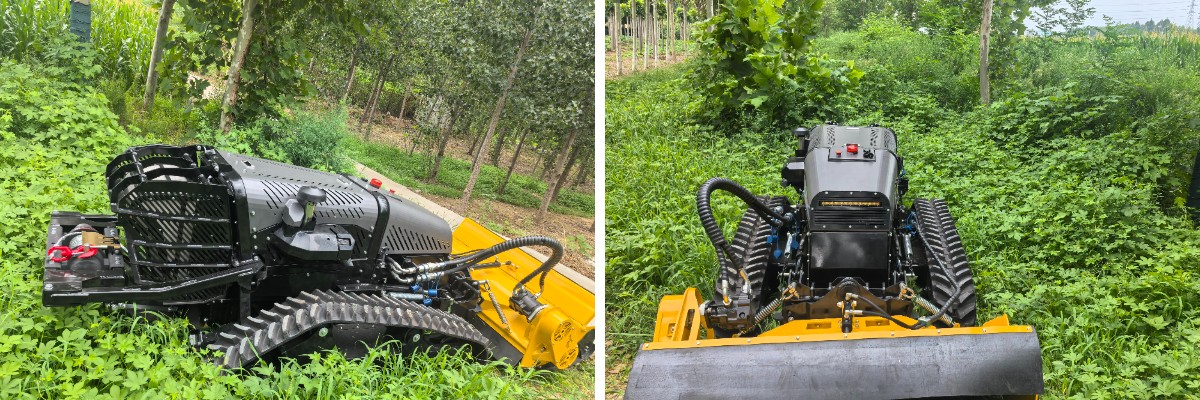

remote control mower on tracks


Application Scenarios

The Remote Forestry Mulcherremote control mower on tracks, and Remote Mower On Tracks (track-boosted for terrain stability) are engineered for diverse demanding outdoor environments, with key uses:

Forestry Clearing: Mulcher removes shrubs/undergrowth/small trees; track-based mowers (remote control mower on tracks & Remote Mower On Tracks) trim forest-edge grass.

Orchard Maintenance: Mulcher keeps pathways clean (prevents pests); track-based mowers maintain neat orchard lawns.

Land Reclamation: Mulcher preps rough terrain for farming/construction; track-based mowers clear grass on reclaimed land.

Roadside Management: Mulcher clears slope weeds; track-based mowers trim roadside grass stably.

Eco-Restoration: Mulcher reduces invasive vegetation; track-based mowers care for eco-area grass (no soil damage).

Hillside Operations: All stay stable on steep terrain—mulcher for heavy clearing; track-based mowers for hillside grass care via track design.


remote control mower on tracks


Packaging & Shipping

To ensure every Remote Forestry Mulcher and remote control mower on tracks arrive safely in perfect condition, we use a secure, professional packaging process:

Dustproof & Moisture-Resistant Wrapping: Each machine is wrapped in transparent plastic film to shield against dust, moisture, and minor scratches.

Palletized Base: Units sit on sturdy wooden pallets for easy loading, unloading, and forklift access.

Heavy-Duty Crates: For long-distance/international shipments, both are enclosed in reinforced wooden crates to protect against impacts and compression.

This multi-layered approach minimizes transit risks, ensuring all machines arrive protected, undamaged, and ready for use.


remote control mower on tracks


Company Profile

Qingdao Huaying Intelligent Equipment Co., Ltd., a subsidiary of Shandong Hongchuan Machinery, specializes in R&D, manufacturing, and sales of small-to-medium-sized intelligent equipment—including the remote control mower on tracks.

Based in Jining, China, we focus on delivering efficient, user-friendly solutions (such as the remote control mower on tracks) for landscaping, road maintenance, orchard care, and more.

Backed by strong technical expertise and innovation commitment, we help customers tackle real-world challenges with reliable, adaptable machinery like the remote control mower on tracks.


remote control mower on tracks


Why Choose Us?

At Qingdao Huaying Intelligent Equipment, we blend industry expertise with cutting-edge engineering to deliver top-tier machines—including the Remote Forestry Mulcher, remote control mower on tracks, and Mountainous remote-controlled land clearing machine (mountain-specialized for heavy clearing). All adopt full remote control for max safety and efficiency: the mulcher handles tough terrain/slopes; the track-based mower excels at stable grass care on uneven ground; the mountainous clearing machine tackles heavy land clearing in mountainous areas.

Rooted in reliable manufacturing, innovation, and field insight, our equipment offers:

Dual safety systems + automatic shutdown (safe slope operation);

Strong terrain adaptability (mulcher: tungsten blade mulching; mower: track-enabled grass cutting; mountainous machine: mountain-focused clearing);

Quick attachment replacement (diverse needs);

Smart diagnostics + real-time monitoring (worry-free use);

Fast maintenance + transport-friendly design (reduced downtime).

For land clearing, vegetation management, grass care, or environmental restoration, our machines maximize productivity while minimizing risk.
