Automatic crawler remote control lawn mower
Remote Operation: Utilizes 2.4GHz high-frequency communication with an effective control range exceeding 150 meters, enabling safe and precise unmanned operation in hazardous, steep, and other extreme environments.
High-Efficiency Power System: Equipped with a Yanmar 3-cylinder water-cooled diesel engine compliant with Euro III emission standards, delivering a rated power of 28.2kW. Combined with a hydrostatic transmission system, it ensures continuous and smooth power output.
Product Introduction
Tracked Vegetation Management Platform (High-performance Remote-controlled Tracked Equipment) is a professional-grade vegetation management solution designed for steep slopes and complex terrain operations, featuring the following core characteristics:
Comprehensive Safety Assurance: Equipped with an integrated tilt sensor, over-angle audio-visual alarm, and automatic shutdown protection mechanism, effectively ensuring equipment and operational safety.
Outstanding Slope Operation Performance: Utilizes an advanced hydrostatic drive system combined with real-time slope control technology, enabling stable omnidirectional operation on slopes ≤55°. The reinforced tracked chassis significantly enhances traction and anti-rollover capability, ensuring operational stability in complex terrain.
Harsh Environment Adaptability: Features an integrated oil-water composite cooling system and a reversible automatic dust-clearing fan, ensuring continuous and efficient operation in harsh conditions such as high temperatures and dusty environments, with excellent heat dissipation performance.
Note: The equipment is powered by a Yanmar 3-cylinder water-cooled diesel engine (Euro III standard, rated power 28.2kW @2600rpm). It is equipped with a dual closed-circuit independent drive system and an independent cutterhead hydraulic circuit. Standard features include dual-redundant interchangeable batteries and proportional joystick remote control system (control range >150m, 2.4GHz). The operating weight of the unit is approximately 1250kg.
Product Details
Outfitted with high-quality hydraulic hoses from Continental (Germany) or Yokohama (Japan), ensuring exceptional durability and dependable performance. |
| Equipped with robust rubber tracks reinforced with anti-slip treads, delivering superior grip and stable movement across challenging terrain. |
|
| A dual-direction fan combined with an integrated cooling system provides efficient temperature regulation while automatically clearing dust. |
| Remotely operated mulching head featuring stepless speed control and smooth forward/reverse rotation transitions. |
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
380kgs | ||
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Optional Attachments
Application Scenarios
Remote-Controlled Tracked Vegetation Management Platform excels in specialized outdoor vegetation maintenance, delivering professional solutions for diverse challenging scenarios:
Forestry & Brush Clearance: Effortlessly processes dense shrubs and small trees, and performs precise trimming along forest perimeters with stability.
Orchard & Farm Maintenance: Maintains clean pathways to reduce pest habitats, while ensuring neat turf management within orchard and farmland areas.
Land Rehabilitation: Effectively conditions rough terrain, and manages vegetation regrowth on reclaimed or restored land surfaces.
Infrastructure Zone Management: Safely clears weeds and brush from slopes, while delivering stable grass maintenance along roadsides and embankments.
Ecological Restoration: Removes invasive plant species without disturbing soil structure, and trims designated grass areas in sensitive ecosystems.
Steep Terrain Operations: Maintains outstanding stability on inclines up to 55°—handles heavy-duty clearing and efficient slope grass cutting with equal proficiency.
Key Specifications
Engine: Yanmar 3-cylinder water-cooled diesel (Euro III), 28.2kW @2600rpm
Drive System: Dual closed-circuit independent hydrostatic track drive
Slope Capability: ≤55° operation with tilt alarm (50°) & auto-shutdown (55°)
Remote Control: >150m range, 2.4GHz, dual redundant batteries
Cooling System: Integrated oil-water cooling with reversible dust-clearing fan
Operating Weight: Approx. 1,250kg (without attachment)

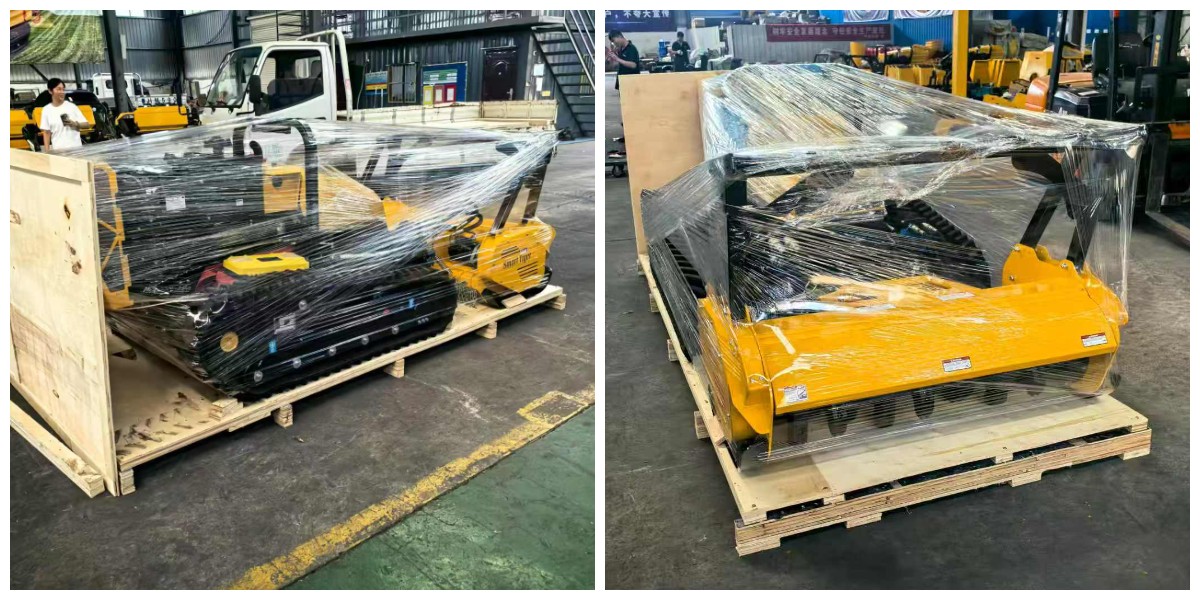

Packaging & Shipping
To ensure safe and flawless delivery of the Remote-Controlled Tracked Vegetation Management Platform (including mulcher and mower attachments), we employ a professional multi-stage packaging protocol:
Primary Protection: Each unit is fully wrapped with industrial-grade, dustproof and moisture-resistant film to prevent surface scratches and environmental ingress.
Handling-Ready Foundation: The equipment is securely mounted on reinforced timber pallets, facilitating safe forklift handling and stable transport.
Export-Ready Reinforcement: For long-distance or international shipments, heavy-duty wooden crates are used to provide structural integrity and impact protection throughout the logistics chain.
This systematic packaging approach minimizes transit risks, ensuring that each machine arrives intact, fully protected, and deployment-ready.
