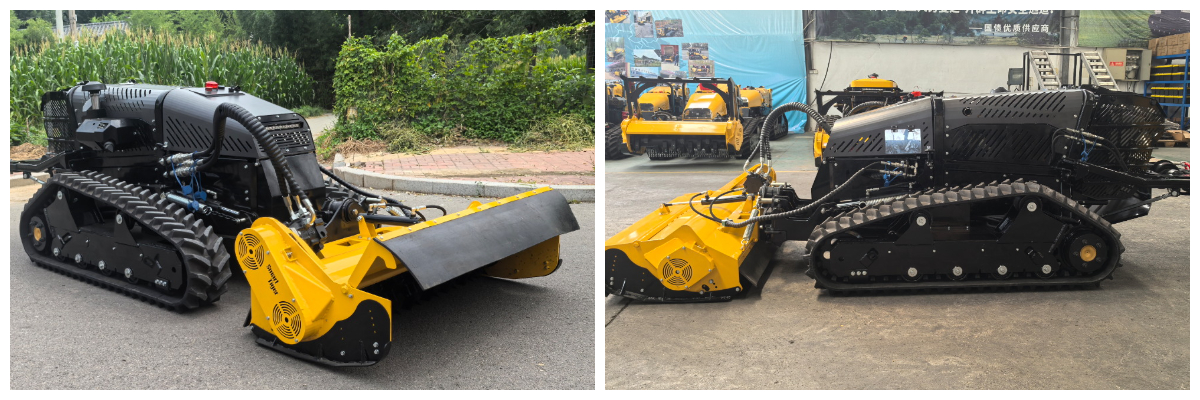

Diesel Lawn Mower
Remote-Controlled Operation: Wireless control range over 150 m for safe, precise handling in extreme environments.
Strong Powertrain: Powered by a 28.2 kW Yanmar 3-cylinder diesel engine (Euro III) and hydrostatic transmission for smooth, reliable performance.
High Slope Capability: Features intelligent auto-correction and tilt protection systems, enabling stable operation on slopes up to 55°.
Product Introduction
The Diesel Lawn Mower is not your average lawn care machine. Built for professionals who demand power, safety, and efficiency in the most challenging environments, this remote-controlled, all-terrain workhorse combines a reliable Changchai diesel engine with an advanced hydrostatic transmission. Whether you are maintaining steep slopes, clearing rough overgrown land, or working in wetlands, the Diesel Lawn Mower delivers consistent, precise, and safe cutting performance where traditional machines simply cannot go.
Product Details
In this detailed guide, we will explore the key applications of the Diesel Lawn Mower—with a special focus on how it solves the dangerous and difficult problem of steep-slope vegetation management—as well as its packaging, shipping, and frequently asked questions.
What Makes the Diesel Lawn Mower Different?
Unlike conventional gas-powered or electric push mowers, the Diesel Lawn Mower is engineered for heavy-duty, all-terrain operation. Its core strengths include:
Remote-Controlled Operation – Work safely from over 150 meters away.
Durable Diesel Engine – Powered by a trusted Changchai diesel engine known for fuel efficiency and long service life.
Hydrostatic Transmission – Enables smooth, stepless speed control and superior traction.
All-Terrain Capability – Handles slopes up to 55°, rocky ground, mud, and wetlands.
These features make the Diesel Lawn Mower a preferred choice for government agencies, forestry departments, landscaping contractors, and large estate managers.
Key Application Scenarios – Focus on Steep Slope Management
One of the most demanding applications for any mowing equipment is steep slope vegetation control. Roadside embankments, dam faces, vineyard hillsides, and mining site berms are notoriously dangerous for traditional ride-on or walk-behind mowers. The risk of rollover, operator injury, or equipment damage is extremely high.
The Problem with Traditional Slope Mowing
Conventional mowers lack the low center of gravity, traction, and remote-control capability needed for steep angles. Operators often must work at the edge of slopes, leading to:
High risk of slipping or tipping.
Uneven cutting due to wheel slippage.
Physical exhaustion and safety hazards.
Limited ability to work on wet or loose soil.
How the Diesel Lawn Mower Solves Steep Slope Challenges
The Diesel Lawn Mower directly addresses these pain points through three engineering breakthroughs:
Intelligent Auto-Correction & Tilt Protection – The built-in electronic stability system automatically adjusts power distribution to individual tracks, preventing rollover and maintaining level cutting even on inclines up to 55°.
Remote-Controlled Precision – Operators stand at a safe distance (up to 150 meters) while steering the Diesel Lawn Mower across the slope. This eliminates personal risk entirely.
Heavy-Duty Rubber Tracks – Instead of wheels, the machine uses wide, anti-slip rubber tracks that distribute weight evenly, reduce ground pressure, and grip loose soil or wet grass effectively.
Real-world example: A municipal road department in Switzerland used the Diesel Lawn Mower to clear 30 km of steep roadside embankments that had been neglected for years. The machine completed the work in 40% less time than manual crews, with zero safety incidents.
Beyond slopes, the Diesel Lawn Mower excels in:
Wetlands and marshes – Low ground pressure prevents sinking.
Forest undergrowth – Powerful mulching capability for saplings and brush.
Orchards and vineyards – Narrow profile and remote control avoid crop damage.
Flood control channels – Safe operation on slippery, grass-covered levees.
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
380kgs | ||
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Packaging & Shipping
Packaging & Shipping – Built to Survive Global Transport
When you invest in a Diesel Lawn Mower, you need confidence that it will arrive in perfect condition, whether you are located in North America, Europe, Australia, or Southeast Asia. The manufacturer employs a three-layer protective packaging system.
Dustproof & Moisture-Resistant Wrapping
Every Diesel Lawn Mower is first covered with a transparent, heavy-duty plastic film. This film seals out dust, moisture, and minor abrasions during container shipping. It also prevents corrosion on hydraulic fittings and electronic components.
Palletized Base for Easy Handling
The wrapped unit is then bolted onto a robust wooden pallet. The pallet design meets international shipping standards (ISPM 15 heat-treated wood), allowing for:
Quick forklift loading/unloading at ports and warehouses.
Stable stacking inside containers.
Easy movement on job sites without unpacking.
Heavy-Duty Wooden Crate (For International Orders)
For long-distance or sea freight shipments, the palletized Diesel Lawn Mower is enclosed in a reinforced, nailed wooden crate. Key features of the crate:
12 mm thick plywood walls with internal bracing.
Impact-absorbing foam padding at all contact points.
Weather-resistant sealing to prevent water ingress.
Lift rings for crane handling if needed.
This multi-layered packaging ensures that even after weeks of ocean travel and multiple transfers, the Diesel Lawn Mower arrives damage-free and ready for immediate use. Each shipment also includes a pre-start checklist and basic tool kit inside the crate.
FAQ
Frequently Asked Questions
Based on field feedback from global buyers, here are three common questions about the Diesel Lawn Mower regarding maintenance, transport, and operation.
Q1 – What is the fuel consumption of the Diesel Lawn Mower under heavy load?
A: The Changchai diesel engine consumes approximately 2.5 to 3.8 liters per hour during continuous mowing of thick grass or light brush. At idle or light trimming, consumption drops below 1.5 L/h. This is 30-40% more fuel-efficient than comparable gasoline-powered units of the same power class.
Q2 – How do I maintain the hydrostatic transmission in dusty environments?
A: The Diesel Lawn Mower features a sealed, maintenance-free hydrostatic drive for the first 1,000 hours. After that, only a fluid and filter change is required. The bidirectional cooling fan automatically reverses direction every 15 minutes to blow dust and debris off the radiator and transmission cooler – a critical feature for desert or agricultural use.
Why Choose the Diesel Lawn Mower for Your Fleet?
When you add a Diesel Lawn Mower to your equipment lineup, you are not just buying a mower – you are investing in safety, productivity, and all-season versatility. Traditional mowers require you to drive or walk near danger zones; the Diesel Lawn Mower lets you stand safely on level ground while the machine does the tough work. Its diesel engine provides hours of runtime on a single tank, and the hydrostatic transmission gives you fingertip speed control.
Moreover, the Diesel Lawn Mower's compatibility with various attachments (mulcher head, flail, brush cutter, snow blower) means one machine can serve year-round – mowing in summer, clearing brush in autumn, and moving snow in winter.
