Crawler emote control lawn mower
The slope-adapted machinery (for rugged terrain tasks) and Forestry Brush Mulcher (for specialized brush processing) share core high-performance traits:
Slope Performance: Both operate effectively on ≤55° slopes, with enhanced lubrication systems for stable work.
Stability & Durability: Equipped with anti-slip tracks and specialized oil pans to ensure consistent, long-lasting performance.
Product Introduction

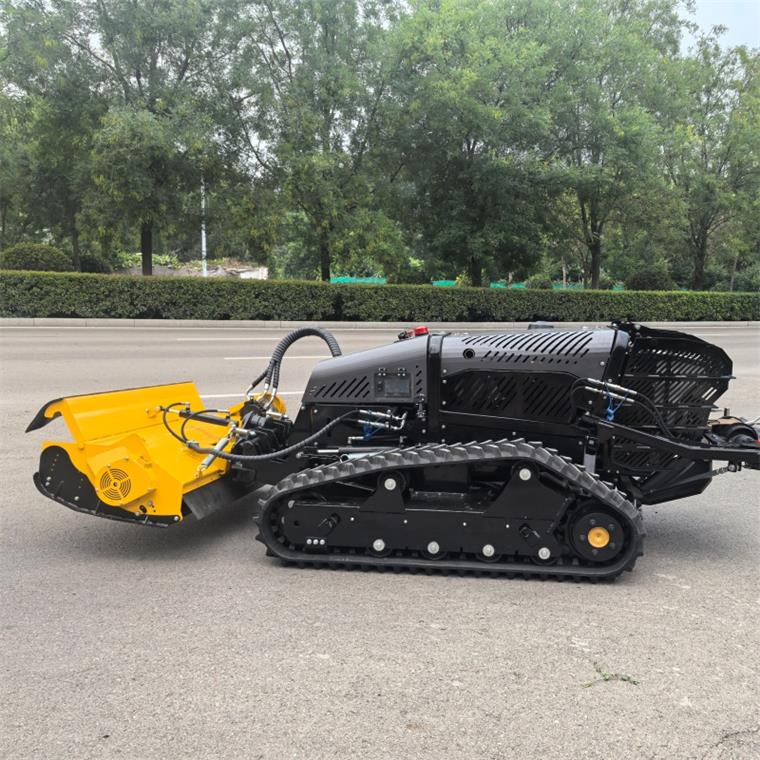

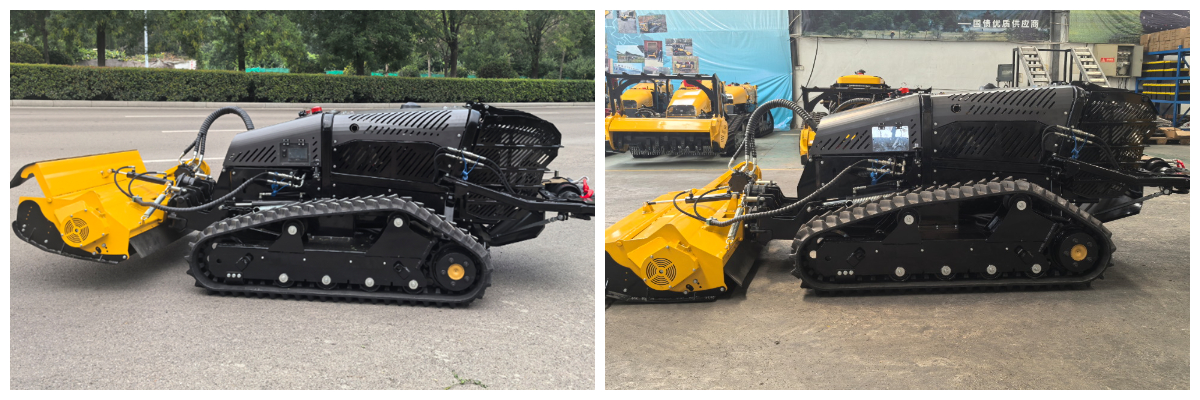

The Crawler All-Terrain Slope Remote Control Lawn Mower and Forestry Brush Mulcher are professional-grade vegetation management solutions:
Both are powered by a robust 40-horsepower Yanmar diesel engine (meets EPA emission standards) for strong performance, low emissions, and excellent fuel economy.
Crawler Lawn Mower: Fully remote-controlled (maximizes operator safety/comfort), with a high-torque drive system, durable blades, and wide mowing deck—ideal for large-scale management in parks, slopes, orchards, and roadsides.
Forestry Brush Mulcher: Complements with specialized brush-shredding capability, suited for dense vegetation in forested areas.
Both feature durability, easy maintenance, and extended operation—perfect for professional landscaping and vegetation management.
Product Details
The high-speed slope mowing robot and Remote-Controlled Lawn Mower are efficient tools for vegetation management:
Efficiency & Performance: Both excel in large-area maintenance—slope mowing robot covers thousands of㎡/hour (continuous operation for hours) with strong climbing/mowing ability; Remote-Controlled Lawn Mower delivers precise, efficient mowing for general green areas.
Versatility: Slope mowing robot supports 16+ functions (mowing, land reclamation, branch crushing, ditching) via attachments (new features in development); Remote-Controlled Lawn Mower adapts to diverse lawn terrains.
Quick Attachment Swaps: <10 minutes per swap for both; slope mowing robot uses imported quick connectors to boost durability and service life.
Mowing Quality: Slope mowing robot’s platform (up to 3000 rpm) ensures clean cuts for dense grass/small shrubs; Remote-Controlled Lawn Mower maintains neat, high-quality lawn finishes.
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
Mulcher attachment | 380kgs | |
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Optional Attachments
Application Scenarios
The Remote Control Mowers for Slopes and Remote-Controlled Forestry Mower (specialized for forest vegetation tasks) perform reliably across diverse environments:
Urban Landscaping: Remote Control Mowers for Slopes maintain parks, pathways, and roadside embankments; Remote-Controlled Forestry Mower handles greenery in urban forested areas.
Embankment & Flood Defense: Both clear weeds/brush along rivers/dikes to protect infrastructure and boost flood prevention.
Highway & Railway Control: Eliminate slope overgrowth to enhance visibility and safe travel.
Farmland & Orchard Maintenance: Manage sloped agricultural vegetation to improve accessibility and productive space.
Mountain & Forest Operations: Remote Control Mowers for Slopes cut grass/reclaim land; Remote-Controlled Forestry Mower specializes in precise forest vegetation management on rugged terrain.
Power Line & Hazard Zone Clearance: Safely remove high-risk/restricted-area vegetation, reducing hazards for maintenance.
Packaging & Shipping
Secure Packaging Process for Remote Control Mowers
To ensure every Remote Control Mower arrives in perfect working order, we implement a carefully engineered, multi-layer protection system:
Dustproof & Moisture-Resistant Wrapping – Each unit is wrapped in clear industrial-grade plastic film, effectively guarding against dust, humidity, and minor scratches during transport.
Palletized Base for Easy Handling – Machines are securely mounted on heavy-duty wooden pallets, enabling safe forklift access and streamlined loading and unloading at ports, warehouses, and job sites.
Reinforced Wooden Crates for Maximum Safety – For long-distance and international shipments, palletized mowers are fully enclosed in robust wooden crates, providing exceptional resistance to shocks, compression, and handling stress.
This layered packaging strategy minimizes transit risks, ensuring every mower is delivered fully protected, damage-free, and ready for immediate operation.
Company Profile
Why Choose Us?
At Qingdao Huaying Intelligent Equipment, we blend proven industry know-how with cutting-edge engineering to build machines that excel in tough, real-world environments.
Our Remote Forestry Mulcher is engineered for rugged terrain, steep slopes, and heavy workloads—fully remote-controlled for superior safety and efficiency.
Built on our dedication to precision manufacturing, ongoing innovation, and practical field insight, it offers:
Dual safety systems with automatic shutdown for stable performance on extreme inclines.
High-efficiency tungsten blade mulching that adapts to varied landscapes with ease.
Fast, tool-free attachment changes to switch tasks without disrupting workflow.
Smart diagnostics and live monitoring for reliable, low-stress operation.
Low-maintenance, transport-ready design to cut downtime and boost productivity.
From land clearing to vegetation control and ecological restoration, our intelligent solutions deliver maximum results with minimal risk—making every project safer, faster, and more effective.
