Lawnmower For Slopes
Remote-Controlled Operation: The Tracked Robotic Remote Control Mower (also ideal as Robot Mower Hills) boasts >150m wireless control, enabling safe, precise handling in extreme environments (steep slopes, dense vegetation, hills). Operators manage it from a secure distance, eliminating on-site risks.
Strong Powertrain: Fitted with a 35kW Changchai diesel engine + hydrostatic transmission, this mower (suited for Robot Mower Hills) delivers smooth, reliable performance. Its powertrain is optimized for the tracked system, ensuring consistent power for heavy-duty tasks.
Product Introduction

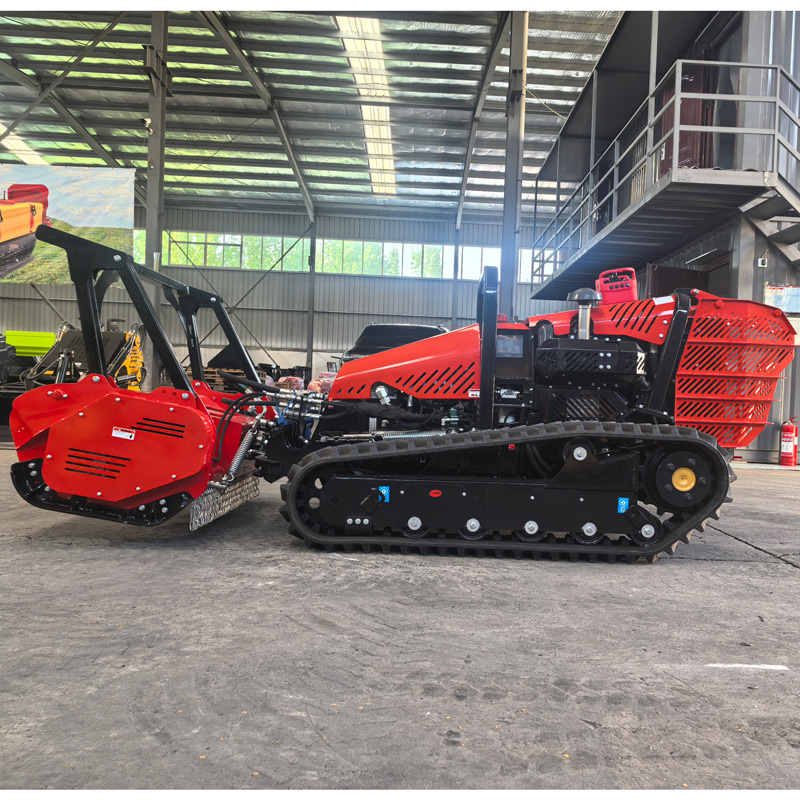

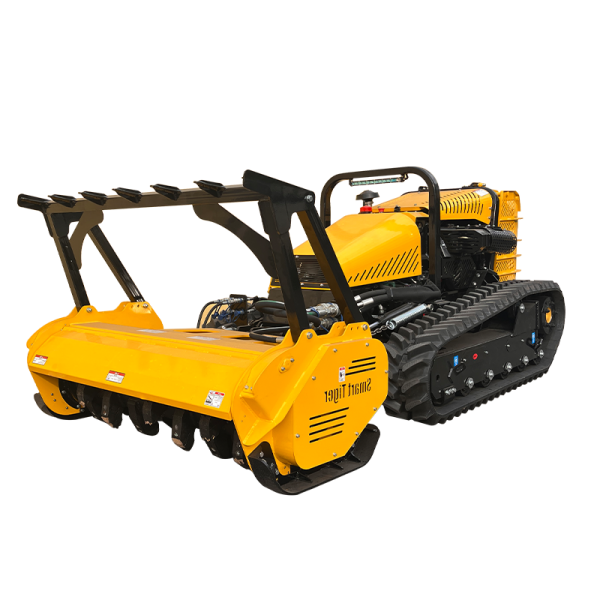

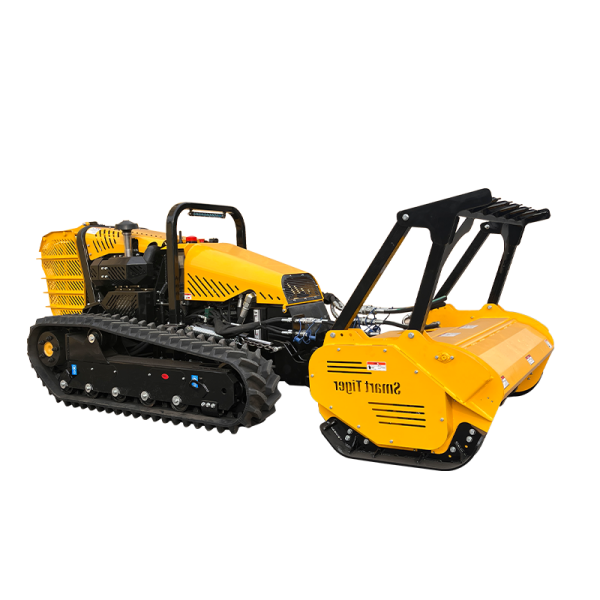

The Remote Mulcher (high-performance self-propelled land-clearing machine) and 40-type Full Hydraulic Robotic Slope Mower (also ideal as Robot Mower Hills) are built for challenging conditions. Both powered by dependable Changchai diesel engines with advanced hydrostatic transmission, they ensure superior maneuverability, precise control, and robust performance (mulching for the former, steep-slope/hill grass trimming for the latter).
Designed for steep slopes, hills, uneven ground, and wetlands, both deliver reliable, efficient results while meeting rigorous safety protocols. Their rugged builds, self-driven mobility, and high-torque hydraulic systems suit forestry management, land reclamation, orchard renewal, and ecological rehabilitation.
Integrating durability, adaptability, and user-centric design, they provide professionals with trustworthy tools for demanding land clearing and slope/hill grass-trimming operations.

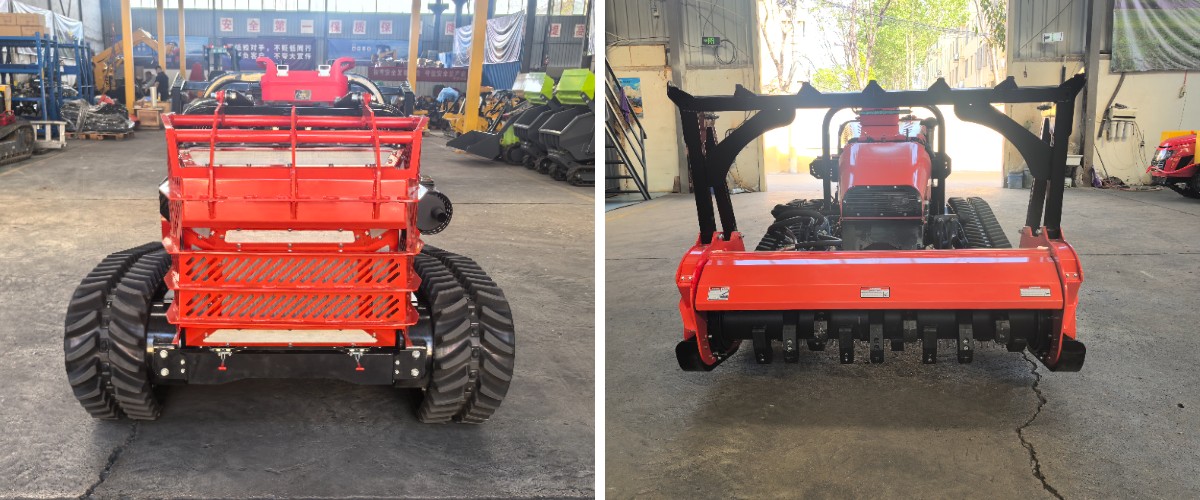

Product Details
Equipped with Continental (Germany) or Yokohama (Japan) hydraulic hoses for durability and reliability. |

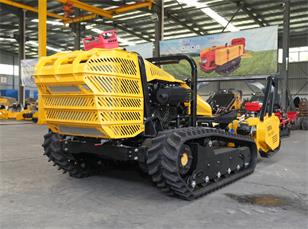

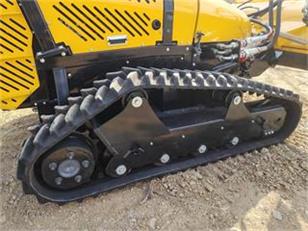

| Fitted with heavy-duty rubber tracks featuring reinforced anti-slip treads for enhanced traction and stable mobility. |
|
| Dual-direction fan system with integrated cooling ensures optimal temperature control and automatic dust removal. |

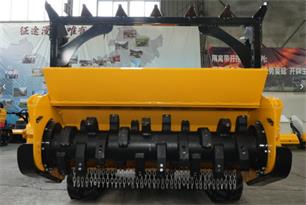

| Remote-controlled mulching head with stepless speed adjustment and seamless forward/reverse rotation switching. |
Technical Parameters
Parameter | Specification | Parameter | Specification |
Model | HYZH-40 | Pressure | 250bar |
Engine Brand | YANMAR | Headlight | LED |
Fuel | Diesel | Tool Rotation Speed | 2500rpm |
Fuel Tank Capacity | 28L | Tool Rotation Direction | Forward and reverse (bidirectional 0-100% stepless adjustable) |
Torque | 107.1Nm | Control of Attachment Front Cover Opening/Closing | Remote control |
Fuel Injection Method | Direct injection | Tool Material | Tungsten steel |
Rated Power | 28.2Kw | Working Width | 1200mm |
Transmission Mode | Hydrostatic precision control | Number of Tools | 27 |
Cooling Method | Oil-air hybrid cooling | Crushing Diameter | 100mm |
Vertical Obstacle Crossing Height | 500mm | Forearm Lifting Height | -200mm to 500mm |
Wading Depth | 500mm | Supported Slope | Meets working conditions with a slope angle of 55° |
Departure Angle | 30° | Dimensions | 3230mm × 1450mm × 1420mm |
Straight-line Deviation Angle | 0.3% | Self-weight | 1840kg |
Topsoil Backfilling Depth | 20mm | Maximum Traction Force | 25KN |
Working Distance of Remote Control System | >150m | Ground Clearance | 170mm |
Allowed Operating Inclination Angle | 60° in any direction (after engine optimization) | Attachment Terrain Matching | Yes (matches terrain undulations within ±10°) |
Hydraulic Pump | Piston pump + gear pump | Steering | Skid steering, supporting in-place steering |
Drive Motor | High-torque motor | System Allowed Operating Inclination Angle | ≥80° in any direction (after hydraulic system optimization) |
Hydraulic Tank Capacity | 26L (40L in the system) | Hydraulic Flow of Reclamation Attachment | 84L/min |
Stepless Speed Control | Working speed: forward/reverse 0-4 Km/h; Transfer speed: forward/reverse 0-10.2 Km/h | Parking Mode | Remote control. The parking switch ensures stable parking of the equipment. The parking knob enables on-site parking and electronic handbrake function, effectively ensuring safety, preventing sliding, and avoiding safety accidents caused by misoperation. |
Rubber Track (Standard) | High-tooth rubber track (supports 55° slope working conditions). Special working condition rubber track with teeth twice as high as ordinary/common tracks on the market, achieving strong grip, friction, and adaptability to various terrains | Proportional Joystick | Supports joystick direction switching for convenient operation when driving with the front or rear of the machine forward. Direction switching (forward/reverse) can be realized via the knob switch, which is more efficient without the need for U-turn. |
Frequency | 2.4G | Battery | 2 built-in rechargeable lithium batteries per unit, supporting self-charging |

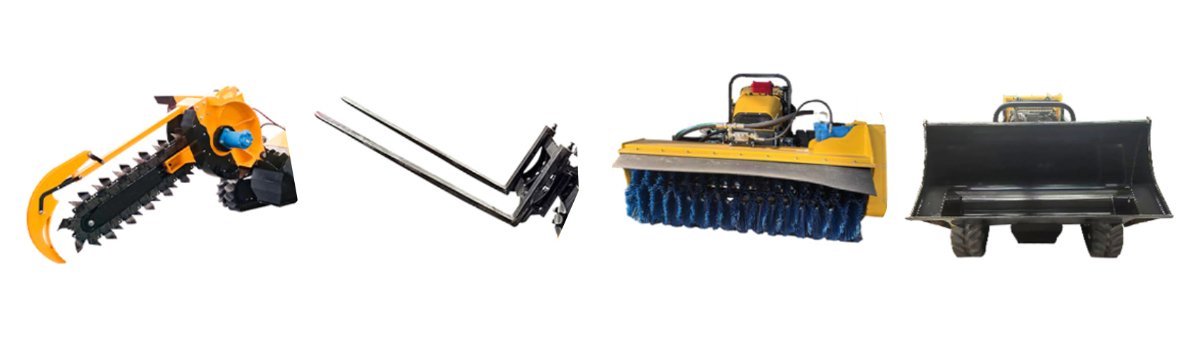

Optional Attachments
Application Scenarios
Forestry Management: Best Duty Mower (mulcher) clears underbrush, small trees, shrubs; robotic slope mower trims forest-margin grass for full-site care.
Orchard Upkeep: Best Duty Mower maintains access routes (reduces pests); robotic slope mower tidies orchard lawns to support crops.
Reclamation Projects: Best Duty Mower transforms overgrown land into usable areas; robotic slope mower clears grass on reclaimed land for agriculture/construction.
Roadside Maintenance: Best Duty Mower manages slope/embankment vegetation; robotic slope mower trims roadside grass for safety and visibility.
Ecosystem Rehabilitation: Best Duty Mower controls invasive species; robotic slope mower cares for native grasslands without disrupting habitats.
Slope & Mountain Operation: Both work on steep, rugged ground—Best Duty Mower for consistent mulching, robotic slope mower for stable robotic grass trimming (high traction).

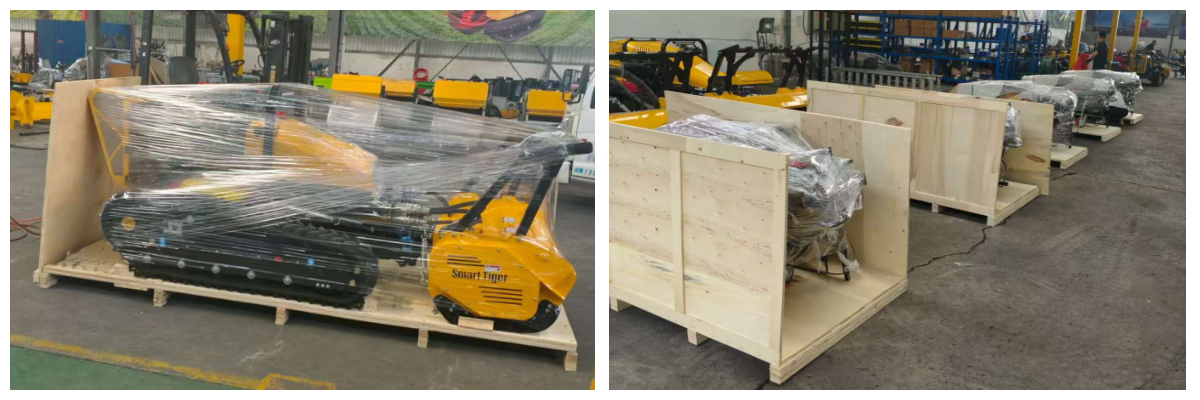

Packaging & Shipping
Packaging: Remote Mulcher & 40-Type Full Hydraulic Robotic Slope Mower (For Mowing Grass On A Slope)
Element-Sealed Wrapping: Both machines (including the one for Mowing Grass On A Slope) are wrapped in clear protective film to shield against dust, humidity, and surface abrasion during shipment.
Sturdy Pallet Foundation: Mounted on robust wooden pallets, they enable safe forklift handling across ports, warehouses, and work sites.
Reinforced Export Crating: For overseas/long-haul transport, units are secured in solid wooden crates to withstand impacts, compression, and handling stresses.
This structured packaging ensures your Self-Propelled Mulcher and 40-type Full Hydraulic Robotic Slope Mower (for Mowing Grass On A Slope) arrive intact, fully safeguarded, and operation-ready.
Company Profile

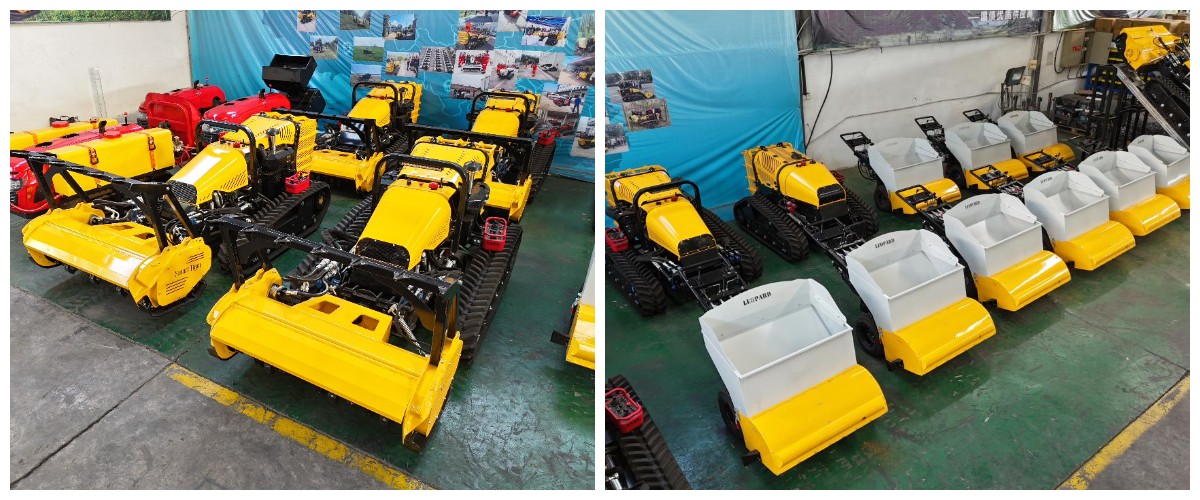

Qingdao Huaying Intelligent Equipment Co., Ltd.—a subsidiary of Shandong Hongchuan Machinery—specializes in R&D, manufacturing, and sales of small-to-medium-sized intelligent equipment, including the 40-type Full Hydraulic Robotic Slope Mower (also ideal as Mowers Good For Hills).
Based in Jining, China, we focus on delivering efficient, user-friendly solutions (such as the 40-type mower, one of the Mowers Good For Hills) for landscaping, road maintenance, orchard care, and more.
Backed by strong technical expertise and an innovation commitment, we help customers tackle real-world challenges with reliable, adaptable machinery like the 40-type Full Hydraulic Robotic Slope Mower (suited for Mowers Good For Hills).
Why Choose Us?
Qingdao Huaying blends industry expertise and cutting-edge engineering to deliver high-performance machines—including the Remote Forestry Mulcher (an excellent Best Duty Mower) and 40-type Full Hydraulic Robotic Slope Mower. Both feature full remote/robotic operation for top safety and efficiency: the Best Duty Mower (Mulcher) handles tough terrain/steep slopes for heavy clearing, while the robotic slope mower excels at precise steep-slope grass trimming.
Rooted in reliable manufacturing, innovation, and field insight, our equipment offers:
Dual safety systems + automatic shutdown for safe slope work;
High-performance tungsten blade mulching (Best Duty Mower) & robotic slope trimming (slope mower) with strong terrain adaptability;
Quick attachment swaps for diverse needs;
Smart diagnostics + real-time monitoring;
Fast maintenance + transport-friendly design (reduces downtime).
For land clearing, vegetation management, steep-slope care, or environmental restoration, our intelligent equipment (including the Best Duty Mower) maximizes productivity while minimizing risk.
