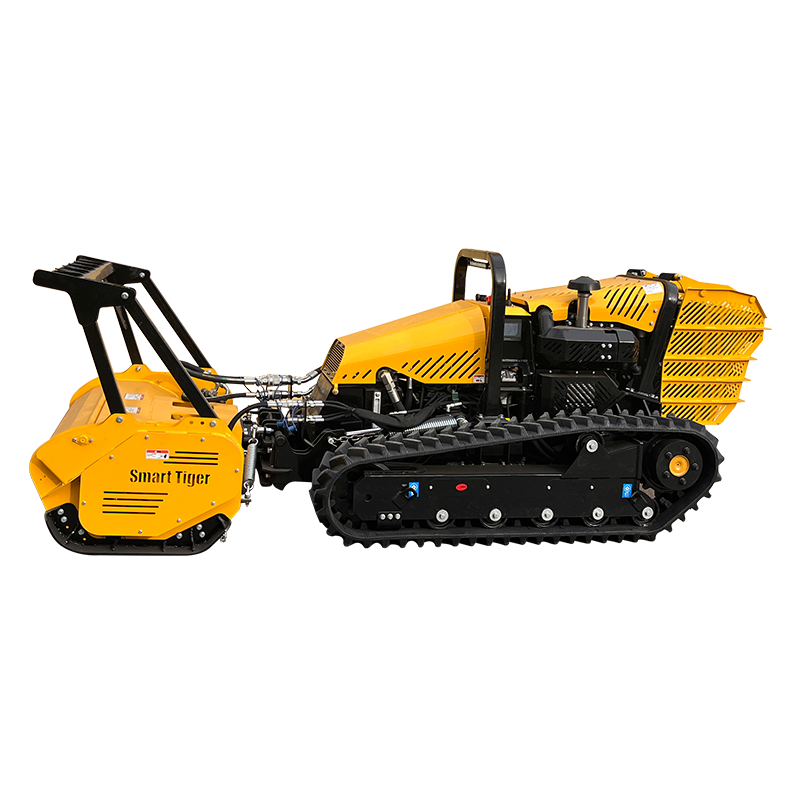

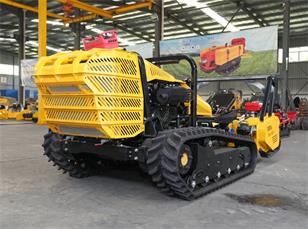

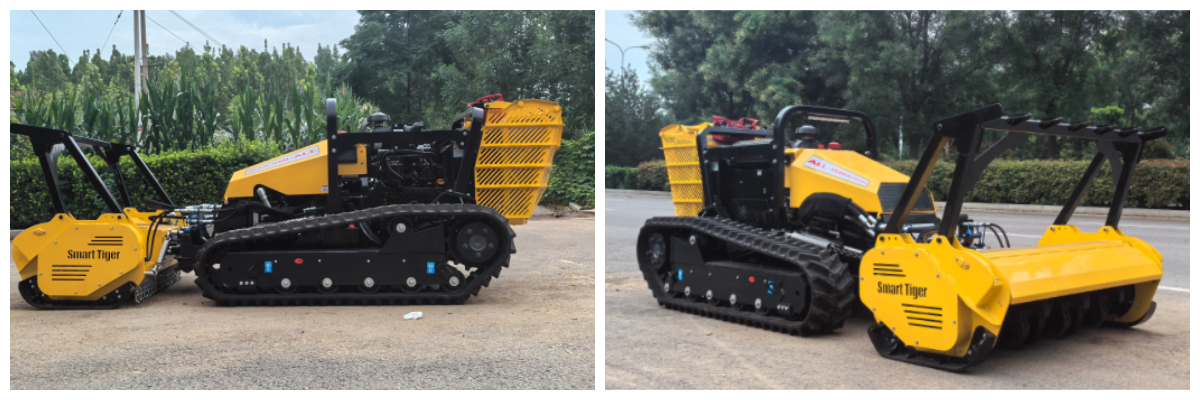

Remote Control Lawn Mower With Tracks
Slope Stability – For safe operation on steep terrain, the remote control lawn mower with tracks features automatic brake correction, which adjusts braking force in real time to maintain stability and avoid tipping.
Efficient Cooling & Cleaning – The remote control lawn mower with tracks adopts a dual oil-water cooling system paired with a reversible fan and dust removal mechanism, ensuring reliable heat dissipation and reducing dust buildup to prolong component life.
Product Introduction
The Tracked Remote Control Lawn Mower, Robotic Mulcher, and Robotic Forestry Mulcher form versatile, high-performance vegetation management equipment—specialized for challenging terrain and steep slopes.
All three integrate core safety features: tilt sensors, over-angle alarms, and automatic shutdown. These ensure maximum operational safety: the tracked mower uses them for lawn care, the Robotic Mulcher for standard vegetation management, and the Robotic Forestry Mulcher for more intensive forestry-focused clearing tasks.
Product Details

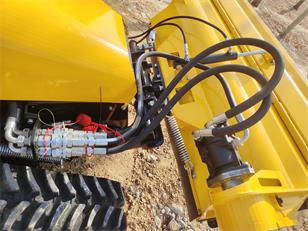

Equipped with Continental (Germany) or Yokohama (Japan) hydraulic hoses for durability and reliability. |

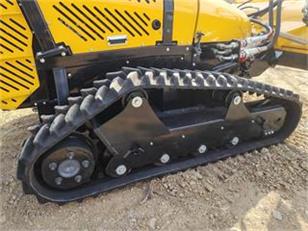

| Fitted with heavy-duty rubber tracks featuring reinforced anti-slip treads for enhanced traction and stable mobility. |
|
 | Dual-direction fan system with integrated cooling ensures optimal temperature control and automatic dust removal. |
| Remote-controlled mulching head with stepless speed adjustment and seamless forward/reverse rotation switching. |
Technical Parameters
Parameter | Specification | Parameter | Specification |
Model | HYZH-40 | Pressure | 250bar |
Engine Brand | YANMAR | Headlight | LED |
Fuel | Diesel | Tool Rotation Speed | 2500rpm |
Fuel Tank Capacity | 28L | Tool Rotation Direction | Forward and reverse (bidirectional 0-100% stepless adjustable) |
Torque | 107.1Nm | Control of Attachment Front Cover Opening/Closing | Remote control |
Fuel Injection Method | Direct injection | Tool Material | Tungsten steel |
Rated Power | 28.2Kw | Working Width | 1200mm |
Transmission Mode | Hydrostatic precision control | Number of Tools | 27 |
Cooling Method | Oil-air hybrid cooling | Crushing Diameter | 100mm |
Vertical Obstacle Crossing Height | 500mm | Forearm Lifting Height | -200mm to 500mm |
Wading Depth | 500mm | Supported Slope | Meets working conditions with a slope angle of 55° |
Departure Angle | 30° | Dimensions | 3230mm × 1450mm × 1420mm |
Straight-line Deviation Angle | 0.3% | Self-weight | 1840kg |
Topsoil Backfilling Depth | 20mm | Maximum Traction Force | 25KN |
Working Distance of Remote Control System | >150m | Ground Clearance | 170mm |
Allowed Operating Inclination Angle | 60° in any direction (after engine optimization) | Attachment Terrain Matching | Yes (matches terrain undulations within ±10°) |
Hydraulic Pump | Piston pump + gear pump | Steering | Skid steering, supporting in-place steering |
Drive Motor | High-torque motor | System Allowed Operating Inclination Angle | ≥80° in any direction (after hydraulic system optimization) |
Hydraulic Tank Capacity | 26L (40L in the system) | Hydraulic Flow of Reclamation Attachment | 84L/min |
Stepless Speed Control | Working speed: forward/reverse 0-4 Km/h; Transfer speed: forward/reverse 0-10.2 Km/h | Parking Mode | Remote control. The parking switch ensures stable parking of the equipment. The parking knob enables on-site parking and electronic handbrake function, effectively ensuring safety, preventing sliding, and avoiding safety accidents caused by misoperation. |
Rubber Track (Standard) | High-tooth rubber track (supports 55° slope working conditions). Special working condition rubber track with teeth twice as high as ordinary/common tracks on the market, achieving strong grip, friction, and adaptability to various terrains | Proportional Joystick | Supports joystick direction switching for convenient operation when driving with the front or rear of the machine forward. Direction switching (forward/reverse) can be realized via the knob switch, which is more efficient without the need for U-turn. |
Frequency | 2.4G | Battery | 2 built-in rechargeable lithium batteries per unit, supporting self-charging |

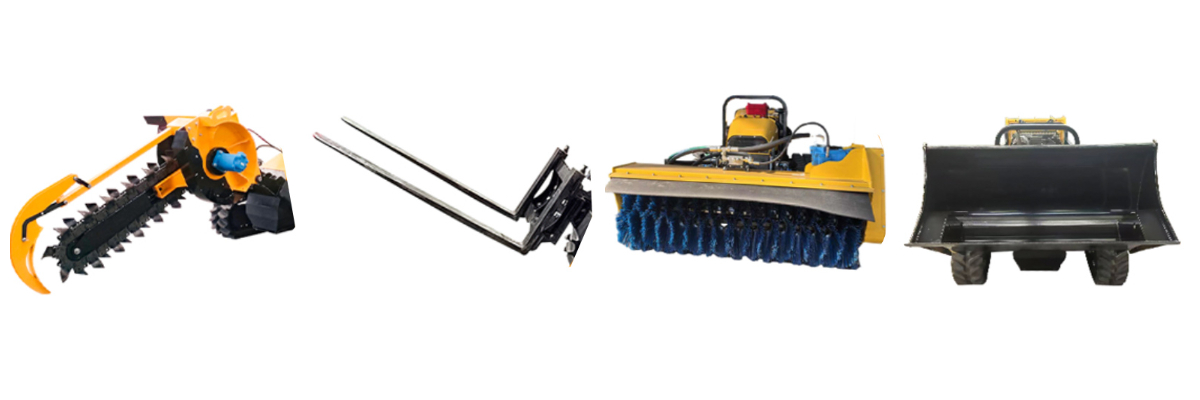

Optional Attachments
Application Scenarios
These three tools are engineered for demanding outdoor environments, with scenarios as follows:
Forestry Clearing: Remote Forestry Mulcher removes shrubs/undergrowth/small trees; Tracked Remote Control Lawn Mower trims forest-edge grass; Diesel Hydraulic Grass Shredder handles grass/shrub shredding.
Orchard Maintenance: Mulcher cleans pathways (pest prevention); Tracked Lawn Mower neatens orchard lawns; Shredder processes orchard grass clippings.
Land Reclamation: Mulcher preps rough terrain; Tracked Lawn Mower clears reclaimed-land grass; Shredder shreds vegetation for soil improvement.
Roadside Management: Mulcher clears slope weeds; Tracked Lawn Mower trims roadside lawns stably; Shredder aids in roadside grass waste processing.
Environmental Restoration: Mulcher reduces invasive plants; Tracked Lawn Mower maintains eco-area grass (no soil damage); Shredder supports vegetation waste recycling.
Mountain/Hillside Operations: All stay stable on steep terrain—mulcher for heavy clearing, Tracked Lawn Mower for hillside grass care, Shredder for slope grass shredding.
Packaging & Shipping
To ensure every Remote Forestry Mulcher and remote control lawn mower with tracks arrive safely in perfect condition, we apply a secure, professional packaging process:
Dustproof & Moisture-Resistant Wrapping: Each machine (mulcher and remote control lawn mower with tracks) is carefully wrapped in transparent plastic film, shielding against dust, moisture, and minor scratches during transit.
Palletized Base for Easy Handling: Units are placed on sturdy wooden pallets, enabling efficient loading, unloading, and forklift access at ports or job sites.
Heavy-Duty Wooden Crates: For long-distance and international shipments, both machines are enclosed in reinforced wooden crates, providing robust protection against impacts, compression, and other shipping hazards.
This multi-layered approach minimizes transit risks, ensuring all machines arrive fully protected, damage-free, and ready for immediate deployment.
Company Profile
Qingdao Huaying Intelligent Equipment Co., Ltd.
A subsidiary of Shandong Hongchuan Machinery, we specialize in R&D, manufacturing, and sales of small-to-medium intelligent equipment—including the Tracked Remote Control Lawn Mower and Robotic Forestry Mulcher.
Based in Jining, China, we deliver efficient, user-friendly solutions (Tracked Remote Control Lawn Mower, Robotic Forestry Mulcher) for landscaping, road maintenance, orchard care, and more.
Backed by strong technical expertise and an innovation commitment, we help customers tackle real-world challenges with reliable, adaptable machinery like these two core products.
Why Choose Us?
We combine industry expertise and cutting-edge engineering to deliver top-tier equipment—including the Remote Forestry Mulcher, Tracked Remote Control Lawn Mower, Diesel Hydraulic Grass Shredder, and Heavy Duty Robot Lawn Mower. All feature full/robotic control for max safety/efficiency: the mulcher handles tough terrain/steep slopes, tracked mower excels at stable uneven-ground grass care, shredder specializes in efficient grass shredding, and the heavy-duty robot mower delivers robust automated grass management.
Rooted in reliable manufacturing, innovation, and field insight, our machines offer:
Dual safety systems + automatic shutdown (safe for slopes);
Tungsten-blade mulching, track-based cutting, hydraulic shredding, and robot-powered grass care—all with strong terrain adaptability;
Quick attachment replacement, smart diagnostics + real-time monitoring;
Fast maintenance + transport-friendly design (reduces downtime).
For land clearing, vegetation management, grass care, or environmental restoration, our equipment maximizes productivity while minimizing risk.
