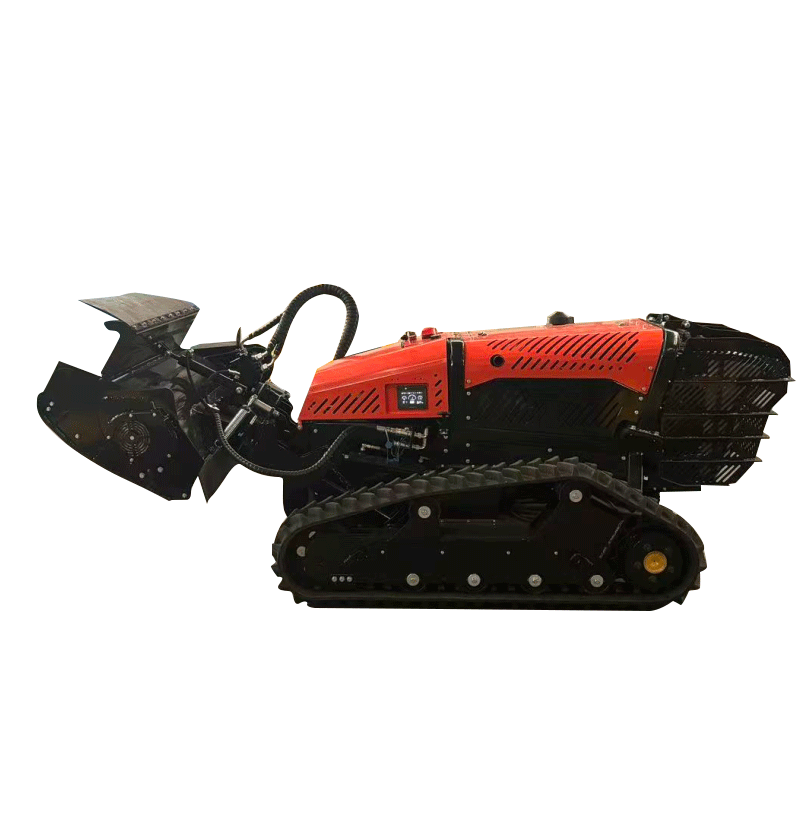

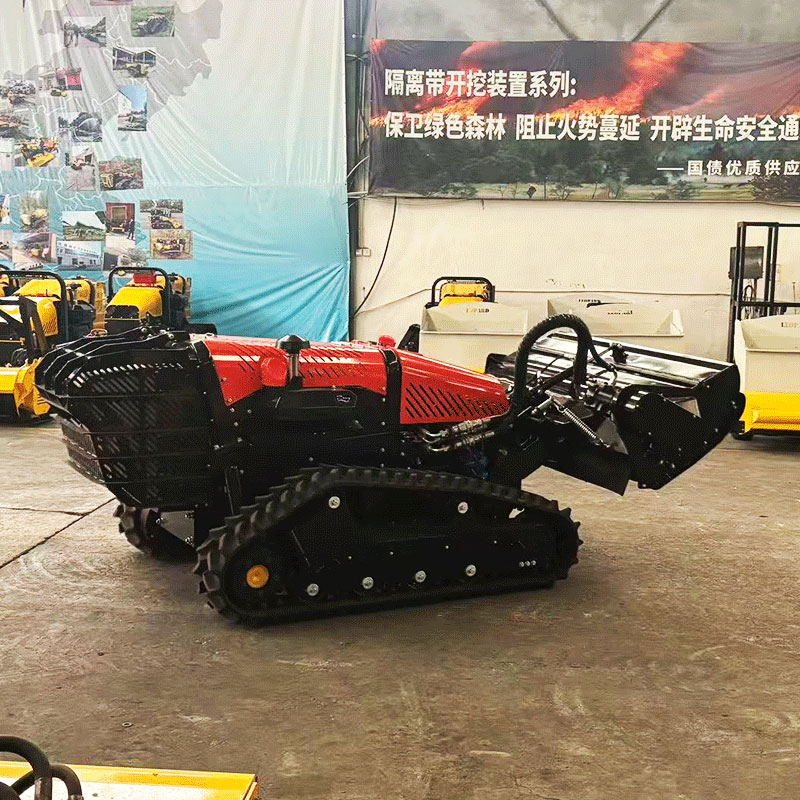

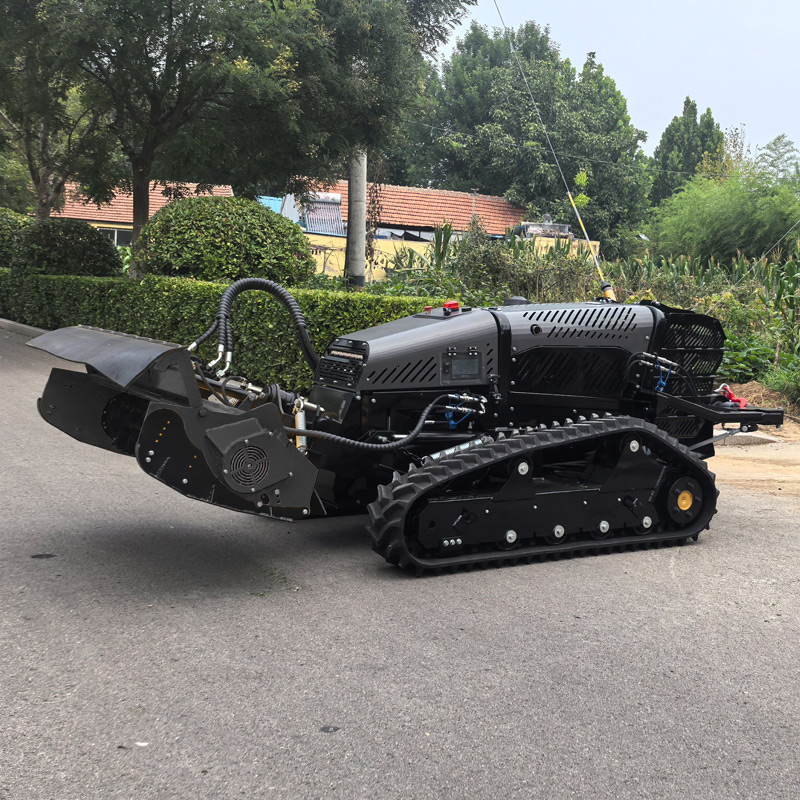

Remote Control Track Mower
Core Power and Hydraulic System: A European-Standard Powerhouse
Smartiger eschews generic engines in favor of the globally renowned YANMAR 3-cylinder water-cooled diesel engine. Compliant with European Stage V emission standards, this engine delivers a robust 38.3 horsepower (28.2 kW) of power. The water-cooled design ensures stability during prolonged, high-load operations, while the substantial 28-liter fuel tank provides exceptional endurance.
Product Introduction
Smartiger Remote Control Track Mower: Redefining Standards for Complex Terrain Operations
In the fields of landscaping, mountain agriculture, and slope management, terrain often dictates the difficulty of the job. The Smartiger Remote Control Track Mower was born to solve this pain point. It is not just a machine, but a tireless "Steel Gardener," designed to conquer steep slopes, wetlands, and rugged terrain, liberating operators from dangerous and strenuous physical labor.
Regarding transmission, Smartiger demonstrates industrial-grade specifications. It employs a triple piston and gear pump combination from Bondioli & Pavesi, paired with Poclain high-torque travel motors and Danfoss high-speed flail motors. This fully hydraulic drive system not only offers extremely high power transmission efficiency but also achieves independent control circuits for the flail head and travel, ensuring smooth operation of all components even when encountering resistance.
Remote Control Operation and Safety: An Intelligent Human-Machine Separation Experience
As a modern remote control track mower, Smartiger places operator safety at the forefront.
Beyond Visual Line of Sight Control: Equipped with a 2.4G industrial-grade remote control system with an effective operating radius of over 150 meters. Operators can stand in a safe zone and precisely control the machine's forward/reverse movement and steering via proportional joysticks.
Ultimate Climbing Ability: Thanks to the heightened teeth rubber track design and low center of gravity structure, this machine can easily handle extreme slopes of up to 55°.
Multiple Safety Protections: Built-in intelligent sensors trigger audio and visual alarms when the slope reaches 50°, and automatically cut the engine at 55° to prevent rollovers. Additionally, it features automatic shut-off for signal loss, automatic protection against hydraulic/lube oil pressure anomalies, and a one-touch emergency stop, ensuring comprehensive operational safety.
Product Details
Versatile Attachments and Operational Performance: An All-in-One Powerhouse
Smartiger is more than just a mower; it is a versatile work platform. Its standard Flail Head features a 1400mm cutting width and utilizes Y-type blades, capable of effortlessly handling grass and shrubs up to 50mm in diameter.
Even more impressive are the optional Mulcher and Branch Crusher attachments. The Branch Crusher, in particular, can process timber up to 150mm
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
380kgs | ||
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Optional Attachments
Application Scenarios
1. Extreme Steep Slopes and Embankment Management
This is Smartiger's core area of expertise.
River Levees and Reservoir Dams: Many hydraulic facilities feature steep slopes with soft soil, where manual weeding poses a high risk of slipping and falling. Smartiger's heightened tooth-pattern tracks grip the ground firmly, allowing for safe operation on extreme slopes of up to 55°.
Highway and Railway Embankments: The slopes alongside highways often have complex terrain. Smartiger's remote control capability allows operators to work from a safe zone, eliminating the need to take risks near traffic.
2. Complex Orchards and Mountain Agriculture
Terraced and Hilly Orchards: In vineyards, apple orchards, or tea plantations, the ground is often uneven. Smartiger's track design exerts low ground pressure, preventing soil compaction and protecting crop root systems.
Under-forest Weeding and Mulching: Its Y-type blades are capable of not only cutting grass but also shredding shrubs and weeds up to 50mm in diameter. The resulting mulch is returned directly to the soil as fertilizer, achieving the goal of "nourishing the land with grass."
3. Wasteland Reclamation and Vegetation Clearing
Construction Debris Cleanup and Land Clearing: Facing wastelands overgrown with thorns and miscellaneous trees due to long-term neglect, Smartiger, equipped with a Branch Crusher, can process timber up to 150mm in diameter. It directly "consumes" and pulverizes coarse vegetation on site, eliminating the need to hire additional excavators or grinders.
Forest Fire Breaks: It can rapidly clear flammable shrubs and weeds along forest edges to create firebreaks.
4. Urban Green Space Maintenance
Remote Control Mower on Tracks: Serves urban road parks, curb-side belts, narrow medians; compact tracks access gaps, remote ensures traffic safety.
