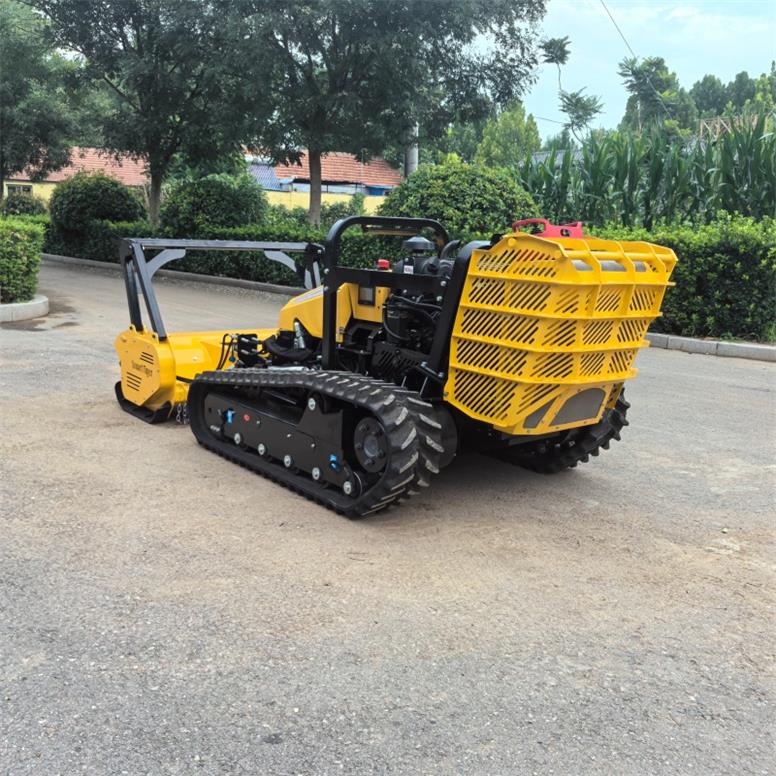

All-Terrain Lawn Mower

Product Introduction

Fully Hydraulic Transmission: Adopts a Hydrostatic Precision Control transmission mode, equipped with a combination of piston and gear pumps along with high-torque drive motors. This design provides stepless speed variation and smooth power output, making it ideal for precise maneuvering on complex terrains.

Independent Oil Circuit Design: Features separate oil circuits for the mowing platform, travel drive, and operational actions. This ensures that mowing efficiency remains unaffected while climbing slopes or performing other maneuvers, guaranteeing extremely high system stability. The total hydraulic tank capacity is 40L (with an effective working capacity of 26L).

Remote Control Track Mower Superior Off-Road and Climbing Capabilities

Extreme Slope Operation: Specifically designed for steep slopes, supporting operation on gradients up to 55°.

Safety Mechanisms: Audible and visual alarms activate when the tilt angle reaches 50°; the machine automatically shuts down at 55° to prevent rollovers.

Chassis Stability: Through optimization, the hydraulic system allows tilting up to 80° in any direction, while the engine can tolerate tilts up to 60° in any direction, ensuring normal lubrication and operation even at extreme angles.

Specialized Tracks: Comes standard with high-tooth rubber tracks. The tooth height is twice that of ordinary market products, providing exceptional grip and friction to easily handle muddy, slippery, or uneven ground.

Chassis Structure: The complete machine weighs 1250 kg, offering solid ballasting for more stable travel. The forearm lifting capacity reaches 750 kg, with a lifting range from -200 mm to 500 mm, enabling limited front-end loading or obstacle clearing capabilities.

Product Details

Technical Parameters

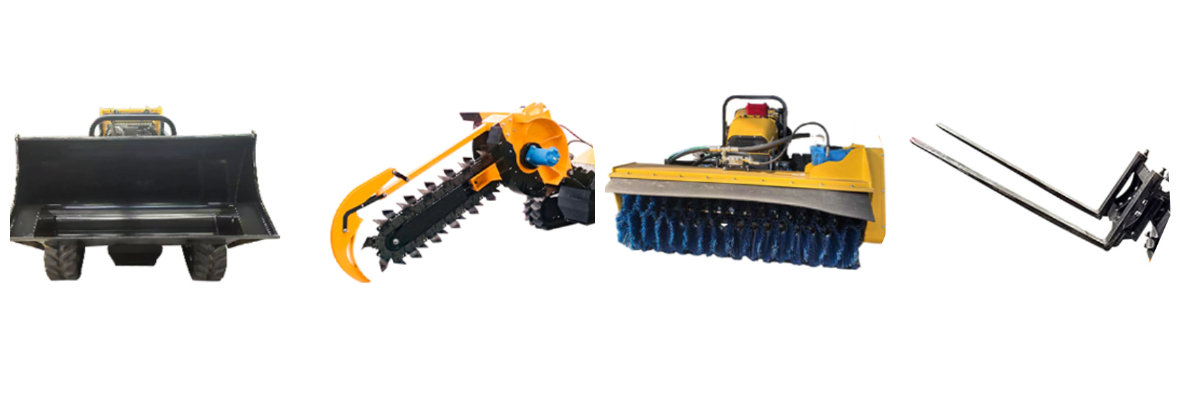

Optional Attachments

Application Scenarios

Protecting Dam Structures: Precision Maintenance Without Damage

Independent Hydraulic System & Smooth Drive: Utilizing Hydrostatic Precision Control, the system delivers extremely smooth power output with zero impact or vibration. This prevents heavy machinery from disturbing the soil structure of the dam during operation, effectively avoiding surface loosening or collapse caused by vibrations.

Adjustable Cutting Height: Supports three-level adjustment (30mm–90mm). In dam maintenance, it is generally unnecessary—and often detrimental—to uproot grass completely, as this destroys the root systems that stabilize the soil. This equipment allows for precise setting of the cutting height, effectively removing tall shrubs and weeds (which could otherwise penetrate deep enough to damage anti-seepage layers or obstruct inspection lines) while preserving the slope-protecting turf. This achieves the goal of "clearing weeds without damaging the slope."

Front Arm Lifting Function: Equipped with a front arm lifting capacity of 750 kg, it can clear fallen trees, accumulated debris, or obstacles on the dam and dredge drainage channels, eliminating the need to deploy additional cranes.

High Efficiency & All-Weather Operational Capability

Sustained Operation: Featuring a large 28L fuel tank and a powerful 38.3 HP diesel engine, the machine supports long-duration continuous work on a single tank, making it ideal for rapid inspection and maintenance of extensive dam lines.

Adaptability to Complex Environments: Whether operating on dry, hard soil slopes under scorching sun or on muddy surfaces during the rainy season, its water-cooled engine and oil-air mixed cooling system (with optional self-cleaning features) ensure the machine remains cool and故障-free (fault-free), guaranteeing reliable performance in extreme conditions.

Packaging & Shipping

Heavy-Duty Remote Controlled Lawn Mower: Advanced Shipping & Packaging Protocol

To guarantee the pristine condition of our Heavy-Duty Remote Controlled Lawn Mowers during global transit, we employ a multi-layered protective strategy designed to withstand rigorous logistics challenges:

Climate & Abrasion Shielding: Every unit is hermetically sealed in high-grade transparent polymer wrapping. This barrier provides robust defense against airborne particulates, humidity ingress, and superficial scuffs, ensuring the mower's finish remains flawless from factory to field.

Optimized Logistics Base: Each machine is securely anchored to industrial-strength timber pallets. This configuration facilitates seamless fork-lift maneuverability, drastically reducing handling time and enhancing safety during warehouse storage, port transshipment, and final site deployment.

Impact-Resistant Outer Casing: For extended haulage or cross-border exports, the palletized units are encased in reinforced, heavy-duty wooden crates. These structures are engineered to absorb shock, resist compression forces, and mitigate the structural stresses inherent in long-distance freight, offering supreme protection for the equipment inside.

This end-to-end packaging architecture significantly mitigates transit hazards, ensuring your Heavy-Duty Remote Controlled Lawn Mowers arrive completely intact, operational, and ready for immediate deployment upon unboxing.

Company Profile

Qingdao Huaying Intelligent Equipment Co., Ltd.

As a dedicated subsidiary of Shandong Hongchuan Machinery, we pioneer the research, development, and production of next-generation intelligent machinery. Our core portfolio features advanced terrain-adaptive solutions, specifically the Tracked Remote Control Lawn Mower, the Heavy Duty Remote Controlled Lawn Mower, and our specialized Slope Lawn Mower.

Headquartered in Jining, China, we provide robust, intuitive operational systems tailored for diverse environments ranging from intricate landscaping and highway upkeep to orchard management and steep embankment maintenance. By integrating the versatile Slope Lawn Mower alongside our existing heavy-duty tracked models, we address the unique demands of high-gradient terrains with unmatched precision.

Driven by deep engineering expertise and an unwavering dedication to innovation, we empower global clients to overcome complex outdoor challenges. Our suite of reliable, adaptable machines—including the agile Slope Lawn Mower—delivers superior performance in the world’s most demanding working conditions.

Why Choose Us?

1. Specialists in "Extreme Terrain," Filling a Market Gap
We deeply understand the limitations of traditional machinery when operating on steep, slippery slopes. Our core product lineup—featuring the Tracked Remote Control Lawn Mower, the Heavy Duty Remote Controlled Lawn Mower, and our specialized Slope Lawn Mower—is engineered to conquer gradients of up to 55 degrees. Whether tackling flood control embankments, highway cut-slopes, or mountainous orchards, we provide a safe "human-machine separation" operational solution, completely eliminating the risk of personnel landslides.

2. Backed by Industry Giants, Rooted in Deep Expertise
Leveraging the robust manufacturing heritage of our parent company, Shandong Hongchuan Machinery, we operate with a mature R&D framework and rigorous production standards. From our hydrostatic precision control systems to independent anti-rollover protection mechanisms, every unit embodies years of technical accumulation in the intelligent equipment sector. We go beyond simple assembly; through deep-level research and development, we guarantee exceptional stability and durability even under the most extreme working conditions.

3. A Philosophy of Precision Maintenance: "Clearing Weeds Without Damaging Slopes"
We recognize the critical importance of ecological slope protection. Our equipment supports multi-level cutting height adjustments (30mm–90mm). Combined with smooth hydraulic drive technology, this allows for the effective removal of hazardous shrubs and weeds while perfectly preserving the soil-binding root systems. This approach prevents vibration-induced damage to dam or slope structures. Our philosophy of "precision maintenance" empowers clients to ensure safety while simultaneously extending the service life of their infrastructure.
