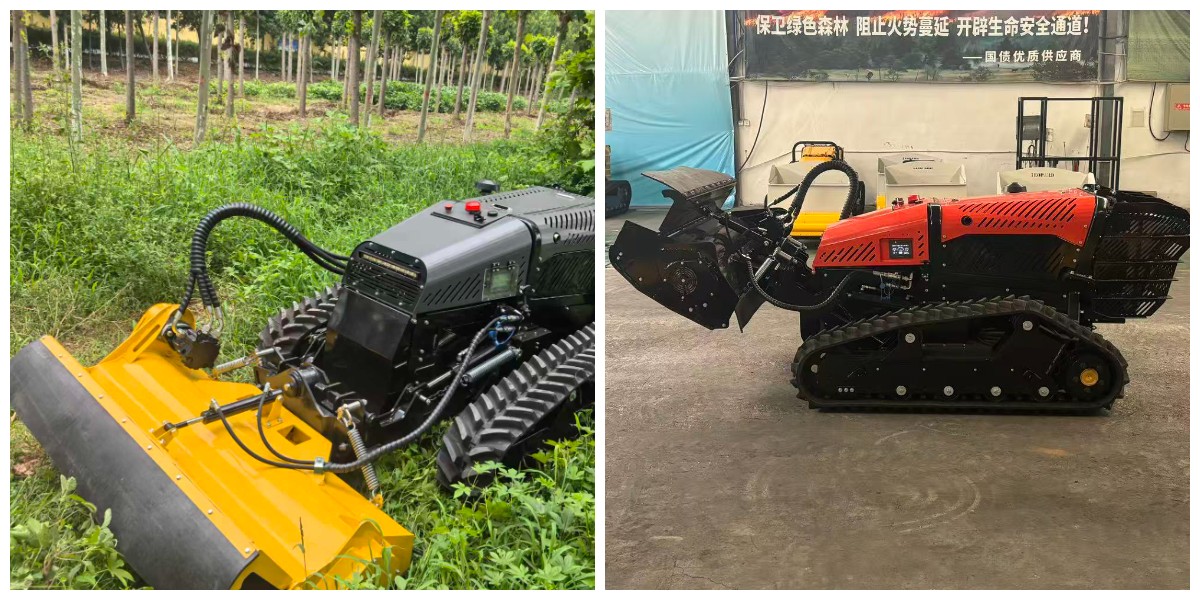

Remote control lawn mower for steep slopes
Tailored for high - efficiency and safe operation on steep terrain, the Smartiger remote - controlled steep - slope lawn mower integrates advanced engineering and robust components, delivering exceptional performance for demanding landscaping and vegetation management tasks. Its core advantages and features are elaborated as follows:
1. Powerful and Eco - friendly Powertrain
Equipped with a YANMAR 3 - cylinder 4 - cycle inline water - cooled diesel engine complying with the European III emission standard, the mower generates a gross output of 28.2Kw (38.3Hp) @ 2600rpm, ensuring robust power for heavy - duty operations. With a 28 - litre fuel tank capacity, it supports extended working hours. The optional self - cleaning function, available in both manual and automatic modes, enhances operational convenience and equipment maintenance efficiency.
Product Introduction
Remote-Control Lawn Mower for Steep Slopes: Professional Solution for Challenging Terrain Vegetation Management
The full-featured 2.4G remote control system enables operators to complete all operations from a safe distance of over 150m. The proportional joysticks allow for stepless adjustment of travel speed and cutting intensity, while one-click control of engine start/stop, lighting, horn and attachment operation simplifies the workflow and reduces operational thresholds. The remote control is equipped with interchangeable and rechargeable batteries, with on-board charging capability, ensuring uninterrupted operation without power supply constraints.
In terms of equipment durability and maintainability, the mower is built with high-strength structural components and quick-change hydraulic couplers, facilitating rapid replacement of cutting attachments such as flail heads and mulchers to adapt to different vegetation management needs. The real-time monitoring system keeps track of key operational data including water temperature, oil temperature, oil level, engine RPM and attachment blockage status. Once an abnormal condition is detected, the system triggers an alarm and corresponding protective actions promptly, minimizing equipment damage and maintenance costs.
With its optimized overall dimensions and heightened teeth rubber tracks, the mower combines excellent passability with strong terrain adhesion. It can easily access narrow slope areas that are inaccessible to traditional equipment, and the rubber tracks effectively reduce damage to the ground while ensuring stable traction on steep slopes. Whether for large-scale slope greening projects, highway side slope maintenance or wilderness land clearance, this remote-control lawn mower for steep slopes stands out as a professional and reliable choice for international B2B clients.
Product Details
As a high-performance intelligent equipment tailored for vegetation management on challenging terrain and steep slopes, the Remote-Control Lawn Mower for Steep Slopes integrates robust power configuration, precision control technology and comprehensive safety protection. It is dedicated to providing international clients with efficient, reliable and low-risk operation solutions for slope greening maintenance, wilderness clearance and other demanding tasks. Its core configurations and competitive advantages are detailed as follows:
Equipped with a high-torque hydrostatic drive system paired with an intelligent slope correction function, the mower achieves stable and smooth operation on slopes up to 55° in all directions. The built-in high-precision tilt sensor triggers an audible and visual alarm automatically when the slope reaches 50°, and executes an emergency shutdown at 55° to fully eliminate operational risks caused by over-tilting. Complemented by the skid-steering system with pivot-steering support, it ensures exceptional maneuverability even on uneven steep terrain, enabling precise vegetation cutting without deviation.
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
380kgs | ||
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Optional Attachments
Application Scenarios
Multifunctional Wireless Remote Control Lawn Mower: Versatile Applications Across Harsh Outdoor Environments
Engineered with robust power systems, precision wireless control technology and superior terrain adaptability, the Multifunctional Wireless Remote Control Lawn Mower is a professional-grade solution tailored for diverse harsh outdoor vegetation management tasks. Its integrated design combines heavy-duty clearing capabilities with delicate turf maintenance performance, making it indispensable across forestry, grassland, transportation infrastructure and water conservancy sectors. Below are its key application scenarios and specialized operational value:
Forestry Sector: In forested areas, this wireless remote control lawn mower plays a dual role in ecological management and fire prevention. It efficiently undertakes understory vegetation thinning, removing low shrubs and combustible undergrowth to establish reliable firebreaks—critical for mitigating forest fire risks. For gentle forest slopes and forest edge zones, the mower’s adjustable cutting height (30mm-90mm) and auto-float function ensure neat grass trimming without damaging young saplings or disturbing the forest floor ecosystem. The 2.4G wireless remote control with over 150m working range allows operators to maneuver the equipment safely from a distance, avoiding potential hazards such as hidden tree stumps or uneven terrain.
Grassland Management: Targeting grassland maintenance and fire prevention needs, the mower excels at dead grass removal and firebreak construction. Equipped with high-performance Y-flails, it can effortlessly tackle dense grass clusters and light woody growth up to 30mm in diameter, while its skid-steering system enables flexible movement even in uneven grassland terrain. For large-scale grassland areas requiring uniform trimming, the cruise control function (one-click release) ensures consistent travel speed and cutting quality, significantly boosting operational efficiency. Meanwhile, its rubber track design minimizes soil compaction, protecting the grassland ecosystem.
Packaging & Shipping

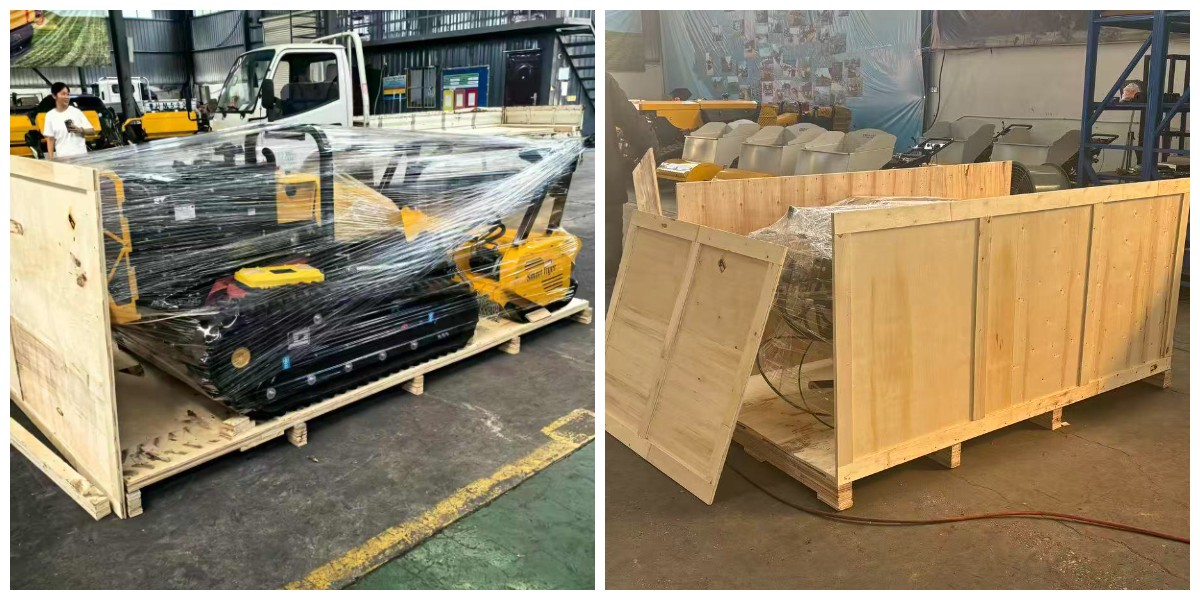

Remote Control Lawn Mower for Hills: Ensuring Pristine Delivery
To guarantee that the Remote Control Lawn Mower for Hills—engineered for heavy-duty vegetation management and sloped turf care on hilly terrain—arrives at the destination in intact, immediately operable condition, we implement a professional, tiered packaging system tailored to the equipment’s structural characteristics and international transportation requirements. The comprehensive packaging solutions are detailed as follows:
Precision Inner Wrapping for Component Protection: The entire body of the Remote Control Lawn Mower for Hills, including its core components such as the flail head, hydraulic system, and remote control receiver, is meticulously wrapped in high-tensile transparent plastic film. This inner layer provides dual protection against dust intrusion and moisture erosion during transit. Additionally, dedicated foam padding is added to vulnerable parts (e.g., LED headlamps, control panels, and quick-change couplers) to prevent minor scratches and impact damage to precision components.
Reinforced Palletization for Secure Handling: Considering the mower’s overall weight (1250Kg for the main unit) and irregular structure, it is securely fastened to high-load-bearing wooden pallets using heavy-duty steel straps and anti-slip pads. This design not only ensures the equipment remains stable during loading, unloading, and transportation but also facilitates efficient forklift operation at ports, warehouses, or job sites, streamlining the logistics process for our B2B clients.
Company Profile
Our commitment to continuous innovation is vividly reflected in the Slope Lawn Mower and other product lines. Every unit is engineered to fuse durability, superior terrain adaptability, and smart remote control functionality: the wireless remote operation system enables safe maneuvering from a distance, while the quick-change attachment design enhances versatility for diverse vegetation management tasks. These features empower customers to significantly boost operational productivity, mitigate on-site safety risks, and improve overall work efficiency in challenging outdoor environments.
By integrating cutting-edge intelligent technology with pragmatic engineering insights, Qingdao Huaying has established a strong market reputation as a trusted partner for clients worldwide. We not only provide high-performance equipment like the Slope Lawn Mower but also offer comprehensive pre-sales consultation and after-sales support, striving to deliver tailored intelligent equipment solutions that meet the unique needs of international B2B customers across various sectors.
Why Choose Us?
Qingdao Huaying: Slope Lawn Mower – Engineered for Harsh Sloped Terrain
At Qingdao Huaying Intelligent Equipment, we integrate profound industry insights with cutting-edge engineering to develop machinery tailored for the most demanding outdoor conditions. Our Slope Lawn Mower is specifically engineered to excel in sloped turf maintenance and vegetation management on rugged hillsides and steep inclines, featuring full wireless remote control to ensure peak operational safety and efficiency for operators.
Grounded in reliable manufacturing standards, continuous technological innovation, and extensive field application experience, our Slope Lawn Mower boasts the following core competitive features:
Dual-layer slope safety protection with automatic shutdown functionality: Equipped with high-precision tilt sensors, the mower triggers audible and visual alarms when the slope reaches 50°, and executes immediate automatic shutdown at 55°—ensuring foolproof operation on any steep terrain.
High-performance Y-shaped cutting flails and adaptive terrain-following system: The durable Y-flails efficiently handle grass and light woody growth up to 30mm in diameter, while the auto-float function enables the cutting head to follow ground contours with ±10° adjustment, guaranteeing uniform trimming quality on uneven slopes.
Tool-free quick-change attachment mechanism: Supporting seamless switching between standard flail heads and auxiliary maintenance attachments, the mower flexibly meets diverse work requirements such as sloped turf trimming, light undergrowth clearing, and road-adjacent green space maintenance.
Intelligent real-time monitoring and diagnostic system: Continuously tracks key operational metrics including hydraulic oil pressure, lubrication pressure, water/oil temperature, and engine RPM. Abnormal conditions trigger timely alerts and protective actions, ensuring reliable, hassle-free long-term operation.
Slope-optimized mobility and low-downtime design: Adopting heightened teeth rubber tracks for strong traction on slopes up to 55°, the mower features a transport-friendly structure. Its modular component design and easily accessible maintenance points enable fast routine servicing, minimizing operational downtime.
Whether maintaining sloped turf in municipal green spaces, trimming highway side slopes, managing grasslands on hillsides, or caring for forest edge vegetation, this intelligent Slope Lawn Mower is engineered to maximize operational productivity while significantly mitigating on-site safety risks—delivering consistent value for international B2B clients in landscaping and infrastructure maintenance sectors.
