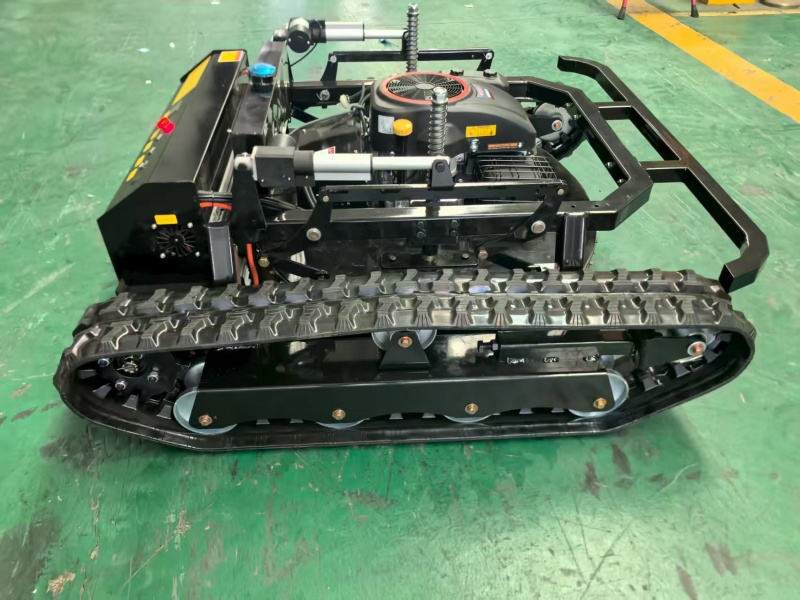

Tracked Tank Slope Mower
Constructed with heavy-duty, rigid chassis and ample dead load, this machine maintains outstanding traction and balanced weight distribution while in service. It effectively prevents slipping and front-end tipping mid-work. Perfectly suited for site clearance, shrub trimming and lawn trimming across uneven challenging landscapes: steep inclines, forest zones, PV power plant grounds, river embankments, uncultivated barren plots and fruit groves.
Equipped with a dual ignition setup, the equipment enables two startup modes: wireless remote on/off control and onboard electric ignition. Staff can conduct all cutting tasks remotely at a secure range, avoiding hazards such as ricocheting rocks and sharp thorny vegetation to maximize operational safety. All matched power engines fully comply with EU Stage V exhaust emission regulations.
Product Introduction
Equipped with a dual ignition setup, the equipment enables two startup modes: wireless remote on/off control and onboard electric ignition. Staff can conduct all cutting tasks remotely at a secure range, avoiding hazards such as ricocheting rocks and sharp thorny vegetation to maximize operational safety. All matched power engines fully comply with EU Stage V exhaust emission regulations.
This unit adopts a 24V brushless drive motor configuration, offering steady power transmission, minimal energy consumption and ultra-low malfunction probability, which extends continuous working hours and boosts overall drive efficiency.
Fitted with an all-in-one differential rear axle assembly, the machine realizes independent steering control for its left and right crawler tracks, plus zero-radius pivot turning, granting outstanding flexibility when navigating tight, confined working spaces.
It comes with a wireless lifting mechanism for the cutting attachment. Users can remotely modify the mowing clearance without stepping onto the job site. The quick adjustable cutting height adapts to diverse weed and bush growth conditions, cutting down manual labor input and shortening overall operation cycles.
Product Details
Dual Startup Mechanism & EU Stage V Certified Powertrain
Two independent startup solutions are integrated: local onboard electric ignition and wireless remote power switch. Operators can activate or shut down the machine with a single remote click, keeping a safe distance from dangerous work areas to prevent bodily harm from flying gravel and plant fragments. The complete equipment satisfies EU Stage V exhaust emission criteria, clearing regulatory export thresholds for Europe, North America and numerous international territories.
Diversified Engine Displacement Selections for Customized Power Output
Premium branded power assemblies are offered as configurable alternatives: 450CC RATO, 452CC/608CC/764CC/803CC Loncin, alongside the 810cc Briggs & Stratton lineup. The power spectrum spans light-duty land clearing machinery up to high-torque heavy-duty mulching equipment for thick undergrowth.
Small and medium-displacement variants: Optimized for cutting regular weeds and thin bush growth.
Large-displacement iterations: Engineered to tackle sturdy branches, dense woody scrub and overgrown wild vegetation. These power units maintain steady rotation under heavy loads without stallouts, catering to domestic construction, agroforestry ventures and bespoke overseas export orders.
Remote Operation Merits & Safety Upgrade Kits (Abundant Optional Attachments)
Industrial wireless remote transmitters (6C /7C series): Built with robust anti-jamming capabilities, sustaining consistent long-range control. They effectively counter electromagnetic interference prevalent in wooded zones and construction yards while delivering ultra-responsive command execution.
Remotely actuated work lamp accessory: Permits extended night shifts or operations within shaded forest terrain. Users toggle the lighting system remotely without physical proximity to the crawler unit.
Auxiliary warning beacon: Supplies visual hazard notifications to nearby staff during operation, elevating job site safety—perfect for construction worksites and forest fire barrier clearance assignments.
Electromagnetic stopping system & digital throttle (optional extras): The magnetic brake delivers dependable stopping force; it engages automatically once the remote controller is released to halt downhill sliding on sharp inclines and drastically boost operational security. The electronic throttle enables remote adjustment of engine rotational speed. Users can ramp up RPM for dense heavy vegetation and lower revolutions during light-duty tasks to curb fuel waste and operational noise emissions
Technical Parameters
| Item | Parameters |
|---|---|
| Machine Dimensions | L 1420mm × W 1320mm × H 620mm |
| Net Weight | Approx. 308KG (bare unit) |
| Standard Configuration | 24V brushless motor, integral rear axle with differential & remote‑controlled lifting, electric start + remote start‑stop, EU Stage V emission |
| Optional Accessories | 6C industrial remote controller, 7C industrial remote controller, lighting & remote‑controlled lighting, warning light, electromagnetic brake, electronic throttle |
| Brand | Displacement |
|---|---|
| RATO | 450CC |
| LONCIN | 452CC |
| LONCIN | 608CC |
| LONCIN | 764CC |
| LONCIN | 803CC |
| Briggs & Stratton | 810CC |
Application Scenarios
Agro & Fruit Plantation Application Scenarios
Mountain fruit farms, grape cultivation zones and citrus planting areas: Conduct inter-tree weed removal while fully safeguarding fruit tree root networks from damage.
Barren uncultivated land, forest tracts and evergreen sapling plantations: Execute land rehabilitation trimming and crush low-height bushy vegetation.
Grass ranch upkeep and unwanted vegetation removal for grazing fields.
Additional Application Fields
Vegetation removal along river levees, damp grass wetlands, hillside tourist zones and the outer perimeters of construction yards.
Packaging & Shipping
Multi-Layer Packaging Solution for Undamaged Global Shipment
We implement a two-tier packaging protection process to ensure every machine—precision lawn trimmers, wireless remote brush cutters and self-operating slope crawler mowers—arrives at client sites in perfect condition.
Full Industrial Stretch Film Wrapping (Universal for All Models)
Every device is entirely wrapped with thick industrial stretch plastic film. This outer shield shields vulnerable core components, such as gradient sensing modules and crawler assemblies on slope robotic mowers, anti-clog chassis of high-clearance versions, as well as gasoline engines and wireless control kits across all fuel-powered cutting machines. The film barrier blocks dust, moisture and minor surface abrasions during all transit stages.
Reinforced Wooden Crate Packaging (Specially for Ocean & International Deliveries)
All export-bound machines are securely fixed inside sturdy wooden shipping cases strengthened with metal corner fittings and custom-cut foam inserts. Additional shock-absorbing padding encircles radiator components and fuel tanks of crawler mulchers and petrol mowers. Compact foam-lined timber boxes contain remote brush cutters to prevent frame deformation. For high-clearance models and slope autonomous mowers, custom shaped foam supports lock balance bars and keep crawler structures aligned, with separate protective pads covering cutting blades. This comprehensive layered protection system eliminates transit scratches and structural harm, guaranteeing defect-free delivery to end-user worksites worldwide.
