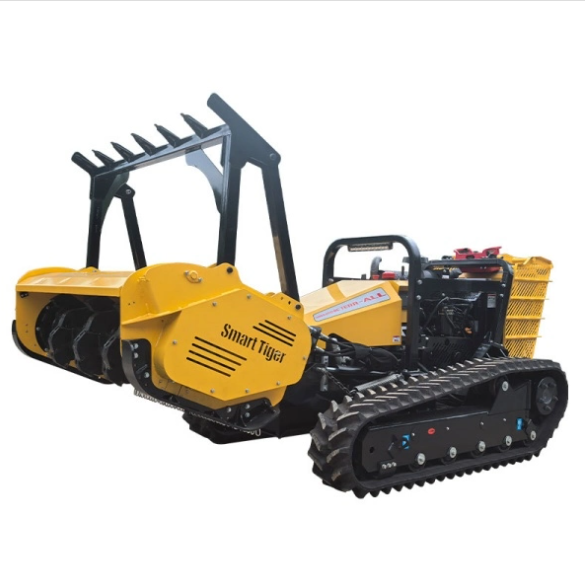

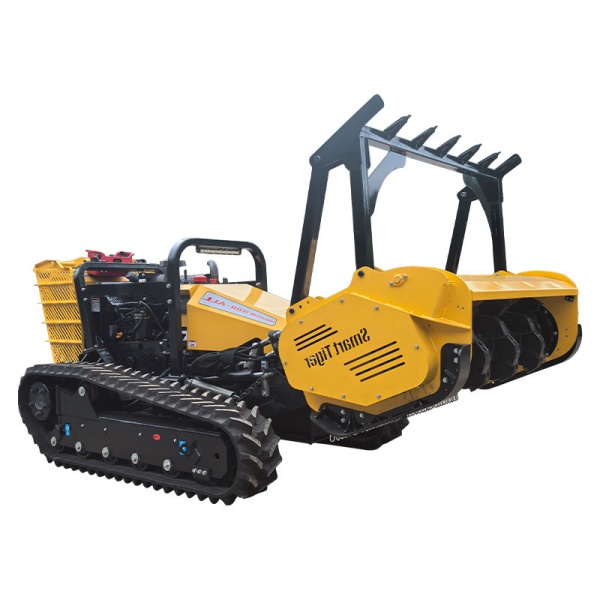

Heavy Duty Remote Control Lawn Mower
Slope-Ready Design: This heavy duty remote control lawn mower works on slopes up to 55° with advanced lubrication.
Stable Tracks: Anti-slip tracks + oil pan ensure safe slope operation for the heavy duty remote control lawn mower.
Remote Control: Wireless operation keeps operators safe—core for the heavy duty remote control lawn mower.
Product Introduction

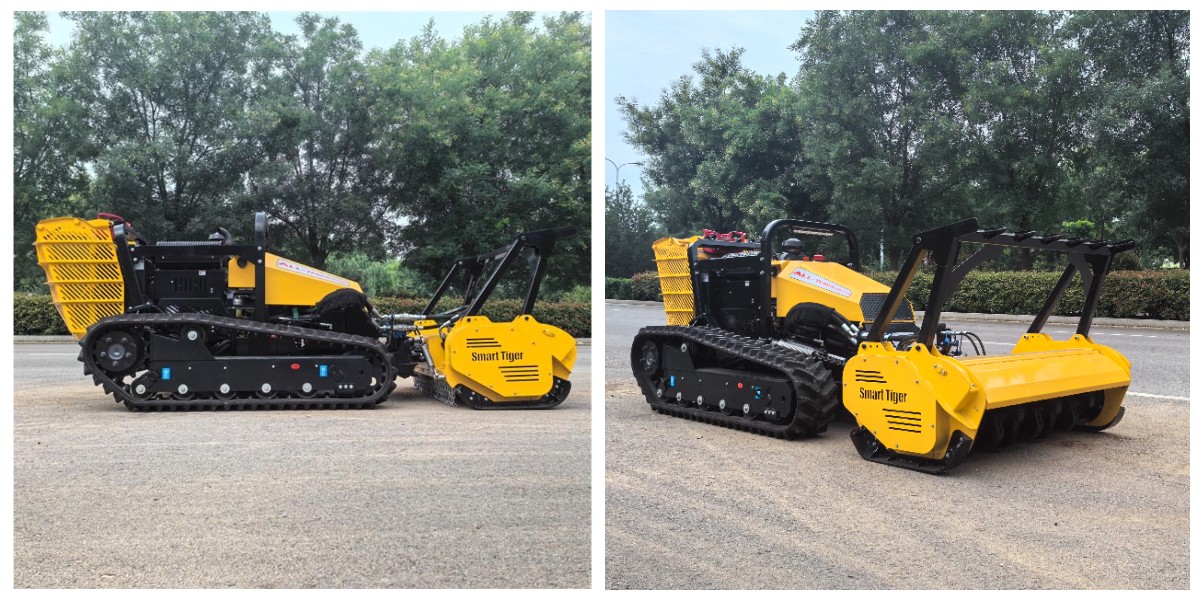

The Hydraulic Mower—an advanced heavy duty remote control lawn mower and Tracked Remote Control Lawn Mower—is built for durable, efficient vegetation management.
Powered by a YANMAR diesel engine and sophisticated hydraulic system, it enables precise control over movement, cutting attachments, and tracks. Its reinforced rubber tracks (core of the Tracked Remote Control Lawn Mower) ensure stability on slopes up to 55°; adjustable rotor speeds and versatile tools handle grass, shrubs, and 100mm-diameter small branches.
Equipped with full safety protections and a 150m+ range remote control, this equipment excels on lawns, orchards, roadside greenery, and steep/challenging terrains.
Product Details

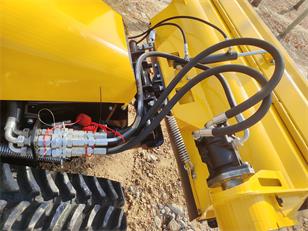

Equipped with Continental (Germany) or Yokohama (Japan) hydraulic hoses for durability and reliability. |
| Fitted with heavy-duty rubber tracks featuring reinforced anti-slip treads for enhanced traction and stable mobility. |
|
| Dual-direction fan system with integrated cooling ensures optimal temperature control and automatic dust removal. |
| Remote-controlled mulching head with stepless speed adjustment and seamless forward/reverse rotation switching. |
Technical Parameters
Parameter | Specification | Parameter | Specification |
Model | HYZH-40 | Pressure | 250bar |
Engine Brand | YANMAR | Headlight | LED |
Fuel | Diesel | Tool Rotation Speed | 2500rpm |
Fuel Tank Capacity | 28L | Tool Rotation Direction | Forward and reverse (bidirectional 0-100% stepless adjustable) |
Torque | 107.1Nm | Control of Attachment Front Cover Opening/Closing | Remote control |
Fuel Injection Method | Direct injection | Tool Material | Tungsten steel |
Rated Power | 28.2Kw | Working Width | 1200mm |
Transmission Mode | Hydrostatic precision control | Number of Tools | 27 |
Cooling Method | Oil-air hybrid cooling | Crushing Diameter | 100mm |
Vertical Obstacle Crossing Height | 500mm | Forearm Lifting Height | -200mm to 500mm |
Wading Depth | 500mm | Supported Slope | Meets working conditions with a slope angle of 55° |
Departure Angle | 30° | Dimensions | 3230mm × 1450mm × 1420mm |
Straight-line Deviation Angle | 0.3% | Self-weight | 1840kg |
Topsoil Backfilling Depth | 20mm | Maximum Traction Force | 25KN |
Working Distance of Remote Control System | >150m | Ground Clearance | 170mm |
Allowed Operating Inclination Angle | 60° in any direction (after engine optimization) | Attachment Terrain Matching | Yes (matches terrain undulations within ±10°) |
Hydraulic Pump | Piston pump + gear pump | Steering | Skid steering, supporting in-place steering |
Drive Motor | High-torque motor | System Allowed Operating Inclination Angle | ≥80° in any direction (after hydraulic system optimization) |
Hydraulic Tank Capacity | 26L (40L in the system) | Hydraulic Flow of Reclamation Attachment | 84L/min |
Stepless Speed Control | Working speed: forward/reverse 0-4 Km/h; Transfer speed: forward/reverse 0-10.2 Km/h | Parking Mode | Remote control. The parking switch ensures stable parking of the equipment. The parking knob enables on-site parking and electronic handbrake function, effectively ensuring safety, preventing sliding, and avoiding safety accidents caused by misoperation. |
Rubber Track (Standard) | High-tooth rubber track (supports 55° slope working conditions). Special working condition rubber track with teeth twice as high as ordinary/common tracks on the market, achieving strong grip, friction, and adaptability to various terrains | Proportional Joystick | Supports joystick direction switching for convenient operation when driving with the front or rear of the machine forward. Direction switching (forward/reverse) can be realized via the knob switch, which is more efficient without the need for U-turn. |
Frequency | 2.4G | Battery | 2 built-in rechargeable lithium batteries per unit, supporting self-charging |

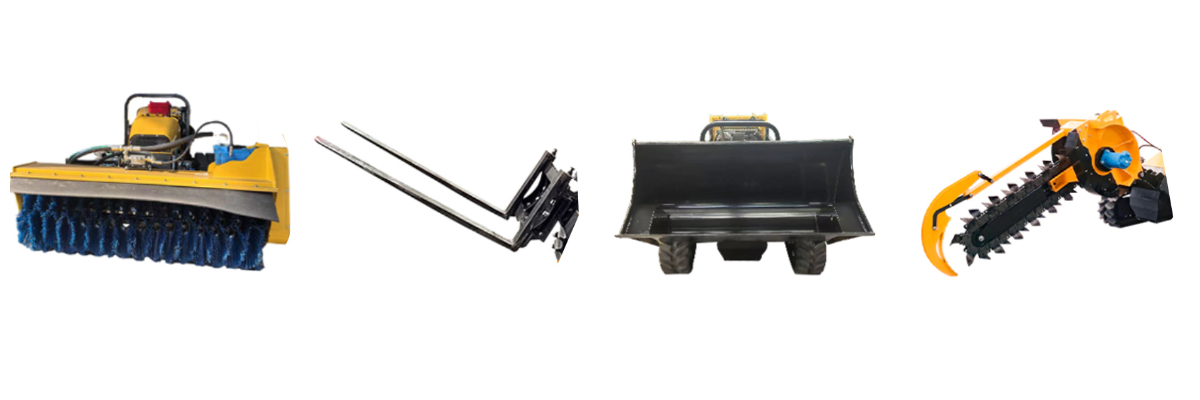

Optional Attachments
Application Scenarios
The following scenarios apply to our heavy duty remote control lawn mower—with the Best Mower For a Hill as a specialized option for sloped terrain:
Urban Greening: Maintains parks, greenways, and roadside slopes (the Best Mower For a Hill excels here).
River & Flood Dike Maintenance: Removes vegetation to protect embankments and ensure flood safety.
Highway & Railway Slope Clearing: Manages slopes along transport corridors (ideal for the Best Mower For a Hill).
Agricultural Slope Maintenance: Clears farmland and orchard edges.
Mountain & Forest Land Management: Cuts grass and reclaims land in rugged terrain.
Power Line & Hazard Zone Control: Enables safe clearing in restricted/dangerous areas.
Packaging & Shipping
Packaging Process for the Hydraulic Mower (Heavy Duty Remote Control Lawn Mower)
To guarantee every Hydraulic Mower—a robust heavy duty remote control lawn mower—reaches its destination in perfect working order, we follow a meticulous multi-layered packaging process:
Dust & Moisture Protection: Each heavy duty remote control lawn mower is tightly wrapped in transparent film to shield against dust, moisture, and minor surface damage.
Palletized Base for Easy Handling: The heavy duty remote control lawn mower is mounted on durable wooden pallets, enabling safe forklift use and smooth loading/unloading at ports, warehouses, or job sites.
Reinforced Wooden Crates: For long-distance/international shipping, the palletized heavy duty remote control lawn mower is enclosed in heavy-duty wooden crates, protecting against impacts, compression, and transport stresses.
This approach ensures the heavy duty remote control lawn mower arrives in perfect condition, fully protected, and ready for immediate operation.

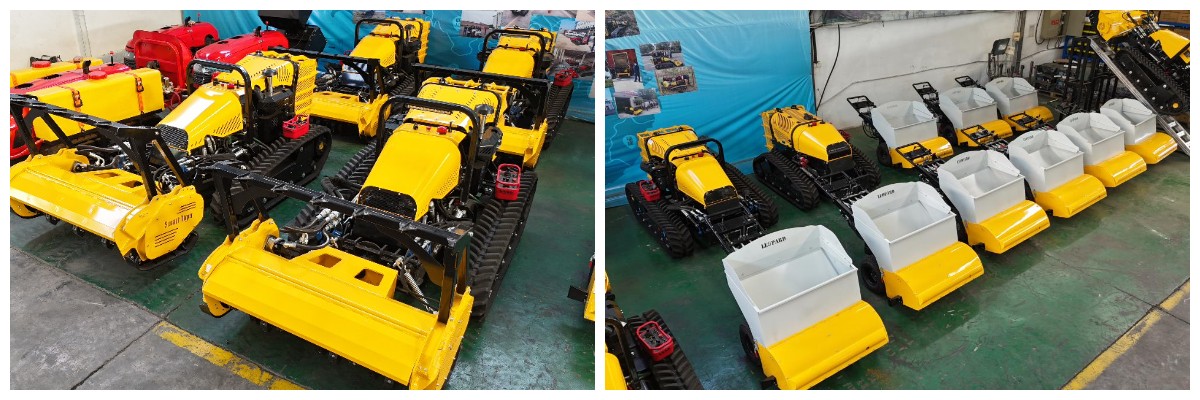

Company Profile
Qingdao Huaying Intelligent Equipment Co., Ltd.
Qingdao Huaying Intelligent Equipment Co., Ltd., a subsidiary of Shandong Hongchuan Machinery Manufacturing Co., Ltd., focuses on R&D, production, and sales of small-to-medium-sized intelligent machinery—including the heavy duty remote control lawn mower.
Leveraging strong technical capabilities and a solid regional industrial base, we provide efficient, versatile, easy-to-use solutions (such as the heavy duty remote control lawn mower) for gardens, roads, orchards, and other scenarios.
Committed to quality and innovation, our equipment (including the heavy duty remote control lawn mower) enhances productivity, supports sustainability, and delivers reliable performance in real-world operations.
Why Choose Us?
Qingdao Huaying Intelligent Equipment: Remote Forestry Mulcher (Heavy Duty Remote Control Lawn Mower)
At Qingdao Huaying Intelligent Equipment, we blend industry expertise with advanced engineering to design high-performance machines—including our Remote Forestry Mulcher, a robust heavy duty remote control lawn mower—built for rugged terrains, steep slopes, and demanding workloads, with full remote control for top safety and efficiency.
Backed by reliable manufacturing, innovation, and field insight, this heavy duty remote control lawn mower delivers:
Dual safety systems + automatic shutdown for stable extreme-incline operation;
High-efficiency tungsten blade mulching with strong landscape adaptability;
Quick tool-free attachment changes for multi-task workflow;
Smart diagnostics + real-time monitoring for hassle-free use;
Low-maintenance, transport-ready design to cut downtime.
For land clearing, vegetation control, or ecological restoration, this heavy duty remote control lawn mower maximizes output with minimal risk—making jobs safer, faster, and more efficient.
