High horsepower remote control lawn mower
The remote-controlled mower for hills and Tracked Remote Control Lawn Mower (with tracked stability for diverse terrains) share core strengths for safe, efficient vegetation management:
Slope Adaptability: Remote-controlled mower for hills handles ≤55° slopes (advanced lubrication for smooth performance); Tracked Remote Control Lawn Mower complements with tracked traction, excelling on mild slopes and uneven lawns.
Product Introduction
Both the hydraulic remote-controlled mower for hills and Tracked Remote Control Lawn Mower are robust solutions for terrain-adapted vegetation management:
Power & Control: Both use YANMAR diesel engines + advanced hydraulic systems for precise control over movement, cutting tools, and track operation.
Terrain Adaptability: Hill mower handles ≤55° slopes (reinforced high-tooth rubber tracks for traction); Tracked Remote Control Lawn Mower relies on tracked chassis for stability on lawns, mild slopes, and uneven greenery.
Cutting Capability: Hill mower cuts grass/shrubs/≤100 mm branches (adjustable rotor speeds, interchangeable tools); Tracked model delivers efficient, neat lawn cutting for general green areas.
Safety & Range: Both have full safety protections; hill mower offers >150 m remote range—ensuring reliable performance across hillsides, orchards, roadsides, and lawns.
Product Details
Fitted with premium hydraulic hoses from Continental (Germany) or Yokohama (Japan), ensuring dependable operation and long-lasting durability. |

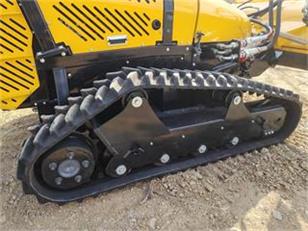

| Equipped with robust rubber tracks with reinforced anti-slip treads, delivering superior traction and stable movement across various terrains. |
|

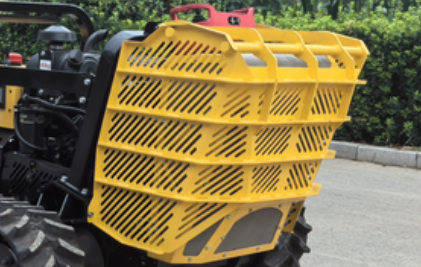

| The built-in dual-direction fan system provides precise temperature regulation while automatically clearing dust, ensuring continuous and efficient operation. |
| Remote-controlled mulching head featuring continuous speed adjustment and effortless forward/reverse rotation switching. |
Technical Parameters
Parameter | Specification | Parameter | Specification |
Model | HYZH-40 | Pressure | 250bar |
Engine Brand | YANMAR | Headlight | LED |
Fuel | Diesel | Tool Rotation Speed | 2500rpm |
Fuel Tank Capacity | 28L | Tool Rotation Direction | Forward and reverse (bidirectional 0-100% stepless adjustable) |
Torque | 107.1Nm | Control of Attachment Front Cover Opening/Closing | Remote control |
Fuel Injection Method | Direct injection | Tool Material | Tungsten steel |
Rated Power | 28.2Kw | Working Width | 1200mm |
Transmission Mode | Hydrostatic precision control | Number of Tools | 27 |
Cooling Method | Oil-air hybrid cooling | Crushing Diameter | 100mm |
Vertical Obstacle Crossing Height | 500mm | Forearm Lifting Height | -200mm to 500mm |
Wading Depth | 500mm | Supported Slope | Meets working conditions with a slope angle of 55° |
Departure Angle | 30° | Dimensions | 3230mm × 1450mm × 1420mm |
Straight-line Deviation Angle | 0.3% | Self-weight | 1840kg |
Topsoil Backfilling Depth | 20mm | Maximum Traction Force | 25KN |
Working Distance of Remote Control System | >150m | Ground Clearance | 170mm |
Allowed Operating Inclination Angle | 60° in any direction (after engine optimization) | Attachment Terrain Matching | Yes (matches terrain undulations within ±10°) |
Hydraulic Pump | Piston pump + gear pump | Steering | Skid steering, supporting in-place steering |
Drive Motor | High-torque motor | System Allowed Operating Inclination Angle | ≥80° in any direction (after hydraulic system optimization) |
Hydraulic Tank Capacity | 26L (40L in the system) | Hydraulic Flow of Reclamation Attachment | 84L/min |
Stepless Speed Control | Working speed: forward/reverse 0-4 Km/h; Transfer speed: forward/reverse 0-10.2 Km/h | Parking Mode | Remote control. The parking switch ensures stable parking of the equipment. The parking knob enables on-site parking and electronic handbrake function, effectively ensuring safety, preventing sliding, and avoiding safety accidents caused by misoperation. |
Rubber Track (Standard) | High-tooth rubber track (supports 55° slope working conditions). Special working condition rubber track with teeth twice as high as ordinary/common tracks on the market, achieving strong grip, friction, and adaptability to various terrains | Proportional Joystick | Supports joystick direction switching for convenient operation when driving with the front or rear of the machine forward. Direction switching (forward/reverse) can be realized via the knob switch, which is more efficient without the need for U-turn. |
Frequency | 2.4G | Battery | 2 built-in rechargeable lithium batteries per unit, supporting self-charging |

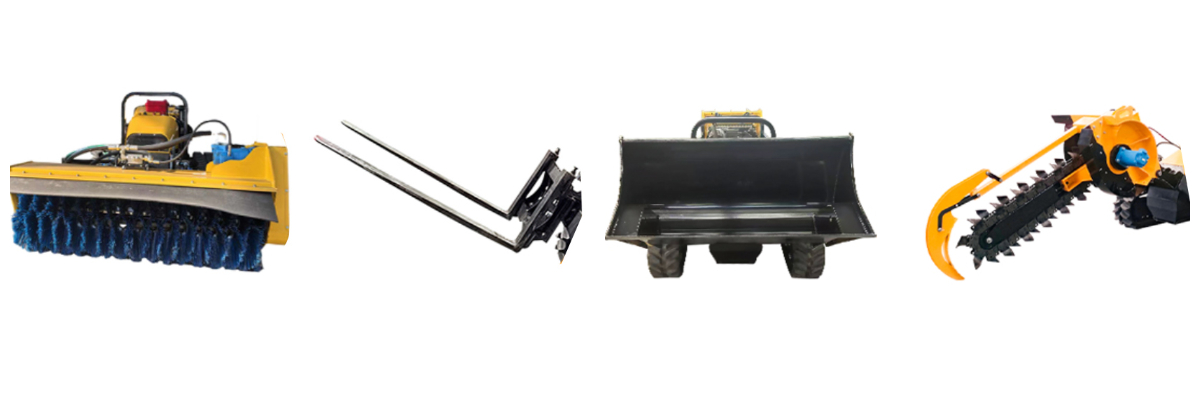

Optional Attachments
Application Scenarios
The remote-controlled hillside mower (for slope vegetation tasks) and Remote Forestry Attachment (specialized for forest-specific operations) deliver value across diverse scenarios:
Urban Greening: Hillside mower maintains parks/greenways/roadside slopes; Remote Forestry Attachment supports vegetation care in urban forest patches.
River & Flood Dike Maintenance: Both clear embankment growth to boost slope stability and flood prevention.
Highway & Railway Slope Management: Safely trim vegetation along steep transport corridors (highways/railway embankments).
Agricultural Slope Maintenance: Hillside mower controls weeds on sloped farmland/orchard edges (no crop damage); Remote Forestry Attachment aids vegetation management in orchard-forest transition areas.
Mountain & Forest Land Management: Hillside mower handles grass cutting/land reclamation; Remote Forestry Attachment enhances efficiency for forest-specific tasks (e.g., small branch clearing) in rugged terrain.
Power Line & Hazard Zone Control: Enable safe vegetation management in restricted/hazardous slopes—keeping operators away from risks.
Packaging & Shipping
To ensure the remote-controlled hillside mower and Remote Control Mower With Tracks arrive flawless and ready for use, we apply a comprehensive multi-layer packaging system:
Dust & Moisture Shield: Each unit is wrapped in transparent protective film to guard against dust, moisture, and minor transit scratches.
Sturdy Pallet Base: Both machines are mounted on heavy-duty wooden pallets for safe forklift handling and smooth loading/unloading at ports, warehouses, or job sites.
Reinforced Wooden Crates: For long-distance or international shipping, palletized units are enclosed in robust crates to resist shocks, compression, and transport stresses.
This meticulous packaging guarantees both mowers reach destinations fully protected, damage-free, and ready for immediate operation.
Company Profile
A subsidiary of Shandong Hongchuan Machinery Manufacturing Co., Ltd., we focus on R&D, production, and sales of small-to-medium-sized intelligent machinery—including the remote controlled mower for hills and Slope lawn mower as key offerings.
Leveraging strong technical capabilities and a robust regional industrial base, we provide efficient, versatile, easy-to-use solutions (remote controlled mower for hills, slope lawn mower) for gardens, roads, orchards, and sloped-terrain applications.
Committed to quality and innovation, our equipment is designed to boost productivity, support sustainability, and deliver reliable performance in real-world operations.
Why Choose Us?
At Qingdao Huaying Intelligent Equipment, we blend deep industry expertise with advanced engineering to design field-ready machines—including our Remote Forestry Mulcher and remote controlled mower for hills. The mulcher suits rugged terrains/steep slopes, while the remote controlled mower for hills excels at safe, efficient vegetation management on hilly terrain; both prioritize performance and safety.
Backed by reliable manufacturing, continuous innovation, and field insight, our equipment (including the remote controlled mower for hills) delivers:
Dual safety systems + automatic shutdown for stable operation on extreme inclines;
High-efficiency mulching (mulcher) / hill-focused cutting (remote mower) with strong landscape adaptability;
Quick tool-free attachment changes to avoid workflow interruptions;
Smart diagnostics + real-time monitoring for hassle-free use;
Low-maintenance, transport-ready design to minimize downtime and maximize productivity.
For land clearing, vegetation control, or ecological restoration—especially on hilly terrain—the remote controlled mower for hills and our other intelligent equipment achieve maximum output with minimal risk, making every job safer, faster, and more efficient.
