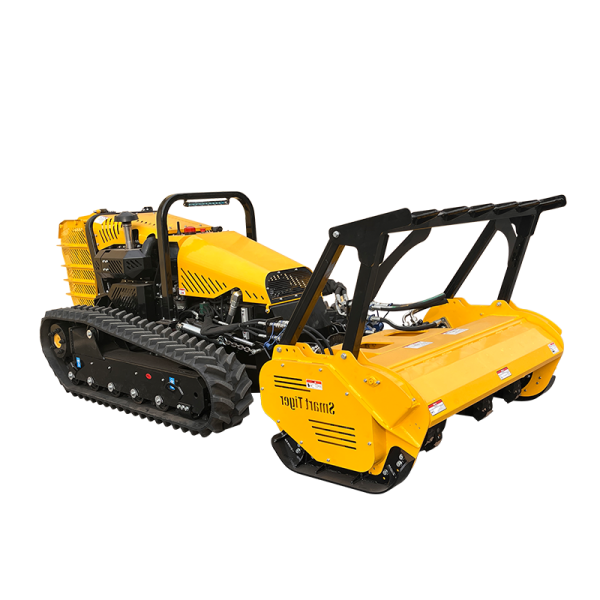

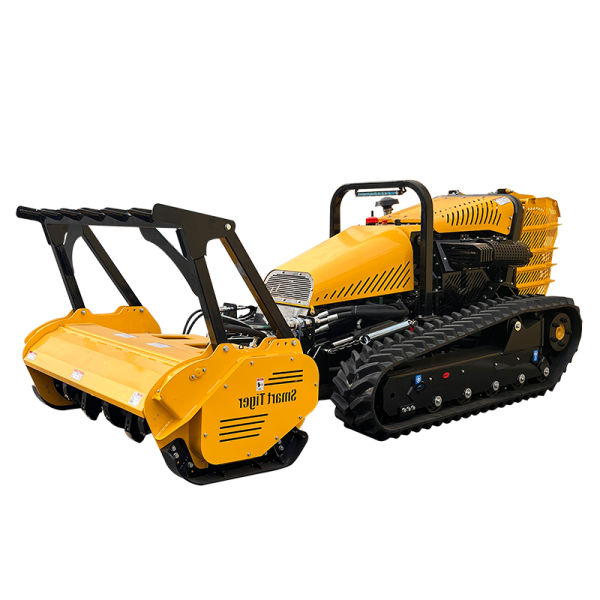

Lawn Mower Crawler Machine
The Remote Lawn Mower For Hills (remote-controlled mower for hills) boasts slope-optimized performance:
55° Slope Capacity: Advanced lubrication systems enable stable operation on hilly/uneven terrain.
Enhanced Stability: Anti-slip tracks + reinforced oil pan ensure reliable use even on steep slopes.
Product Introduction
The Remote Lawn Mower For Hills (hydraulic remote-controlled mower for hills) is a robust solution for safe, efficient steep-terrain vegetation management.
Powered by a YANMAR diesel engine + advanced hydraulic drive system, it enables precise control of movement, cutting attachments, and tracks. Its reinforced high-tooth rubber tracks ensure strong grip/stability on slopes up to 55°; adjustable rotor speeds and interchangeable tools handle grass, shrubs, and branches (up to 100mm diameter).
With full safety protections and 150m+ remote range, it delivers reliable performance across lawns, orchards, roadside greenery, and steep hilly environments.

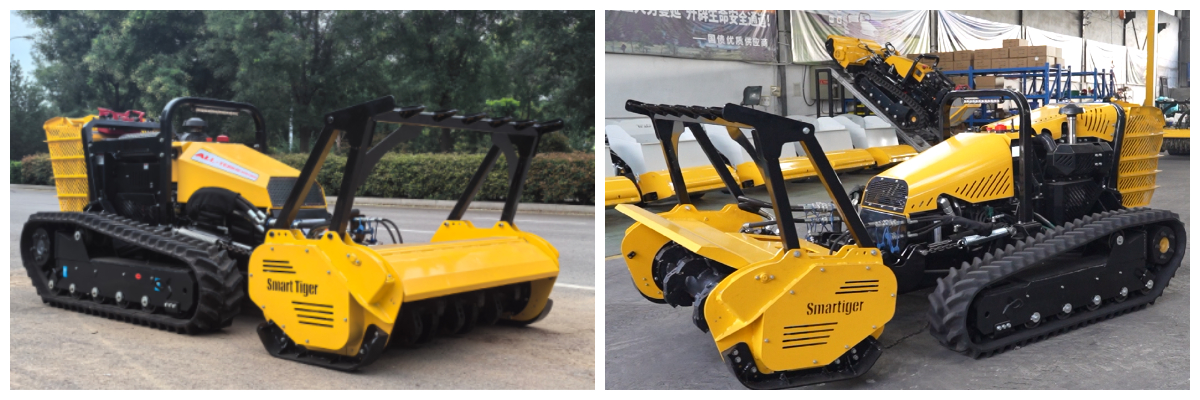

Product Details
Outfitted with hydraulic hoses from Continental (Germany) or Yokohama (Japan), ensuring long-lasting durability and dependable performance. |

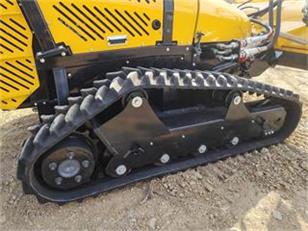

| Equipped with robust rubber tracks and reinforced anti-slip treads, delivering superior traction and stable movement across varied terrain. |
|
| The dual-direction fan system with built-in cooling provides precise temperature regulation while automatically clearing dust. |
| Remote-controlled mulching head featuring continuous speed adjustment and effortless switching between forward and reverse rotation. |
Technical Parameters
Parameter | Specification | Parameter | Specification |
Model | HYZH-40 | Pressure | 250bar |
Engine Brand | YANMAR | Headlight | LED |
Fuel | Diesel | Tool Rotation Speed | 2500rpm |
Fuel Tank Capacity | 28L | Tool Rotation Direction | Forward and reverse (bidirectional 0-100% stepless adjustable) |
Torque | 107.1Nm | Control of Attachment Front Cover Opening/Closing | Remote control |
Fuel Injection Method | Direct injection | Tool Material | Tungsten steel |
Rated Power | 28.2Kw | Working Width | 1200mm |
Transmission Mode | Hydrostatic precision control | Number of Tools | 27 |
Cooling Method | Oil-air hybrid cooling | Crushing Diameter | 100mm |
Vertical Obstacle Crossing Height | 500mm | Forearm Lifting Height | -200mm to 500mm |
Wading Depth | 500mm | Supported Slope | Meets working conditions with a slope angle of 55° |
Departure Angle | 30° | Dimensions | 3230mm × 1450mm × 1420mm |
Straight-line Deviation Angle | 0.3% | Self-weight | 1840kg |
Topsoil Backfilling Depth | 20mm | Maximum Traction Force | 25KN |
Working Distance of Remote Control System | >150m | Ground Clearance | 170mm |
Allowed Operating Inclination Angle | 60° in any direction (after engine optimization) | Attachment Terrain Matching | Yes (matches terrain undulations within ±10°) |
Hydraulic Pump | Piston pump + gear pump | Steering | Skid steering, supporting in-place steering |
Drive Motor | High-torque motor | System Allowed Operating Inclination Angle | ≥80° in any direction (after hydraulic system optimization) |
Hydraulic Tank Capacity | 26L (40L in the system) | Hydraulic Flow of Reclamation Attachment | 84L/min |
Stepless Speed Control | Working speed: forward/reverse 0-4 Km/h; Transfer speed: forward/reverse 0-10.2 Km/h | Parking Mode | Remote control. The parking switch ensures stable parking of the equipment. The parking knob enables on-site parking and electronic handbrake function, effectively ensuring safety, preventing sliding, and avoiding safety accidents caused by misoperation. |
Rubber Track (Standard) | High-tooth rubber track (supports 55° slope working conditions). Special working condition rubber track with teeth twice as high as ordinary/common tracks on the market, achieving strong grip, friction, and adaptability to various terrains | Proportional Joystick | Supports joystick direction switching for convenient operation when driving with the front or rear of the machine forward. Direction switching (forward/reverse) can be realized via the knob switch, which is more efficient without the need for U-turn. |
Frequency | 2.4G | Battery | 2 built-in rechargeable lithium batteries per unit, supporting self-charging |

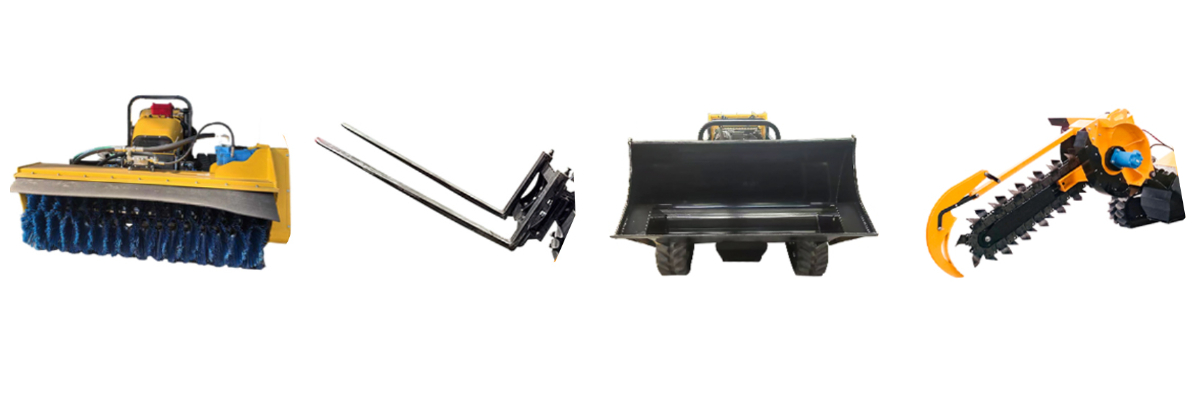

Optional Attachments
Application Scenarios
The remote-controlled mower for hills and Forestry Mower serve diverse sloped/rugged-area vegetation management needs:
Urban Greening: Remote hill mower maintains parks, greenways, and roadside slopes (sloped urban green spaces).
River/Flood Dike Care: Remote hill mower clears embankment vegetation (protects dikes, ensures flood safety).
Highway/Railway Slopes: Remote hill mower safely manages vegetation along transport corridors (steep slopes).
Agricultural Slopes: Remote hill mower controls vegetation on farmland/orchard edges (no crop damage).
Mountain/Forest Management: Remote hill mower handles grass cutting/land reclamation; Forestry Mower specializes in rugged forest-area vegetation control.
Power Line/Hazard Zones: Both enable safe clearing in restricted/hazardous sloped areas (keeps operators distant from risks).

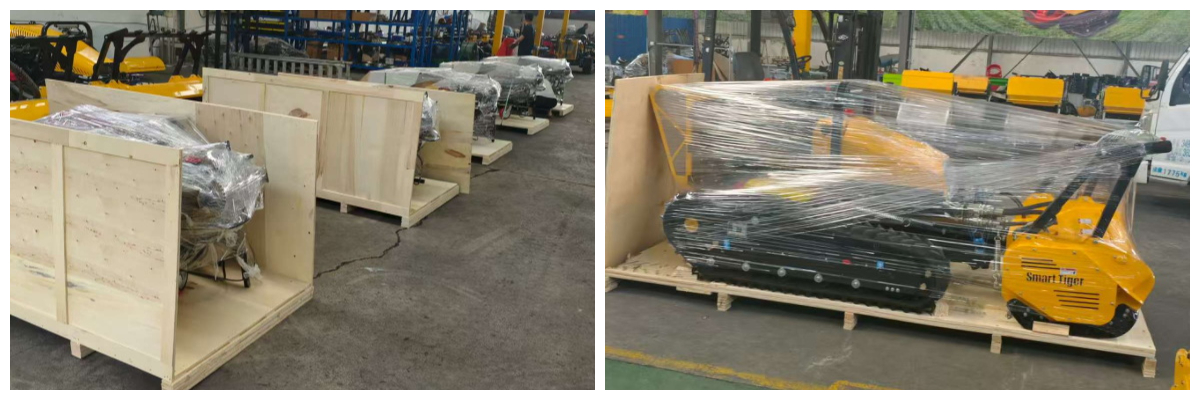

Packaging & Shipping
To ensure the remote-controlled mower for hills and Forestry Brush Mulcher arrive safely in perfect working condition, we use a rigorous multi-layer packaging process:
Dust & Moisture Protection: All units are tightly wrapped in transparent protective film to shield from dust, moisture, and minor transit scratches.
Palletized Base: Machines are mounted on sturdy wooden pallets for safe forklift handling and smooth loading/unloading at ports, warehouses, or job sites.
Reinforced Wooden Crates: For long-distance/international shipments, palletized units are enclosed in heavy-duty wooden crates to defend against impacts, compression, and transport stresses.
This system guarantees both machines arrive fully protected, damage-free, and ready for immediate use.
Company Profile
Qingdao Huaying Intelligent Equipment Co., Ltd.—a subsidiary of Shandong Hongchuan Machinery Manufacturing Co., Ltd.—focuses on R&D, production, and sales of small-to-medium-sized intelligent machinery, with remote controlled mower for hills and Forestry Brush Mulcher as key offerings.
Leveraging strong technical capabilities and a robust regional industrial base, we provide efficient, versatile, easy-to-use solutions (including the two above models) for gardens, roads, orchards, sloped terrain, and forestry scenarios.
Committed to quality and innovation, our equipment is designed to boost productivity, support sustainability, and deliver reliable real-world performance.
Why Choose Us?
At Qingdao Huaying Intelligent Equipment, we blend industry expertise and advanced engineering to deliver field-ready machines—including the Remote Forestry Mulcher, remote controlled mower for hills, Forestry Brush Mulcher, and Control lawn mowing robot (automated for precise lawn care).
Mulcher: Handles rugged/steep terrain; hill mower: Safe hilly vegetation management; Forestry Brush Mulcher: Specialized forest brush clearing; Control lawn mowing robot: Automated, precise lawn maintenance. All prioritize performance and safety.
Backed by reliable manufacturing, innovation, and field insight, all equipment offers:
Dual safety systems + automatic shutdown (stable on extreme inclines; robot adds automated safety protocols);
Specialized performance (mulching, hill cutting, brush clearing, robot for precision lawn mowing) with strong adaptability;
Quick tool-free attachment changes (no workflow interruptions);
Smart diagnostics + real-time monitoring (hassle-free use);
Low-maintenance, transport-ready design (minimize downtime).
