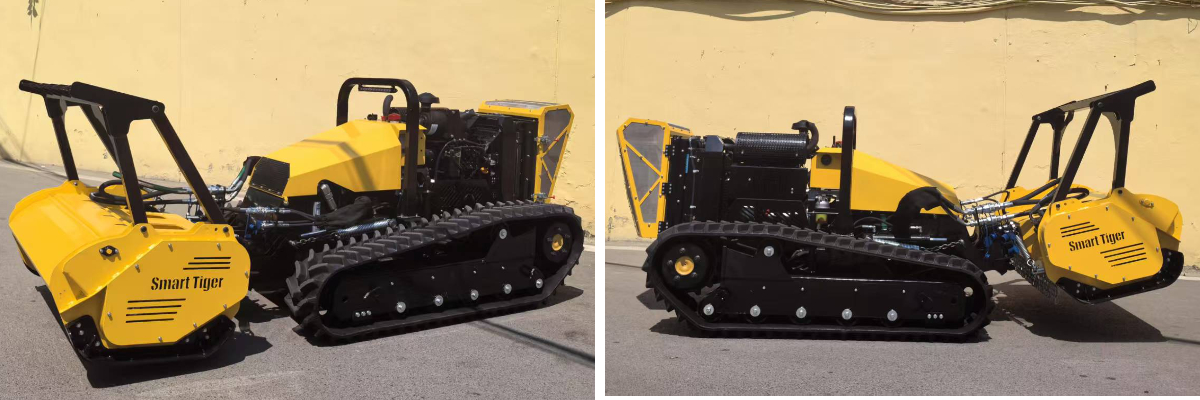

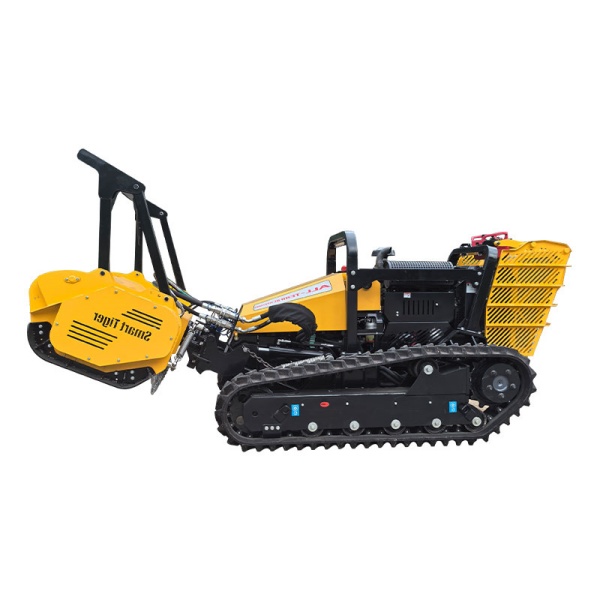

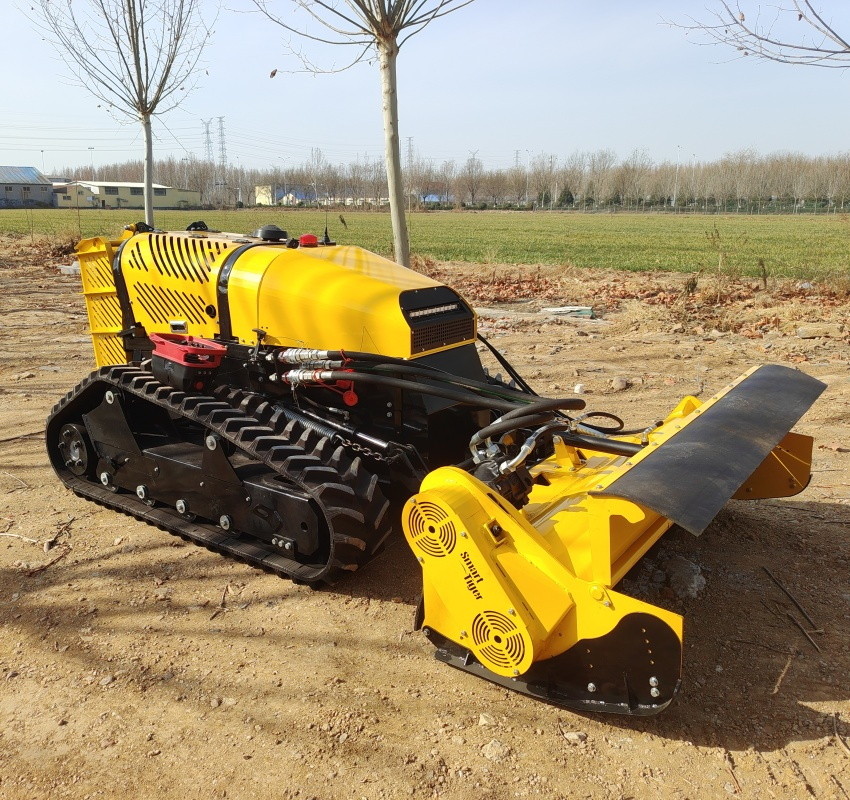

Robot Lawn Mower With Remote Control
Robot Lawn Mower with Remote Control - High-Performance Specifications
This remote-controlled robotic lawn mower is engineered for demanding outdoor operation, combining powerful performance with precise wireless handling.
Engine: YANMAR 3-cylinder diesel engine, compliant with European Stage III emission standards.
Type: 4-cycle, inline, water-cooled.
Rated Output: 28.2 kW (38.3 hp) @ 2600 rpm.
Self-Cleaning System: Manual as standard; automatic available optionally.
Product Introduction
Remote-Controlled Forestry Mulcher: Advanced Robotic Land Management Solution
This high-performance remote-controlled forestry mulcher is engineered for challenging land clearing and vegetation management tasks. It integrates a robust YANMAR diesel engine with an intelligent hydraulic transmission system for reliable operation.
Built to excel in demanding conditions, the mulcher provides precise wireless control, exceptional maneuverability, and efficient mulching power. It maintains stable and productive performance on steep slopes, uneven ground, and in sensitive wetland areas, ensuring both high output and operational safety.
Featuring a durable chassis, a proportional 2.4GHz remote system with a range exceeding 150 meters, and a high-torque hydraulic drive, this machine is perfectly suited for forestry management, right-of-way maintenance, orchard and vineyard care, and ecological rehabilitation projects.
Key Specifications:
Engine: 28.2kW YANMAR 3-cylinder water-cooled diesel.
Control: Wireless remote with >150m range, featuring proportional joysticks.
Slope Operation: Capable of working on gradients up to 55° with integrated tilt alarm and safety shut-off.
Drive System: Independent closed-circuit hydrostatic track drive for superior traction.
Track: Reinforced rubber tracks for minimal ground disturbance and high grip.
Working Width: 1500mm (with standard flail mower head).
Product Details
Equipped with Continental (Germany) or Yokohama (Japan) hydraulic hoses for durability and reliability. |
| Fitted with heavy-duty rubber tracks featuring reinforced anti-slip treads for enhanced traction and stable mobility. |
|
| Dual-direction fan system with integrated cooling ensures optimal temperature control and automatic dust removal. |
| Remote-controlled mulching head with stepless speed adjustment and seamless forward/reverse rotation switching. |
Technical Parameters
Model | Smartiger | |
ENGINE | ||
Maker | YANMAR 3-cylinder(European III emission standard) | |
Type | 4-cycle, Inline, Water-cooled Diesel | |
Fuel tank capacity | 28 litres | |
Gross output | 28.2Kw (38.3Hp) @2600rpm | |
Self-cleaning(optional) | Standard manual and automatic (optional) | |
HYDRAULICS | ||
Pumps | 3-tandem piston pump + 2 gear pump | (Bondioli & Pavesi) |
Driving motors | High torque motor | (Poclain) |
Flail mower motor | High speed motor | (Danfoss) |
Independent flail head circuit | Closed circuit piston | |
Independent track drive circuit | 2x closed circuit piston | |
Independent motions circuit | Opend circuit gear | |
TRACKS | ||
Rubber | Hieghtened teeth rubber track (max working angle 55°) | |
REMOTE CONTROL | ||
Working range | >150m | |
Frequency | 2.4G | |
Battery | Interchageable, rechargeable | |
Two with each unit charge on machine | ||
Propotional Joysticks | Standard | |
DIMENSIONS | ||
Overall width (with flail mower) | 1500mm | |
Overall width (with flail mower) | 2900mm | |
Overall height (with flail mower) | 1300mm | |
WEIGHT | ||
Smartiger | 1250Kg | |
380kgs | ||
PERFORMANCE | ||
Gradient | Working on slopes up to 55° in any direction | |
(alarm at 50° and automatic shut-off at 55°) | ||
Potentiometer speed | 1st gear (low range) |
control (0 to 100%) | Forward and backward 0-4 Km/h |
2nd gear (high range) | |
Forward and backward 0-10.2 Km/h | |
Parking | Yes |
Steering | Skid-steering (support pivot-steering) |
Travelling bias correction | Yes |
Cruise Control System | Yes(One click release) |
PROTECTION AND SAFETY | |
Emergency stop | One-touch shut-off switch |
Over-slope | Automatic waring (Horn+Light) and shut-off |
Headlamp | LED |
Signal loss | Automatic shut-off |
Others | Automatic shut-off if hydraulic oil and lube |
pressure abnomaly | |
ATTACHMENT / FLAIL HEAD (STANDARD) | |
Standard attachment | Flail head |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 3000rpm |
Front and rear flap | Chain and rubber |
Flails | Y-Flails for grass cutting and light wood |
up to 30mm diameter | |
Rotor width | 1400mm |
Rotor diameter | Grass and shrubs ≤30mm |
Cutting height range | 30mm-90mm (3 positions) |
(via roller adjustment) | flail can be lifted to cut higher than 90mm |
Hydraulic lift | -200mm to 500mm |
Auto-float capacity | Yes (follow ground contour up-down 10°) |
ATTACHMENT / MULCHER | |
Oil flow | 84L/min |
Pressure | 250bar |
Rotor speed | 2500rpm |
Front and rear flap | Chain |
Mulcher width | 1200mm |
Mulcher diameter | ≤100mm |
ATTACHMENT/BRANCH CRUSHER | |
Weight | 260kg |
Max.crushing diameter | 120mm |
Dimensions | 1800 * 90 * 1300mm |
Output power | intelligently allocated hydraulic flow with the host |
Optional Attachments
Application Scenarios
Remote-Controlled Robotic Lawn Mower and Mulcher: Dual-Solution Applications
Our remote-controlled robotic lawn mower and dedicated mulcher are engineered as complementary systems for comprehensive land management across demanding environments.
Primary Applications:
Forestry & Land Clearing:
Robotic Mulcher: Effectively clears shrubs, undergrowth, and small trees up to 10cm in diameter.
Robotic Lawn Mower: Precisely trims and maintains grass on forest perimeters and access roads.
Orchard & Vineyard Maintenance:
Robotic Mulcher: Manages robust vegetation between tree rows, helping to control pests and moisture.
Robotic Lawn Mower: Keeps turf areas under and around trees neatly maintained with minimal compaction.
Land Reclamation & Development:
Robotic Mulcher: Prepares and levels rough, overgrown terrain for agricultural or construction use.
Robotic Lawn Mower: Provides final turf establishment and upkeep on graded and reclaimed surfaces.
Infrastructure & Right-of-Way Management:
Robotic Mulcher: Safely clears vegetation, including weeds and brush, from steep embankments, ditches, and utility corridors.
Robotic Lawn Mower: Maintains grassy shoulders, berms, and parks along roadsides and pipelines with a clean finish.
Environmental & Ecological Projects:
Robotic Mulcher: Selectively removes invasive plant species to aid habitat restoration.
Robotic Lawn Mower: Gently cares for grass in sensitive ecological zones, preserving soil integrity with its low-ground-pressure tracks.
Steep Terrain Operations:
Robotic Mulcher: Operates securely on extreme slopes up to 55° with its advanced stability system and rubber tracks.
Robotic Lawn Mower: Performs reliably on moderate to steep inclines, offering safe mowing where traditional equipment cannot.
Equipped with a powerful 28.2kW YANMAR diesel engine and a >150-meter wireless remote control, this robotic system ensures efficient, safe, and precise performance for professional landscaping, agriculture, and land management.
Packaging & Shipping
Secure Packaging and Shipping for Robotic Mowing Solutions
We ensure every remote-controlled forestry mulcher and robotic lawn mower arrives safely and ready for immediate use through our professional, multi-layered packaging process.
Our Protective Packaging:
Dustproof and Moisture-Resistant Film: Each machine is first encased in protective plastic film to safeguard against dust, moisture, and minor handling scratches during transit.
Stable Palletized Base: The equipment is securely mounted on heavy-duty wooden pallets. This ensures safe and efficient handling by forklifts during shipping and upon delivery to your site.
Reinforced Export Crating (for long-distance/international shipment): For maximum protection, each unit is housed within a custom-built, sturdy wooden crate. This robust outer shell shields the machinery from impacts, compression, and all shipping hazards.
This comprehensive packaging protocol minimizes transit risks, guaranteeing that your remote-controlled mulcher or robotic lawn mower is delivered in perfect condition and ready for immediate operation.
Company Profile
Qingdao Huaying Intelligent Equipment Co., Ltd. – Your Partner in Intelligent Land Management
Qingdao Huaying Intelligent Equipment Co., Ltd., a subsidiary of Shandong Hongchuan Machinery, is dedicated to the research, development, and production of high-quality, small-to-medium-sized intelligent machinery. Our core expertise lies in advanced track-driven remote control lawn mowers and specialized robotic solutions for diverse vegetation management needs.
Strategically located in Jining, China, our mission is to provide efficient, operator-friendly, and powerful equipment for professional applications such as landscaping, roadside and slope maintenance, orchard management, and environmental projects. Our range of track-mounted remote control mowers forms the cornerstone of our offering, engineered to deliver superior performance where conventional equipment cannot operate.
Supported by robust technical capabilities and a commitment to innovation, we equip our clients to overcome challenging terrain and demanding tasks with reliable, adaptable, and high-performance machinery. Our solutions, including the robust remote control lawn mower with tracks, are designed for precision, safety, and durability in real-world conditions.
Why Choose Us?
At Qingdao Huaying Intelligent Equipment, we integrate deep industry knowledge with advanced engineering to deliver robust and efficient machinery. Our product line features the Remote Forestry Mulcher and the track-driven remote control lawn mower, both engineered for demanding environments. Designed with fully wireless remote operation, they ensure optimal safety and productivity across challenging landscapes.
Built on a foundation of reliable manufacturing, ongoing innovation, and practical field experience, our equipment provides the following key advantages:
Enhanced Safety Systems: Dual safety protocols with automatic tilt shutdown for secure slope operation.
Superior Terrain Adaptability: The mulcher features durable tungsten steel blades, while the mower utilizes a low-ground-pressure tracked design for excellent stability on inclines.
Modular Functionality: Quick-attach system allows for fast interchange of tools to meet diverse operational needs.
Intelligent Operation: Integrated smart diagnostics and real-time monitoring for informed, worry-free use.
Service-Oriented Design: Simplified maintenance access and transport-ready dimensions minimize downtime and logistics costs.
Why Choose Qingdao Huaying?
For land clearing, vegetation control, or ecological restoration projects, our machinery is designed to maximize output while minimizing operational risks. We offer more than just equipment—we provide reliable, intelligent solutions backed by dedicated engineering support and a commitment to your project’s success. Choose us for performance you can trust, innovation that delivers, and a partnership focused on your productivity.
